Product Overview

Model#FT-05036-B-N-B,

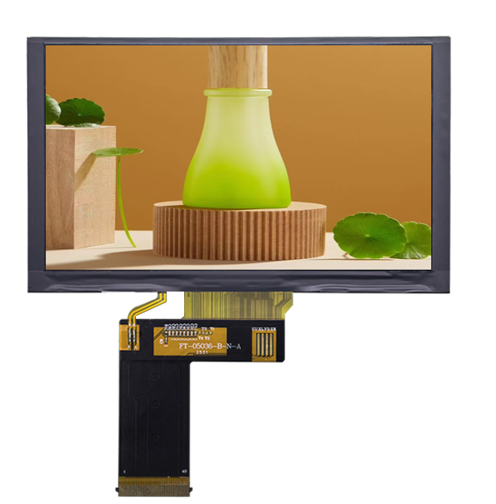

This 5.0 inch 800×480 IPS TFT module is built with ST72568 driver IC and a 40PIN RGB interface, featuring an ultra-wide operating temperature range of -30 to 80℃ and  high brightness of 2000 cd/m². especially designed for harsh environments, such as automotive applications.

 Automotive Electronics: All-Climate Display Solution for Vehicles

Use Cases: New energy vehicle dashboards, commercial vehicle navigation terminals, construction machinery displays

A commercial vehicle manufacturer upgraded its auxiliary display system by integrating this module into navigation and vehicle status terminals, successfully addressing the challenges of complex driving environments:

-30 to 80℃ Wide Temperature Range for Full Climate Adaptation

Whether in freezing northern winters (-30°C) or scorching southern summers where cabin temperatures can reach 75°C, the module starts quickly and displays reliably, meeting automotive-grade environmental reliability standards.

High Brightness for Sunlight Readability and Driving Safety

Under direct sunlight, the 2000 cd/m² high-brightness screen clearly shows navigation, speed, and warning information without requiring the driver to adjust their viewing angle. At night, it automatically dims to avoid glare.

Plug-and-Play Interface for Easy Integration

The standard 40PIN RGB interface connects seamlessly with vehicle main control units. The mature compatibility of the ST72568 driver IC shortens development cycles and ensures stable, smooth display performance even on rough roads.

This solution has been widely adopted in long-haul trucks and special engineering vehicles, earning recognition from both manufacturers and drivers for its reliability.

Q&A

❓ Q: Can this module operate normally in extremely cold environments?

A: Absolutely. This 5.0 inch TFT LCD module supports reliable startup and operation at temperatures as low as -30°C. It is specifically designed for extreme climates, with no smearing or ghosting in low temperatures, ensuring immediate and clear display performance.

❓ Q: Does the 2000 cd/m² ultra-high brightness result in high power consumption?

A: We utilize high-efficiency LED backlighting and intelligent dimming technology. Compared to traditional solutions, power consumption is 15–20% lower at the same brightness level. The module also supports PWM dimming, which automatically adjusts brightness according to ambient light, saving energy and extending service life.

❓ Q: Does this 5.0 inch IPS TFT module support touch functionality?

A: The standard version is a display-only module. However, we offer integrated solutions with capacitive or resistive touchscreens, including multi-touch support, to meet interactive needs.

❓ Q: What are the minimum order quantity and lead time?

A: Samples are available for single-unit requests. The minimum order quantity for bulk orders is 2000 units.

Samples ship within 2-3 weeks, while bulk orders L/T will  4-5 weeks.

About this automotive-grade 5.0 inch TFT module, if you need further information on specifications, sample requests, or custom solutions, please feel free to contact us.
