Size :
5.0"Part No. :
FT-05036-B-N-BResolution :
800*480Viewing Angle :
FreeInterface :
RGBTouch Screen :
/Driver IC :
ST72558Temperature :
-30℃-80℃Brightness :
2000 cd/㎡Module Outline(mm) :
120.70*75.80*2.85A.A Size(mm) :
108.00*64.80The Model# FT-05036-B-N-B, is a industrial 5.0 inch TFT LCD display, with 800*480 resolution in landscape mode, Its A.A size is 108.0*64.80 mm (WxH), and module outline dimension is 120.70×75.80×2.85 mm. The 5.0 inch TFT LCD module is featured with extremely wide temperature range -30~80°C, and high brightness as 2000cd/m², especially designed for harsh environment applications such as industrial control, automotive equipment, medical instruments and outdoor displays It is built with ST72568 driver IC, supporting 40PIN RGB interface.

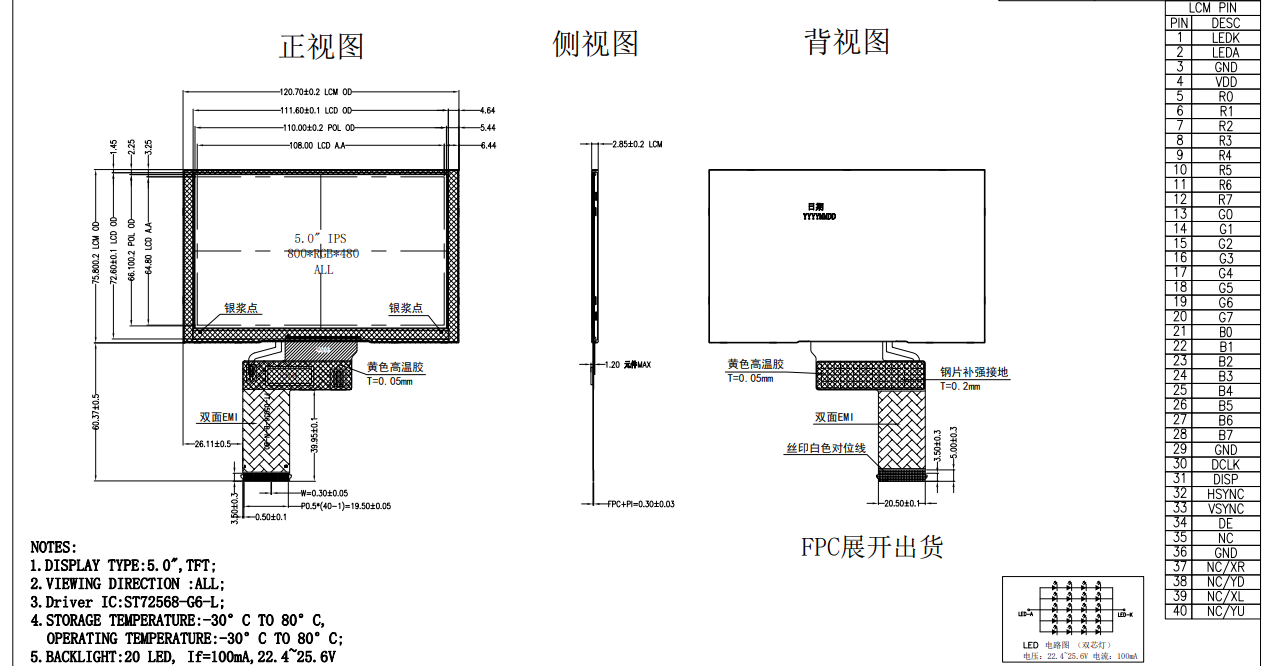

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-05036-B-N-B |
| 2 | LCD Size | 5.0 inch IPS TFT LCD |
| 3 | Resolution (Pixels) | 800(RGB)×480, WVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 108.0 × 64.8mm |
| 6 | Module Dimension | 120.7 × 75.8 × 2.85 mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 2000 cd/㎡ |
| 11 | Backlight | 20 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 14 | Touch Screen | Without touch, |
Features:
🌟 Excellent Display Performance
- 5.0 inch common size with 800*480 WVGA resolution: delicate picture, clear text and excellent detail presentation
- Wide-viewing-angle IPS panel: 178° wide viewing angle, consistent color from any angle without distortion
- 2000cd ultra-high brightness: still clearly visible under strong outdoor light, suitable for direct sunlight environments
🔌 Professional Interface & Driver
- ST72568 driver IC: efficient and stable signal processing, ensuring smooth display, mature technology and wide compatibility.
- 40PIN RGB interface: standard industrial interface, fast data transmission rate, and supports seamless docking with various main control boards
🛡️ Industrial-Grade Reliability
- Ultra-wide operating temperature range - stable operation at -30℃~80℃, adapting to extreme climate environments
- Shockproof and dustproof design: sturdy structure, adapting to industrial vibration and dust environments
- Long-life backlight: LED backlight life exceeds 50,000 hours, balancing high durability and reducing long-term maintenance costs.
Applications:
With the features of high resolution, wide-viewing angle, ultra-wide temperature range and ultra-high brightness, this 5.0 inch IPS TFT display can become the perfect display solution for industrial control, automotive display or outdoor smart terminals,
