7.0 inch HDMI TFT LCD 1024*600 7.0 inch Touch DIsplay HDMI/USB Interface

Size :
10.1"
Part No. :
FT-70WSV058-WCT
Resolution :
1024*600
Viewing Angle :
Free
Interface :
HDMI
Touch Screen :
CTP
Driver IC :
TBD
Temperature :
-20℃-70℃
Brightness :
800 cd/㎡
Module Outline(mm) :
165.30*121.00*7.95
A.A Size(mm) :
154.21*85.92

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Products Details

The 7.0 inch HDMI display module features a standard resolution of 1024RGB×600, equipped with an independent HDMI video input port and a dedicated USB touch port. Adopting a 5V USB single-line power supply design, it boasts simple wiring and plug-and-play performance. Compatible with Windows, Android and Linux operating systems, it serves as an optimal cost-effective all-in-one solution for compact visual touch display applications.

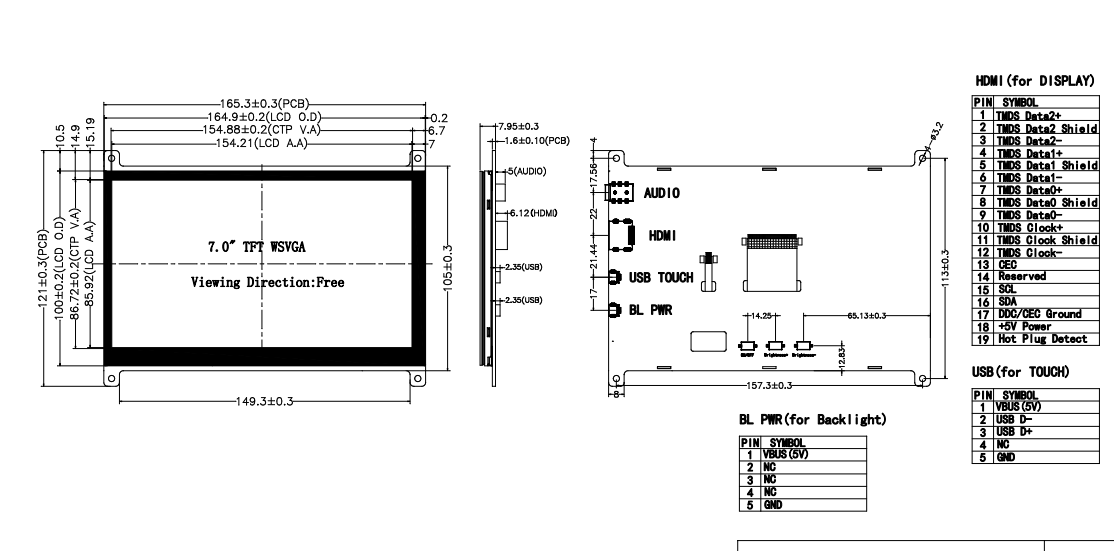

Product Drawing:

7.0 inch touch display module

Product Specification:

No.	Item	SPECIFICATION
1	Part No.	FT-70WSV058-WCT
2	Module Size	7.0 inch
3	Module Structure	7.0 inch TFT LCD Display+7.0 inch Touch + PCB
4	LCD Display Type	7.0 inch IPS TFT LCD, normally black, transmissive
5	Viewing Direction	Free
6	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
7	Resolution (Pixels)	1024(RGB)×600, WSVGA,
8	Display Mode	IPS, Normally Black, Transmissive
9	TFT LCD A.A	154.21 x 85.92mm
10	CTP V.A	154.88 x 86.72mm
11	Module Dimension	165.30 x 121.0 x 7.95mm
12	Module Interface	TFT LCD: HDMI interface
13	Module Interface	CTP Touch: USB interface
14	System Support	Win 7/Win 8/Win 10(Plug and play)
15	System Support	Android/Linux（need to be configured）
16	Power Supply	USB 5.0V
17	Temperature Range	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
18	Backlight Type	LED white

DC Characteristics:

Paramater of DC characteristics	Symbol	Min.	Typ.	Max.	Unit
PCB Operating Voltage	VUSB	-	5.0	-	V
LCD I/O Operating Voltage	VDD	3.0	3.3	-3.6	V
Input Voltage "H" level	VIH	0.7*VDD	-	VDD	V
Input Voltage "L" level	VIL	VSS	-	0.3*VDD	V
Output Voltage "H" level	VOH	VDD-0.4	-	VDD-	V
Output Voltage "L" level	VOL	VSS-	-	VSS+0.4	V

CTP Touch Characteristics:

Item of CTP chrracteristics	Specification	Unit	Remark
Panel Type	Glass Cover+Glass Sensor	-	-
Resolution	1024x600	pixel	-
Surface Hardness	6H	-	-
Transparency	≥82%	-	-
Interface Type	USB interface	-	-
Support Points	5(Max)	-	-
Supply voltage	3.3	V	-

Applications:

This 7.0 inch integrated HDMI touch TFT display adopts an all-in-one structure integrating LCD panel, G+G capacitive touch panel (CTP) and driver PCB. Featuring high integration, it saves customers the secondary lamination and hardware wiring processes. It is suitable for various scenarios including embedded development, industrial control equipment, Raspberry Pi, industrial main controllers, and equipment human-machine interfaces, etc.
