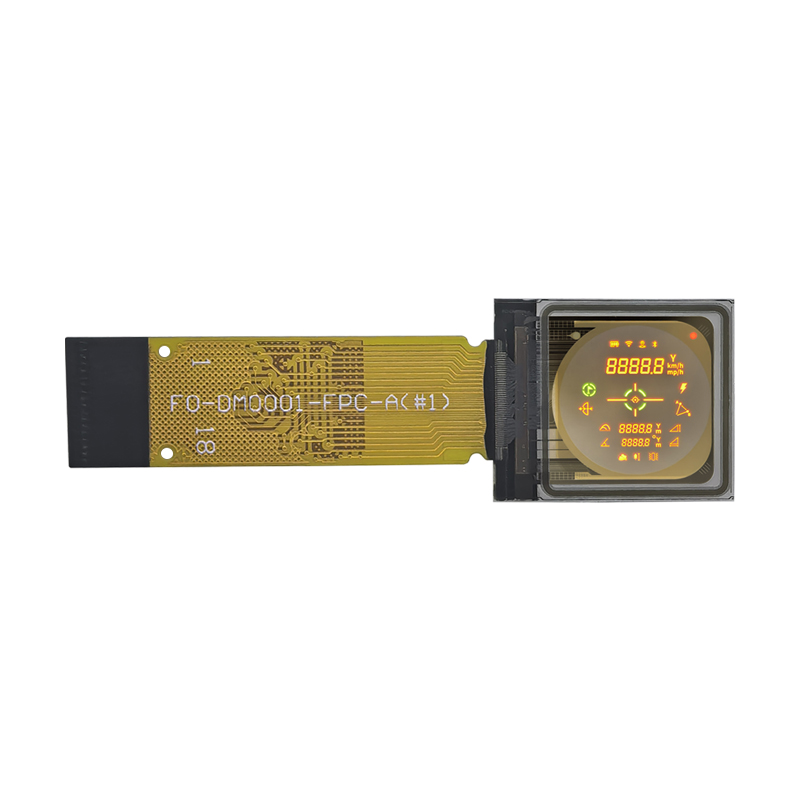

High Transmittance OLED Display Module for Optical Scope

Product Details:

This transparent OLED display module is specially developed for optical scope products such as sight scopes and laser rangefinders.

With transmittance above 70%, it preserves the optical path while overlaying measurement data onto the user’s field of view. Self-emissive OLED delivers crisp readouts without backlight. Low power design maximizes runtime for battery-powered devices. Optimized optical coating minimizes stray light and reflection. Compact structure fits limited space inside optical tubes.

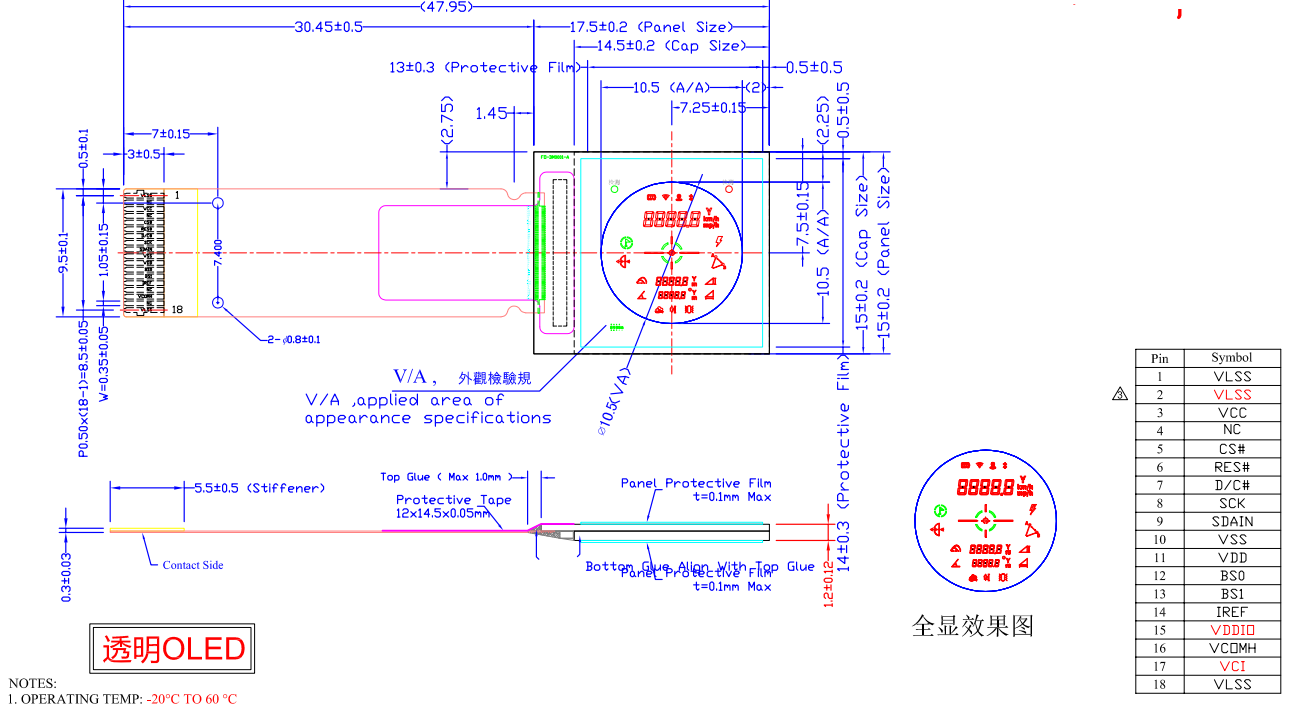

Product Drawing:

Features:

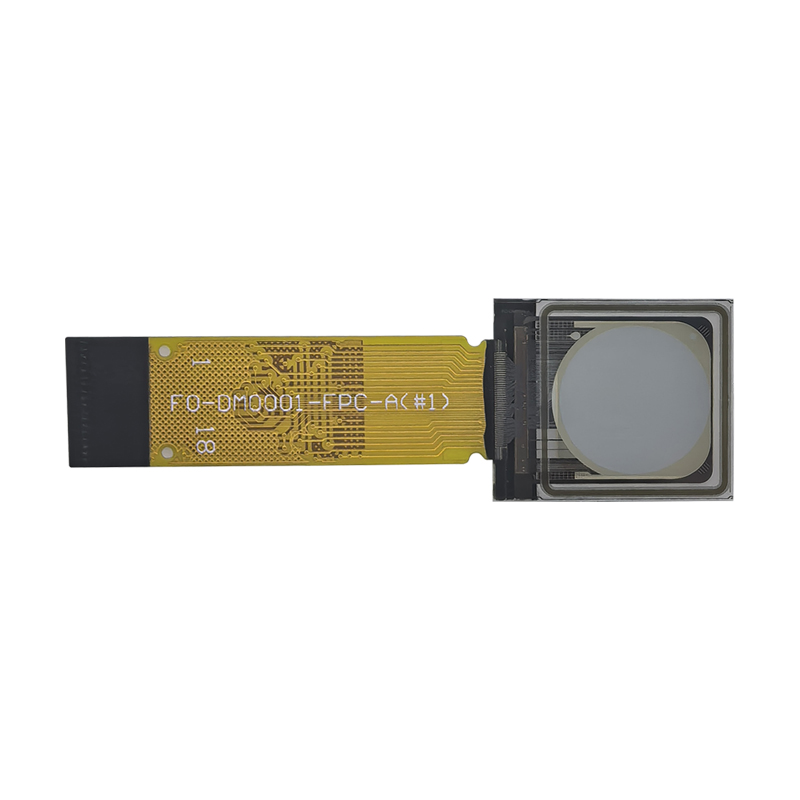

• High light transmittance ≥70%. Transparent when off, no obstruction to optical viewing. Digital data overlaid on real scene.
• OLED self-emissive technology, ultra-high contrast. Sharp digits & reticles, readable under bright daylight or low light.
• Low power consumption. Pixels turn off for black content, greatly extend battery life for portable optical instruments.
• Thin & compact form factor, easy to integrate inside optical tube. Anti-glare optical surface reduces stray light.
• Wide temperature & vibration resistance for outdoor applications.
• Customization available: size, resolution, brightness, interface, driver solution.

Applications:

Laser rangefinder, rifle scope, rangefinding scope, observation optical tube equipment.
