1.1 inch Graphic 96*96 OLED COG Module

1.1 inch OLED display

1.1 inch Graphic 96*96 OLED COG Module

  • Size :

    1.1"
  • Part No. :

    FO-969601-W-A
  • Resolution :

    96*96
  • Viewing Angle :

    Free
  • Interface :

    SPI
  • Touch Screen :

    /
  • Driver IC :

    SH1107G
  • Temperature :

    -40℃-70℃
  • Brightness :

    130 cd/㎡
  • Module Outline(mm) :

    25.49*29.10*1.45
  • A.A Size(mm) :

    19.65*19.65
  • Backlight Color :

    White

FO-969601-W-A is a Passive Matrix OLED Display, of resolution 96*96 dot matrix. Its Active Area Size 19.65 x 19.65mm as 1.1 inch OLED. The aspect ratio of Active Area is 1:1 as square shape, and the module outline dimension is 25.49 x 29.10 x 1.45mm. This 1.1 inch PMOLED is COG module, it is built-in driver IC SH1107G, with available SPI interface type.

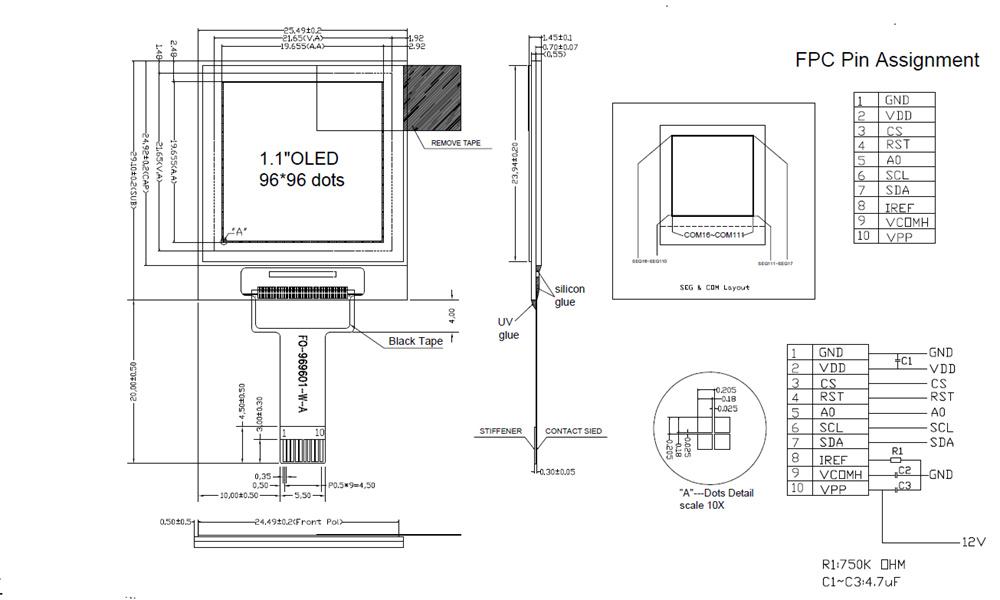

Product Drawing:



Product Specification:

No. Item SPECIFICATION
1 Display Mode Passive Matrix PMOLED / Negative/ Transmissive
2 Resolution (Pixels) 96*96
3 Model Size 25.49 x 29.10 x 1.45mm
4 Active Area 19.655 x 19.655mm, 1.1 inch OLED
5 Dot Pitch 0.205 x 0.205mm
6 Dot Size 0.18 x 0.18mm
7 Viewing Direction ALL
8 Display Color White
9 Driver IC SH1107G
10 Interface SPI
11 Operating Temp. -40 ~ 70 °C
12 Storage Temp. -40 ~ 85 °C



Features:

Square Display Area: The square design makes this 1.1 inch OLED display look more compact and delicate, creating an unique product appearance design aesthetics.

High Resolution: The 96*96 resolution makes the PMOLED display more content, whether it is text, icons, or images, providing a better visual effect and user experience.

Low Energy Consumption: OLED displays have self-luminous properties, enabling pixel-level brightness control, effectively reducing energy consumption and extending the battery life of devices.

High Contrast and Vivid Colors: OLED technology can present deep blacks and vivid colors with high contrast and color saturation, making the display content more vivid.



Applications:

The Model# FO-969601-W-A, 1.1inch OLED display, with square display area, high resolution, and compact size, is indeed very suitable for use in smartwatches and other wearable devices.
