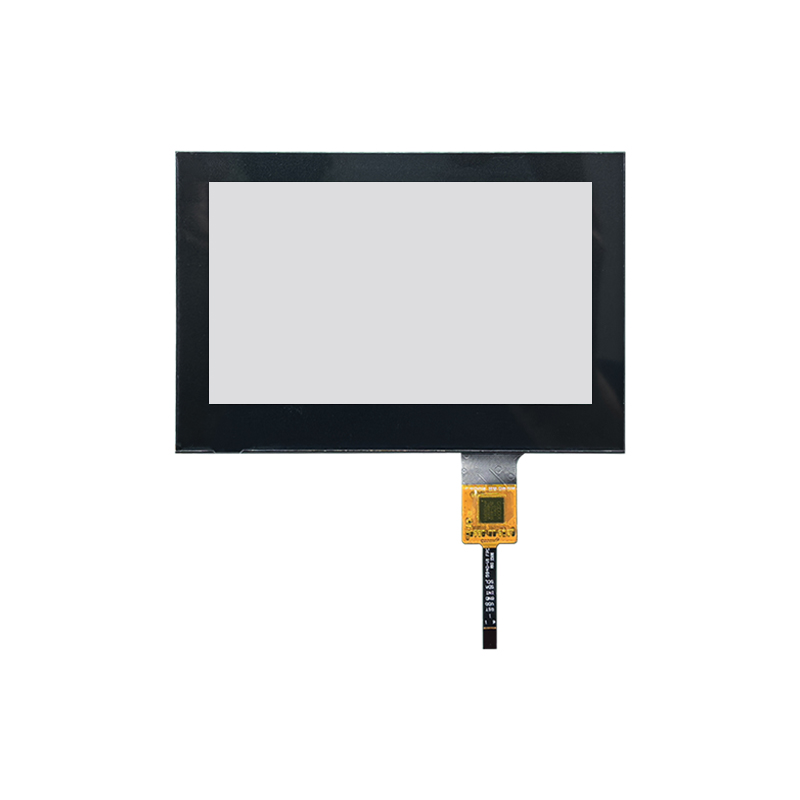

The standard Model # FP-043C02 is a customized 4.3 inch Capacitive Touch Screen. It is featured of G+G structure, 0.55mm Sensor Glass +0.2mmSCA+0.55mm Cover Glass, the whole CTP thickness is1.30mm. The driver IC of this 4.3 inch CTP touch sensor is GT911, compatible of I2C or USB interface connected with 5PIN FPC. The size of cover glass is much bigger sensor glass and it is printed with anti-UV black ink.

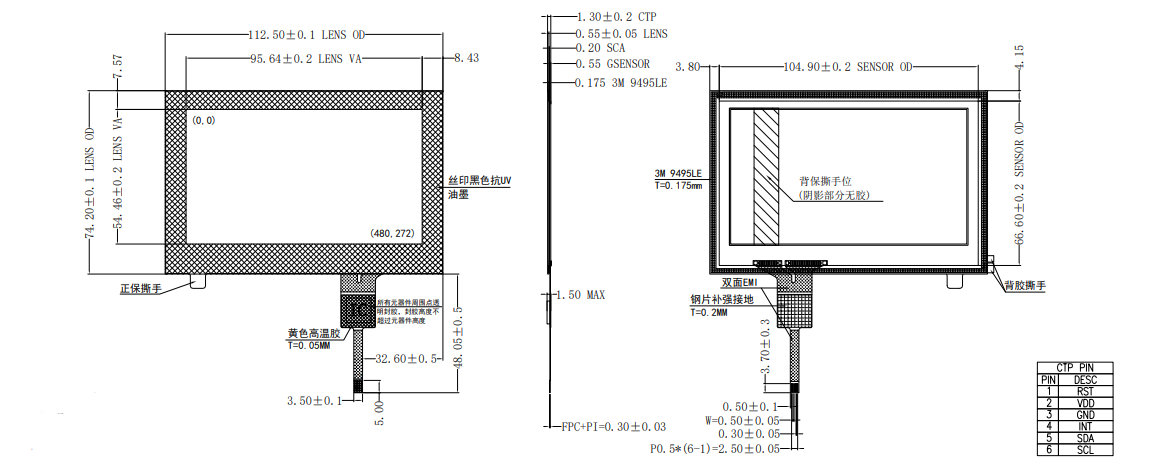

Product Drawing：

Size & Structure:

Function：

Standard and Customized Capacitive Touch Screen:

Shengfeng provides not only the off-the-shelf standard 4.3 inch Capacitive Touch Panel (CTP) touch screens but also customized 4.3 inch CTP touch solutions tailored to your unique requirements. Here are the design options available for your selection:

• Touch Screen Structure:  Options include G+G, G+F, and G+F+F.
• Touch Driver IC:  Choose from a range of ICs such as ETTI, AMTEL, FOCALTECH, GOODIX, and specify the interface type.
• FPC Connector:  Customize the FPC connector to match your device's specific layout and design specifications.
• Cover Glass:  Design a cover glass with a distinctive appearance that meets your project's specific needs, including custom shapes, thicknesses, colors, coatings, or other visual enhancements.

Here are the refined benefits of the capacitive touch screen:

Accurate Control:
CTP touch technology offers a linearity error of less than 1.5% or even 1%, ensuring precise and reliable touch interactions.

Fast Response Time:
With a response time of no more than 5ms, the capacitive touch screen delivers a seamless and responsive user experience.

High Transmittance:
The capacitive touch screen boasts a transmittance rate of up to 85%-90%, maintaining the original display's contrast and clarity.

High Surface Hardness:
Typically featuring a surface hardness of ≥6H, the capacitive touch screen provides exceptional scratch resistance and durability.

Durable and Enduring:
Capacitive touch screens are built to withstand harsh environments, including exposure to dirt, grease, and other liquids, ensuring consistent performance over an extended period.

These advantages make capacitive touch screens a preferred choice for a wide range of applications, including home appliance, medicals, automotives and industrial equipment.
