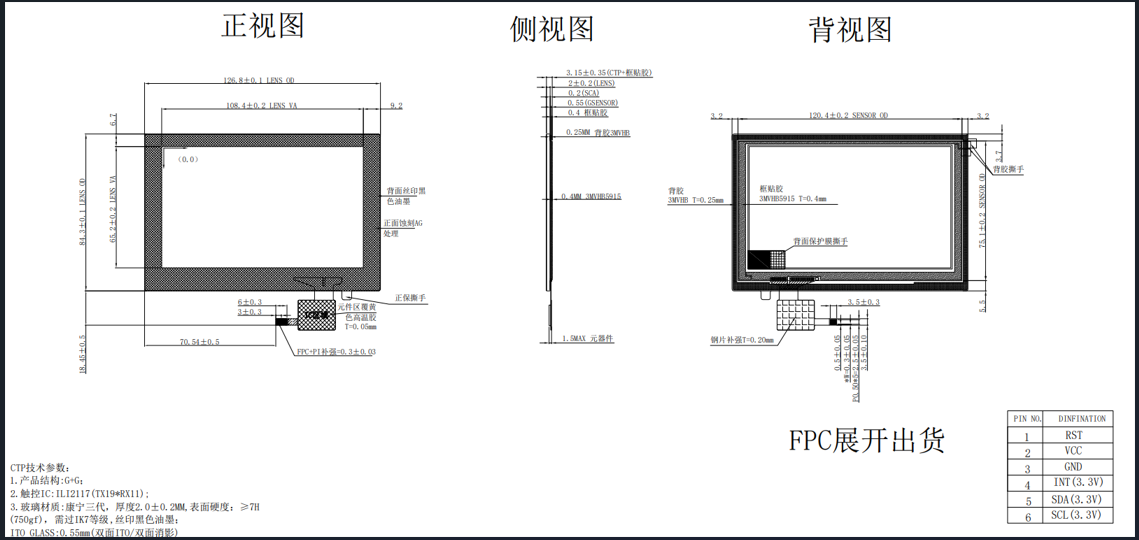

Product Drawing：

Size & Structure:

Function：

Features:

Cover Glass

• Material:  Corning Gorilla Glass 3, thickness 2.0±0.2mm, surface hardness ≥7H (750gf), passing IK7 impact resistance certification.
• Surface Treatment: Silk-screening: Black ink border with customizable LOGO or patterns.
• Reinforcement Standards:

         - Compressive Stress (CS) ≥ 750Mpa

          - Depth of Layer (DOL) ≥ 35μm

          - Surface Tension (CT) ≤ 67

         - 4-Point Bending Strength (4PB) ≥ 600Mpa

         - Etched AG Process:

         - Gloss (60°): 80±10%

         - Haze: 6±3%

         - Surface Roughness (Ra): 0.1±0.03μm

• Benefits:  Anti-glare, anti-fingerprint, and scratch-resistant, ideal for outdoor or high-brightness environments.

 Air Bonding (Double-sided tape bonding)

• Pre-applied 0.4mm double-sided adhesive tape on the back of the cover glass for rapid assembly and cost-effective production.

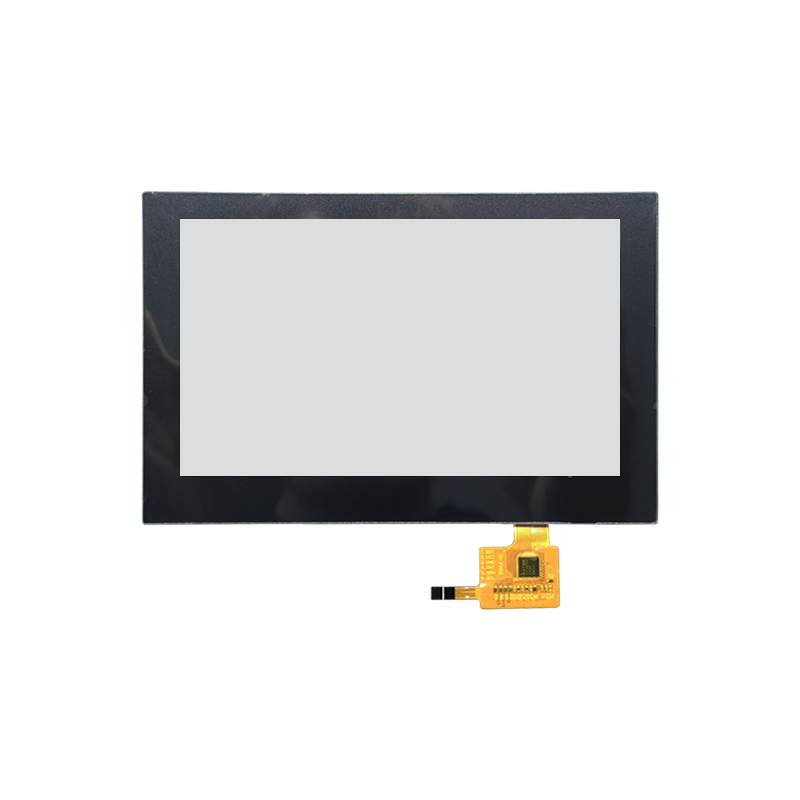

Standard and Customized Capacitive Touch Screen:

Shengfeng offers not only the existing standard 5.0 CTP touch screen, but also are capable of custom-design 5.0 inch touch screen solution tailored to your specific requirements. Here are the design options you can choose from:

• Touch Screen Structure:  G+G, G+F, G+F+F;
• Touch Driver IC:  Designate IC from various IC such as ETTI, AMTEL, FOCALTECH, GOODIX, and define interface type.
• FPC Connector:  Customize the FPC connector to fit your device's specific layout and design requirements.
• Cover Glass:  Design a unique cover glass appearance tailored to your specific project needs, including custom shapes, thickness, colors, coatings, or other visual enhancements.

Why Choose Us?

√Quality Assurance:  Corning glass and top-tier ICs with IK7, RoHS, and other international certifications.

√Flexible Production: Support small-batch prototyping and high-volume manufacturing with agile lead times.

√Expert Team:  Over 10 years of touch technology experience, providing end-to-end services from design to mass production.

Contact us today to start your customized touch solution!
