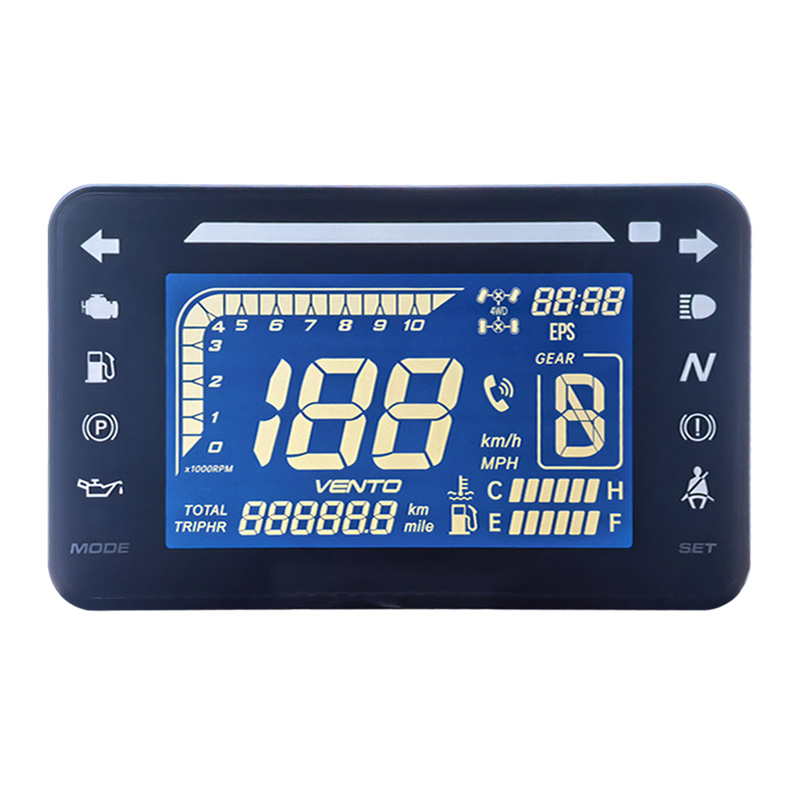

Automotive Display Segment HTN LCD Negative Customized Cover Glass

The segment LCD display structure consists of LCD + FPC + Cover Glass.

For the LCD technology, it is HTN White - Black mode/Negative/transflective type. Equipped with a white backlight, it presents a unique display effect of dark - blue background with white characters.

The customized cover glass creates a distinctive product appearance. The cover glass is significantly larger in size than the LCD. Various application icons are silk - screened on both the left and right sides, with a pure - black background and white icons, resulting in high contrast.

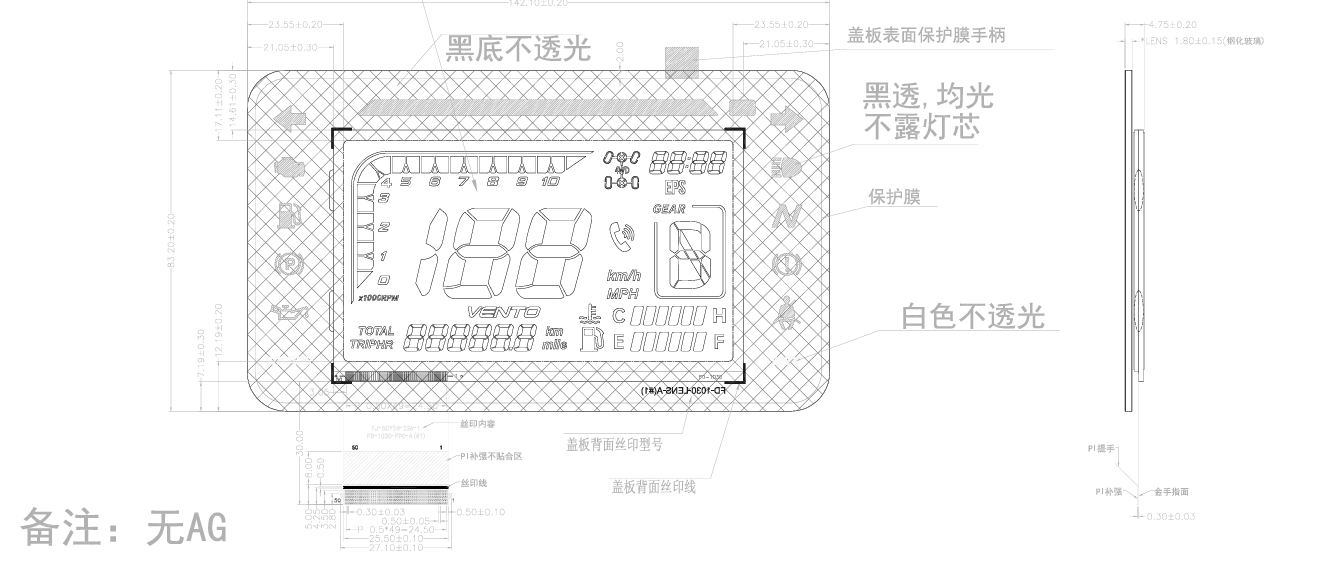

Product Drawing：

Features:

Customized LCD:

• The size and patterns of the LCD are fully customized according to customer requirements, enabling the creation of a unique and personalized interface.
• The 50-PIN FPC is positioned at the lower - left corner of the LCD instead of the normal centered position. It is designed entirely in line with the customer's specific structure.
• HTN White - Black/Negative mode: When paired with a white backlight, it produces the unique display effect of dark - blue background with white characters. This display effect is not only clear and eye - catching but also maintains good visibility under various lighting conditions.

Customized Cover Glass:

• The size, shape and silk-screen icons are tailored to the customer's specific requirement, creating a unique appearance.
• The LCD surface is covered with a 1.8mm glass cover, which can effectively protect the LCD from external scratches and collisions, thereby extending the product's service life.
• OCA optical bonding process is used between the LCD and the cover glass. This not only ensures the product's outstanding display effect but also enhances the overall reliability of the module, reducing display abnormalities caused by environmental factors.

Extremely - Wide Temperature Range:

• This customized segment display strictly adheres to automotive display standards, with an operating temperature range of -30~80°C. It ensures that the instrument information remains clearly displayed even when the vehicle is operating in extreme conditions.

Customized Design to Meet Diverse Needs:

We understand that each customer has unique requirements for automotive instruments. Therefore, the size and patterns of both the LCD and the CG (cover glass) can be fully customized according to customer needs. Whether it's a unique interface layout or personalized icon design, we can make it happen, creating a one - of - a - kind personalized interface that makes your automotive display out among numerous vehicle models.

Applications:
