India Electricity Meter LCD Display Monochrome Segment LCD Industrial-Grade Wide-Temperature LCD

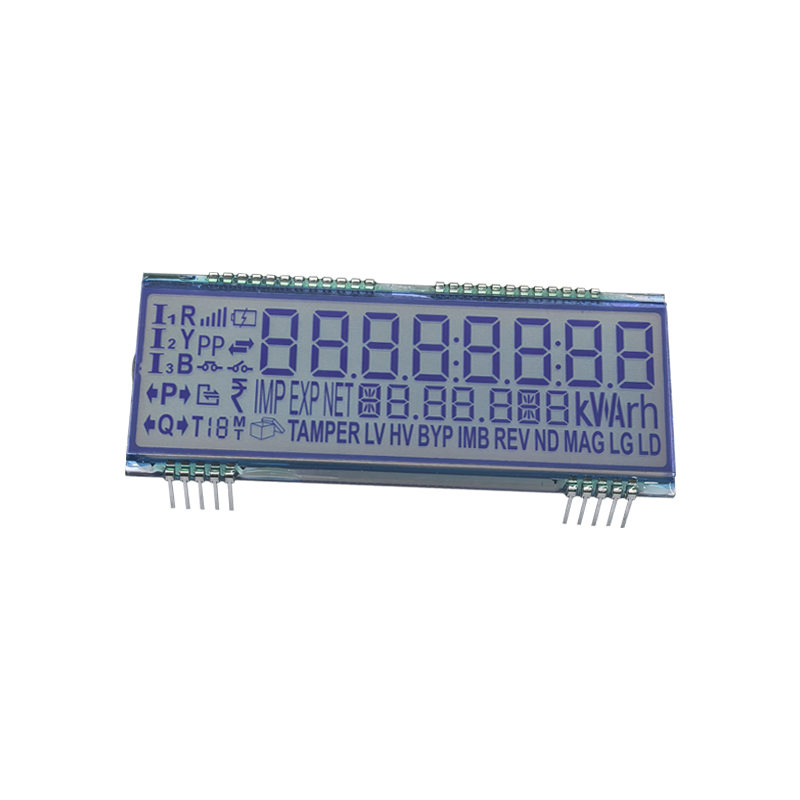

India Electricity Meter LCD Display Monochrome Segment LCD Industrial-Grade Wide-Temperature LCD

The Custom Segment LCD display is designed exclusively for Indian electricity meters, this solution meets the demanding requirements of high temperatures, high humidity, and intense sunlight. The industrial-grade custom segment LCD ensures clear display and stable operation for smart meters, water meters, gas meters, and other intelligent instruments.

Part No. :
F10034
LCD mode :
STN-Gray/Positive/Transflective

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Products Details

Product Details

Display Type	STN Gray/Positive/transflective
Resolution	Segment, 1/8 Duty, 1/3 Bias
Model Size	74.0029.002.85mm
V.A Size	71.00*21.00mm
Dot Size	/
Dot Gap	/
View Direction	6:00 o’clock
Backlight	/
Driver IC	/
Interface	/

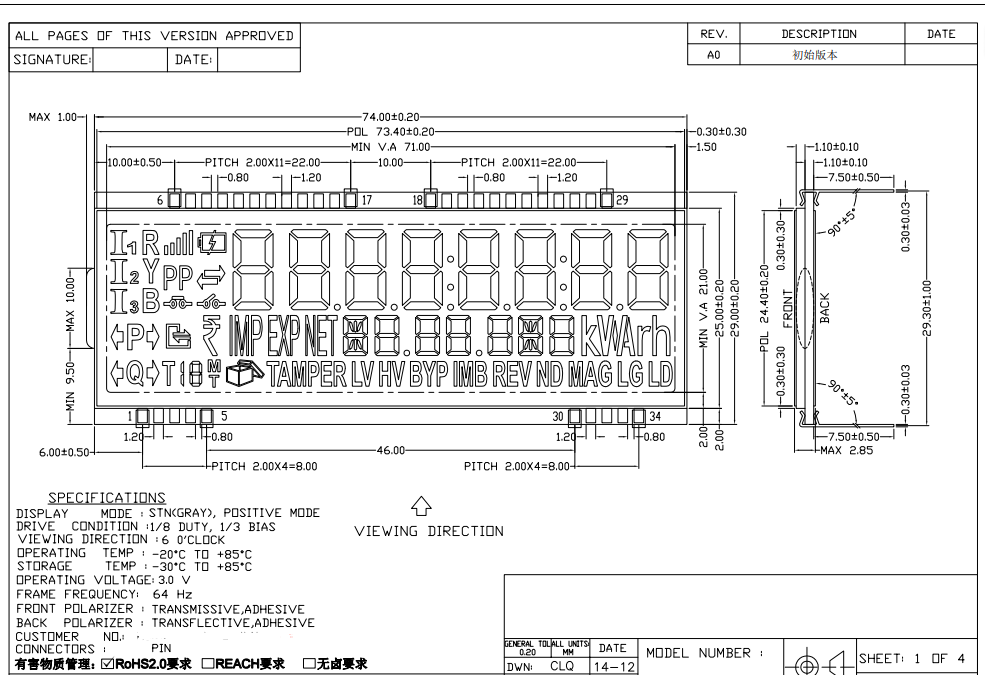

Product Drawing：

Features:

✅ Custom Segment LCD Display

Supports personalized segment layouts (e.g., 8-segment, custom icons) to align with core functions such as meter readings and status indicators.

✅ Dual-Side PIN Structure

Compact Design: Saves PCB layout space by 20%, fitting mainstream compact meter housings in the Indian market.
Enhanced Connection Stability: Dual-side pins reduce the risk of poor contact during transportation or vibration-prone environments.

✅ Industrial-Grade Wide Temperature Range -20℃~85℃

Withstands extreme Indian summer heat (exceeding 50℃ in some regions) and winter cold, ensuring no startup delay at -20℃ and no display ghosting at 85℃.
Treated with a moisture-proof coating to resist high-humidity conditions during India’s monsoon season (up to 90% RH), extending the LCD’s service life.

✅ STN Gray-Mode Positive Transflective Design

40% Wider Viewing Angle than TN screens, supporting 60° visibility up/down/left/right for multi-user reading scenarios.
Combines reflective (power-saving without backlight) and transmissive (backlight-assisted for nighttime) modes for clear 24/7 display.

✅ Drive Voltage: VLCD = 3.0V (Compatible with 2.7~3.3V)

Low-Power Design: Matches mainstream low-voltage circuits in the Indian metering industry, reducing overall energy consumption.
Supports integrated driver IC solutions, simplifying customer circuit design and accelerating development timelines.

✅ Environmental Compliance ROHS 2.0 Certified

Meets EU and Indian environmental regulations—lead-free, mercury-free, and halogen-free—ensuring hassle-free product exports.
Provides complete technical documentation and test reports to facilitate BIS certification pre-approval for customers.

Shengfeng's LCD solutions for the Pain Points of India's Smart Meter Industry :

🔹 Bright Light Environments

➜Automatic gray mode transflective switching for optimal readability.

🔹 High-Temperature Failures

➜Industrial-grade 85℃ heat-resistant LCD material prevents black screens.

🔹Space Constraints

➜ Flexible customization with dual-side PINs for compact installations.

Applications:

Smart electricity meters (single-phase/three-phase)
Prepaid meters, water meters, gas meters
Industrial instrumentation, energy monitoring devices
Outdoor metering terminals (solar meters, agricultural irrigation meters)
