Customized Segment VATN LCD Customized Cover Glass EV Cluster Display

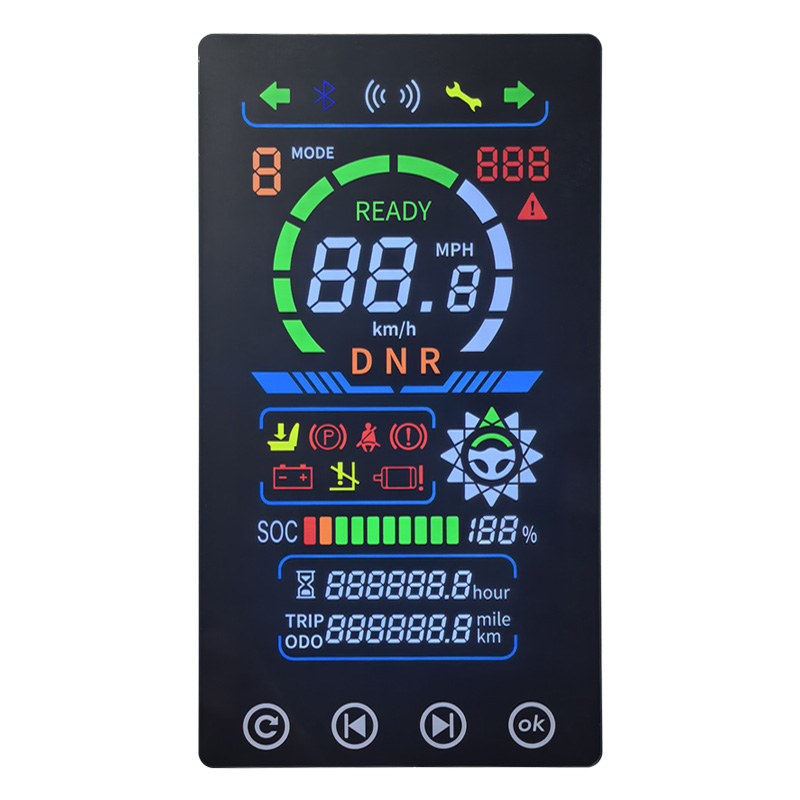

This is a Customized Segment VATN LCD designed for EV Cluster Display. It is VATN Negative/Transmissive mode, with white backlight and 4 -color outer printing. It Is a Segment COG Module, with a Customized Cover Glass.

Part No. :
FD-0110
LCD mode :
VATN/Nagative/Transmissive
Backlight Color :
White

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Products Details

As a segment LCD display for electric motorcycle dashboards, this custom VATN display focuses on visualizing vehicle power, range, and status. With customized display, high-quality visuals, and a robust protective Cover Glass, it has become the preferred automotive display solution for 2-Wheel instrument displays.

Display Type	VATN/Negative/Transmissive
Resolution	Segment, 1/1 Duty, 1/2 Bias
Model Size(w/ cover lens)	86.50158.406.20mm
V.A Size	65.90*125.98mm
Dot Size	/
Dot Gap	/
View Direction	6:00 o’clock
Backlight	LED White
Driver IC	COG Module, ST7037
Interface	30 PIN FPC

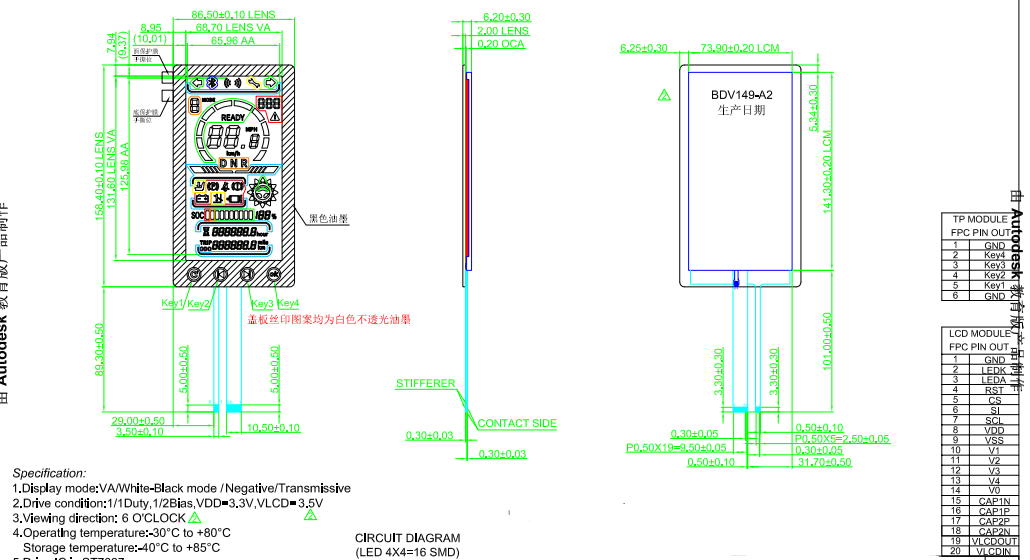

Product Drawing：

Features:

Fully Customized Display:

√ Patterns and layouts are tailored entirely to your needs. Designed with VATN LCD technology, to combine the classic white-on pure black background with 4-color printing, achieving the high contrast and multi-color differentiation ensure clear, easy-to-read information – creating a one-of-a-kind brand-exclusive dashboard interface.

Full Viewing Angle:

√ Designed with static 1/1duty drive, it achieves a near-full viewing angle. This caters to the multi-angle viewing needs of electric motorcycle riders, ensuring clear visibility whether viewed head-on or from the side.

2.0mm 6H Custom Cover Lens:

√ Custom Design: The cover lens size and silk-screened icons can be tailored to requirements, helping create a model-exclusive dashboard appearance and further enhancing brand visual identity.

√ Durability & Clarity: With 6H hardness and optical bonding technology, it improves the whole display screen’s overall flatness and display transparency while resisting scratches from gravel splatter (during rides) and daily wiping. It balances protection and visual experience perfectly.

Customization Service:

Shengfeng Technology specializes in premium custom LCD display solutions for motorcycles. Our expert team provides end-to-end technical support, tailoring every aspect from design and specifications to content and performance for seamless integration and an enhanced riding experience.

Are you creating a custom dashboard display solution for your electric motorcycle?

Please contact us and share your vehicle’s functional needs, we can customize an exclusive VATN segment LCD Display Solution for you!

Hot Tags : Customized Segment VATN LCD Segment COG Module Display For electric motorcycle dashboard 2-Wheel instrument displays. custom LCD display solution Customized Cover Glass.
