Graphic 128x64 COG Module STN Y/G Positive Transflective ST7567 SPI interface -30~80C

Graphic 128x64 COG Module STN Y/G Positive Transflective ST7567 SPI interface -30~80C
Graphic 128x64 COG Module STN Y/G Positive Transflective ST7567 SPI interface -30~80C

Graphic 128x64 COG Module STN Y/G Positive Transflective ST7567 SPI interface -30~80C

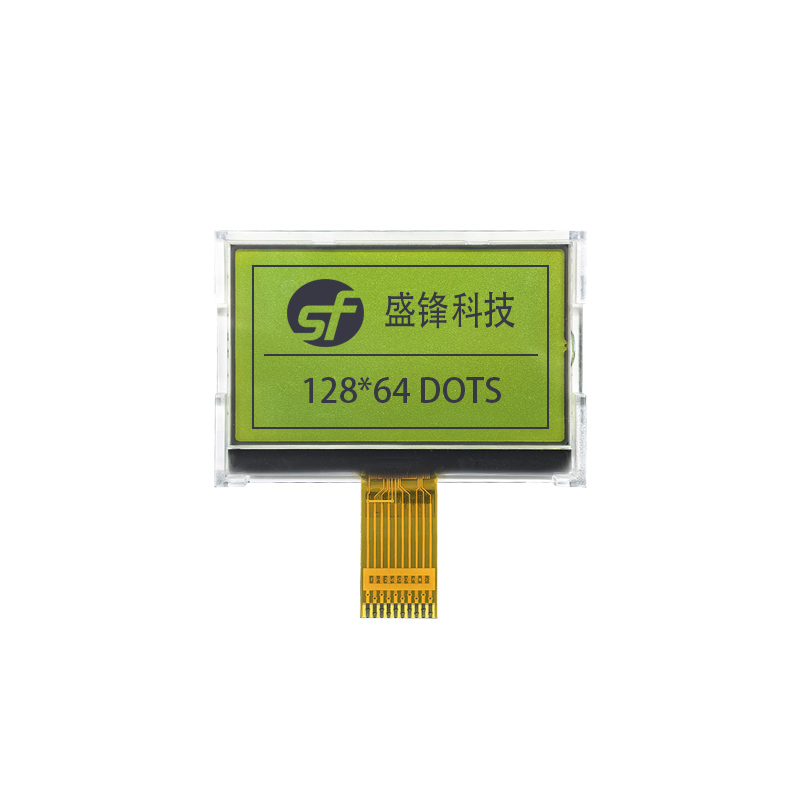

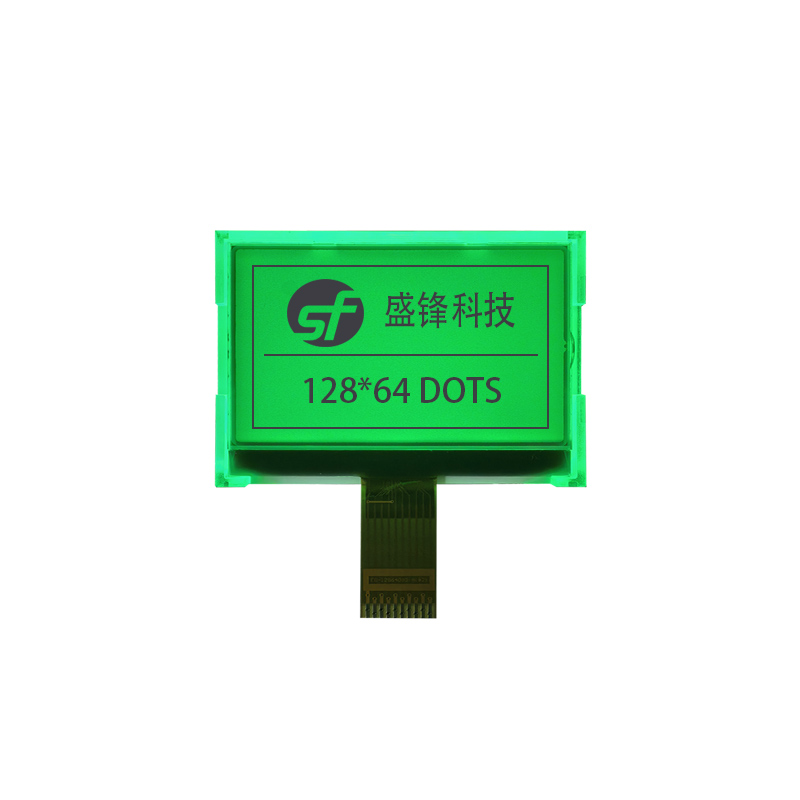

This 128*64 graphic module is of STN Y/G positive, transflective mode, paired with a Yellow/Green backlight, making black-on-Y/G display effect. It is a small-sized 128*64 COG module, with V.A size 46.50×29.50mm, and LCD module outline dimension 53.00 x 40.00mm. The COG Module drive IC is ST7567, supporting 10-pin SPI interface.

  • Size :

    1.97"

  • Part No. :

    FG-12864093-SBYA-B-G-A

  • Resolution :

    128*64

  • Viewing Angle :

    6:00

  • Interface :

    SPI/Parallel

  • Touch Screen :

    /

  • Driver IC :

    ST7567

  • Temperature :

    -30℃-80℃

  • Brightness :

    100 cd/㎡

  • Module Outline(mm) :

    53.00*40.00* 5.55

  • A.A Size(mm) :

    42.91*25.92

  • LCD mode :

    STN Y/G/positive /transflective

  • Backlight Color :

    Yellow/Green
Inquiry now

128*64 Graphic LCD Display



Display Type

STN(Y-G)/positive /transflective, COG module

Resolution

128*64

Model Size

53.00 * 40.00*5.55mm

V.A Size

46.50*29.50mm

Dot Size

0.2755*0.3455mm

Dot Gap

0.03*0.03mm

View Direction

6:00

Backlight

LED white (3 chips)

Driver IC

ST7567

Interface

SPI/Parallel

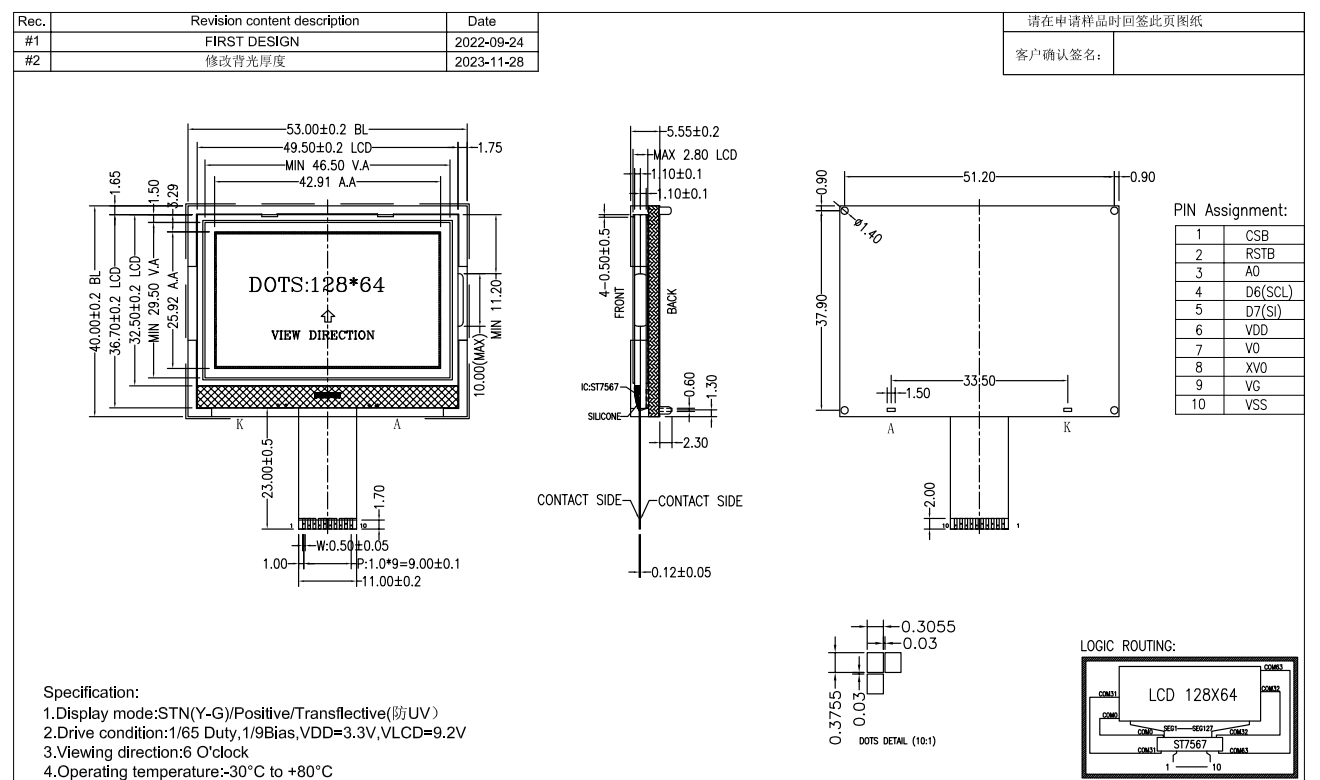

 Drawing:

128*64 Graphic LCD Display



Features:

  • Classic Resolution:  128×64 dot-matrix ensures clear rendering of graphics and text, suitable for most basic display requirements.
  • Compact Design:  Module dimensions of 53.00 x 40.00mm and a view area of 71.70×38.80mm save installation space and facilitate device integration.
  • STN Y/G Mode:  STN yellow-green mode + positive mode + transmissive-reflective design with yellow-green backlight provides high contrast yellow-green background with black characters, ensuring high readability in various lighting conditions.
  • Wide Temperature Range: Operating temperature range of -30°C ~ 80°C and storage range of -40°C ~ 90°C ensure stable performance in extreme environments.
  • Mainstream Driver & Interface:  ST7567 driver IC + 10-PIN SPI interface offers stable transmission, strong compatibility, and simplifies development and integration.



Application:

With advantages such as compact size, -30°C to 80°C extremely-wide temperature range, and high compatibility, this 12864 COG module could be widely applicable in industrial control terminals, automotive electronic displays, outdoor portable devices, medical compact instruments, and other products requiring compact LCD modules.



If you request a 128×64 graphic module, of standard or customized solution, please contact us freely.
