4.5 inch IPS TFT LCD 480*854 FWVGA MIPI Interface High Contrast 550cd/m2

The model #FT-04504-B-N-A, it is a 4.5 inch TFT LCD Display of resolution of 480(RGB)×845 (FWVGA) with an aspect ratio of 9:16 (W:H) aspect ratio in portrait mode. The pixels are arranged in RGB vertical stripes, delivering a pixel density of 219 PPI. Its active display area size is 55.44 × 98.64 (W×H), and display module outline dimension is  58.80 × 107.40 mm with a slim thickness of just 2.11 mm. Operating in ADS mode, it offers normally black display, transmissive backlight, full viewing angles, and high contrast. The 4.5 inch TFT LCD module is powered by an ST7701SN-G5 driver IC that supports the MIPI interface..

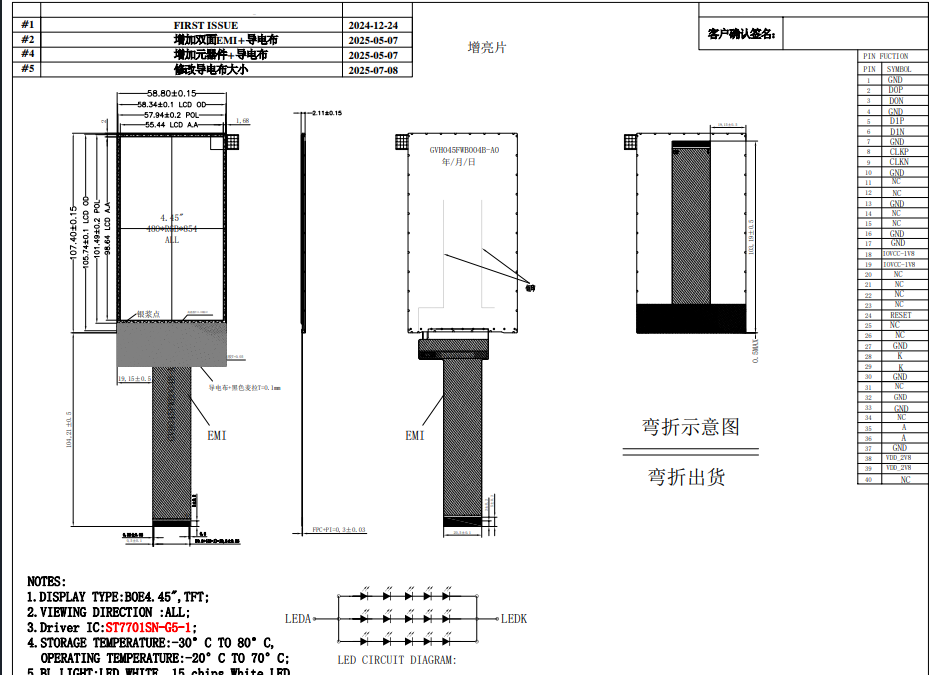

Product Drawing：

Product Specification:

Product Feature:

✅ High Resolution:

The 4.5 inch TFT LCD with a 480×854 resolution delivers sharp and detailed visuals.

✅ Portrait Design:

The 9:16 (W:H) aspect ratio is tailored for applications requiring vertical information display.

✅ ADS Technology:

Achieves full viewing angles of 85/85/85/85 (Typ.)(CR≥10) and a high contrast ratio of 1200:1, ensuring precise color reproduction and clear image quality even when viewed from multiple angles or off-center.

✅ Narrow Bezel Design:

Maximizes the effective display area, enhancing the overall screen-to-body ratio and adding a touch of modern, tech-inspired aesthetics to the product.

✅ Efficient Interface:

Equipped with the ST7701SN driver IC, it natively supports the MIPI 2lane interface, offering high data transfer rates and strong anti-interference capabilities. It is compatible with mainstream embedded processors (e.g., RK3288, STM32), simplifying system design.

✅ EMI Design:

Features dual-layer FPC shielding plus conductive fabric for effective electromagnetic interference (EMI) suppression, ensuring signal integrity, enhancing overall system stability and reliability, and meeting industrial and automotive standards.

Applications:

The model #FT-04504, a 4.5 inch 480×854 TFT LCD module of portrait module, stands out with its ADS full-view technology, high contrast, compact size, high-speed MIPI interface, and industrial-grade EMI protection. It is an ideal display solution for industrial handheld devices, smart wearables, automotive terminals, and more.

Industrial Handheld Devices -- Handheld data collectors, barcode scanners, inspection terminals, POS machines.

•  Advantages: The portrait design facilitates single-handed operation, high brightness supports outdoor use, the MIPI interface is compatible with industrial-grade processors, and EMI design ensures stable signals.

Smart Wearables & Health Monitoring -- Smart wristbands, medical monitors, portable ECG machines.

• Advantages: The slim module (2.11 mm thickness) is ideal for wearables, ADS full-view technology supports multi-angle data viewing, and high contrast improves text/chart readability.

Smart Home & IoT Devices -- Smart door locks, thermostat panels, home security control screens.

• Advantages: The MIPI interface enables rapid touch response, ADS technology ensures multi-angle operation, and high contrast enhances nighttime visibility.
