Graphic 128x64 COG Module FSTN Positive Transflective ST7567 Parallel interface

Graphic128x64 LCD Module

Graphic 128x64 COG Module FSTN Positive Transflective ST7567 Parallel interface

  • Size :

    1.87"

  • Part No. :

    FG-12864138-FBWA-B-G-C

  • Resolution :

    128*64

  • Viewing Angle :

    6:00

  • Interface :

    Parallel

  • Touch Screen :

    /

  • Driver IC :

    ST7567A

  • Temperature :

    -20℃-70℃

  • Brightness :

    100 cd/㎡

  • Module Outline(mm) :

    96.20*76.40*5.50

  • A.A Size(mm) :

    87.95*55.00

  • LCD mode :

    FSTN/positive /transflective

  • Backlight Color :

    White
Inquiry now

Model#FD-12864138,  is a large-size 12864 COG LCD module, with VA size of 87.95×55.0mm and module outline dimension of 96.20×67.40mm. Adopting FSTN/Positive/Transflective mode, and it is equipped with white backlight,  this 12864 module delivers classic black-on-white display effect with high contrast, ensuring excellent visibility both indoors and outdoors..

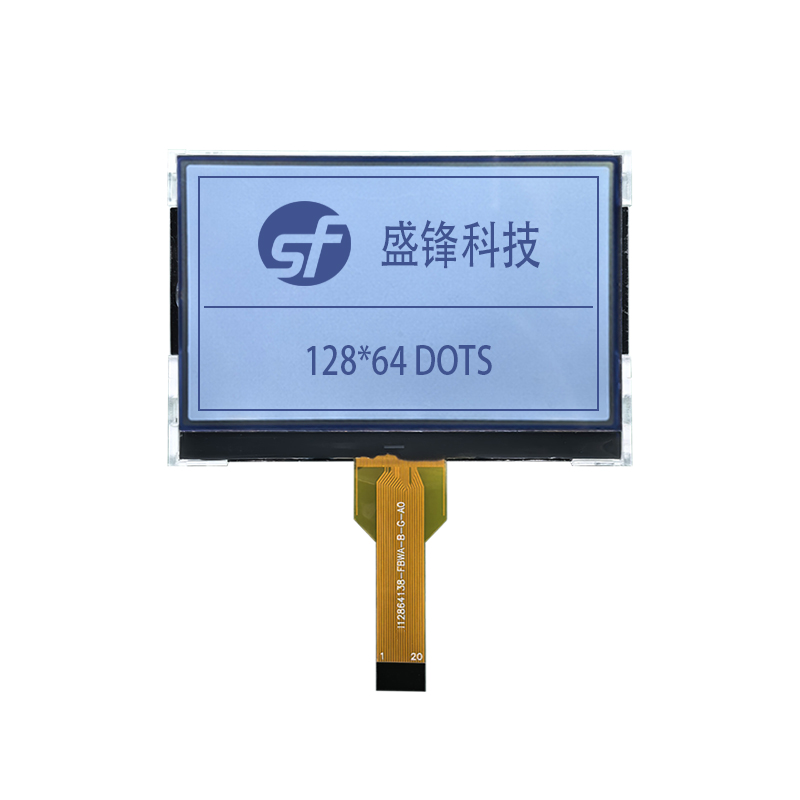

128*64 Graphic LCD Display



Display Type

FSTN/positive /transflective, COG module

Resolution

128*64

Model Size

96.20*67.40*5.5mm

V.A Size

87.95*55.0mm

Dot Size

0.60*0.72mm

Dot Gap

0.64*0.76mm

View Direction

6:00

Backlight

LED white (3 chips)

Driver IC

ST7567A

Interface

Parallel

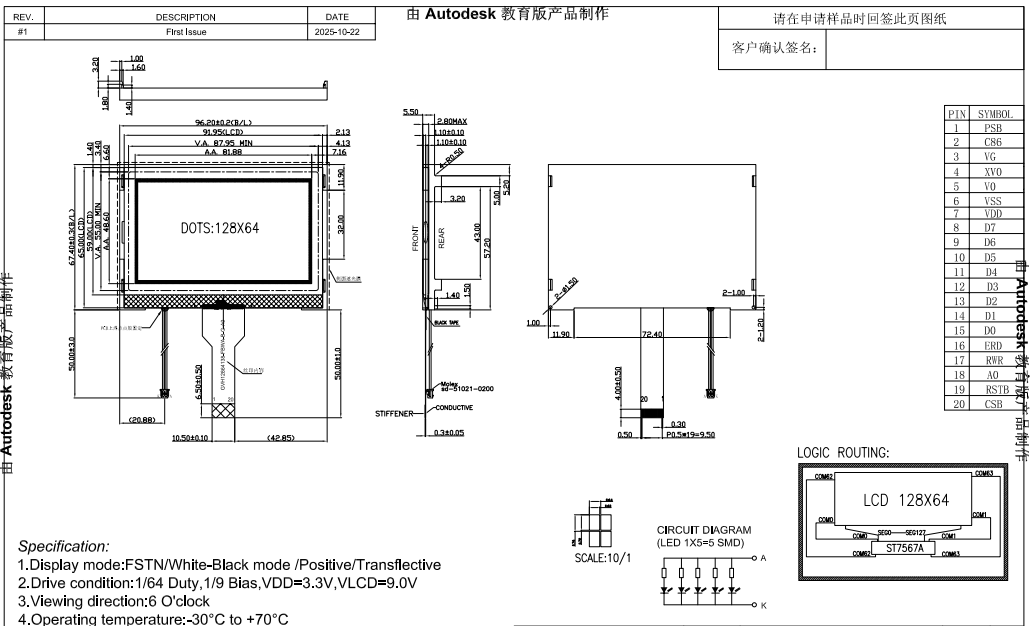

 Drawing:

128*64 Graphic LCD Display



Features:

  • Classic 128*64 Resolution:

Standard 128X64 dot matrix specification clearly presents texts, numbers and simple graphics, fully meeting basic data display demands of most equipment with strong compatibility.

  • FSTN Transflective Display & White Backlight:

Presents stable white-on-black display effect with great contrast. The transflective design supports visible reading without backlight under strong sunlight to reduce power consumption.

  • ST7567A Driver IC:

Equipped with dedicated ST7567A LCD driver IC with stable and mature performance and sufficient mass supply, which effectively cuts down project cost and achieves outstanding cost performance.

20-PIN Parallel Interface:

Ensures stable and fast signal transmission, compatible with mainstream single-chip microcomputers and main control boards for easy rapid integration and upgrade.

  • Buckled Backlight Structure:

Built-in buckles at four corners of the backlight enable quick fixing on main control boards without extra screws or adhesive tapes, greatly improving overall assembly efficiency.

  • 12864COG Module:

Simplified COG structure realizes slim design and low power consumption, perfectly adapting to various harsh industrial working environments.



Application:

Model#FD-12864138,  this 12864 COG module is ideal diplay solution for various embedded display scenarios including industrial control, instruments & meters, smart home appliances, automotive peripherals, handheld devices and industrial control mainboards, serving as a high-cost-performance priority choice for basic dot matrix display solutions.

We support customized services such as LCD size modification, backlight brightness adjustment and pin definition. etc. Adequate stock supports fast sample delivery and mass shipment.

!

Hot Tags : 12864 COG module Graphic128x64 LCD Module Graphic LCD Display Module 128*64 COG module 12864 module LCD Display Module Factory
