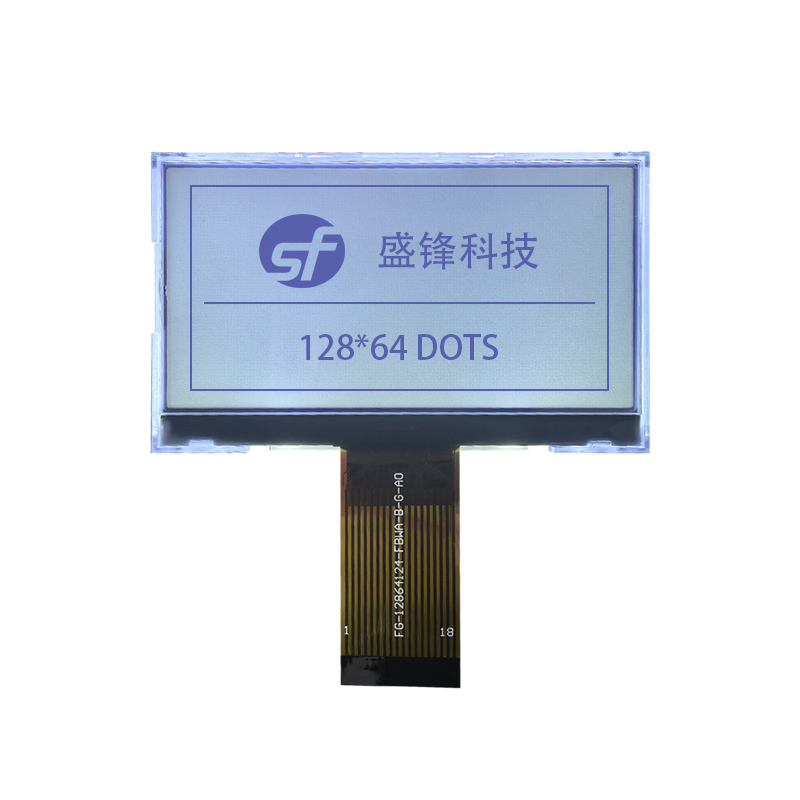

Graphic 128x64 FSTN LCD Positive Transflective COG Module AIP31565 4SPI interface

Graphic 128x64 FSTN LCD Positive Transflective COG Module AIP31565 4SPI interface

Size :
2.91"
Part No. :
FG-12864124-FBWA-B-G-A0
Resolution :
128*64
Viewing Angle :
6:00
Interface :
4SPI
Touch Screen :
/
Driver IC :
AIP31565
Temperature :
-20℃-70℃
Brightness :
100 cd/㎡
Module Outline(mm) :
78.40*50.00*5.30
A.A Size(mm) :
66.52*33.24
LCD mode :
FSTN/positive /transflective
Backlight Color :
White

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Products Details

128*64 Graphic LCD Display

Display Type	FSTN/positive /transflective, COG module
Resolution	128*64
Model Size	78.4050.005.30mm
V.A Size	71.70*38.80mm
Dot Size	0.29*0.36mm
Dot Gap	0.03*0.03mm
View Direction	6:00
Backlight	LED white (3 chips)
Driver IC	AIP31565
Interface	4SPI

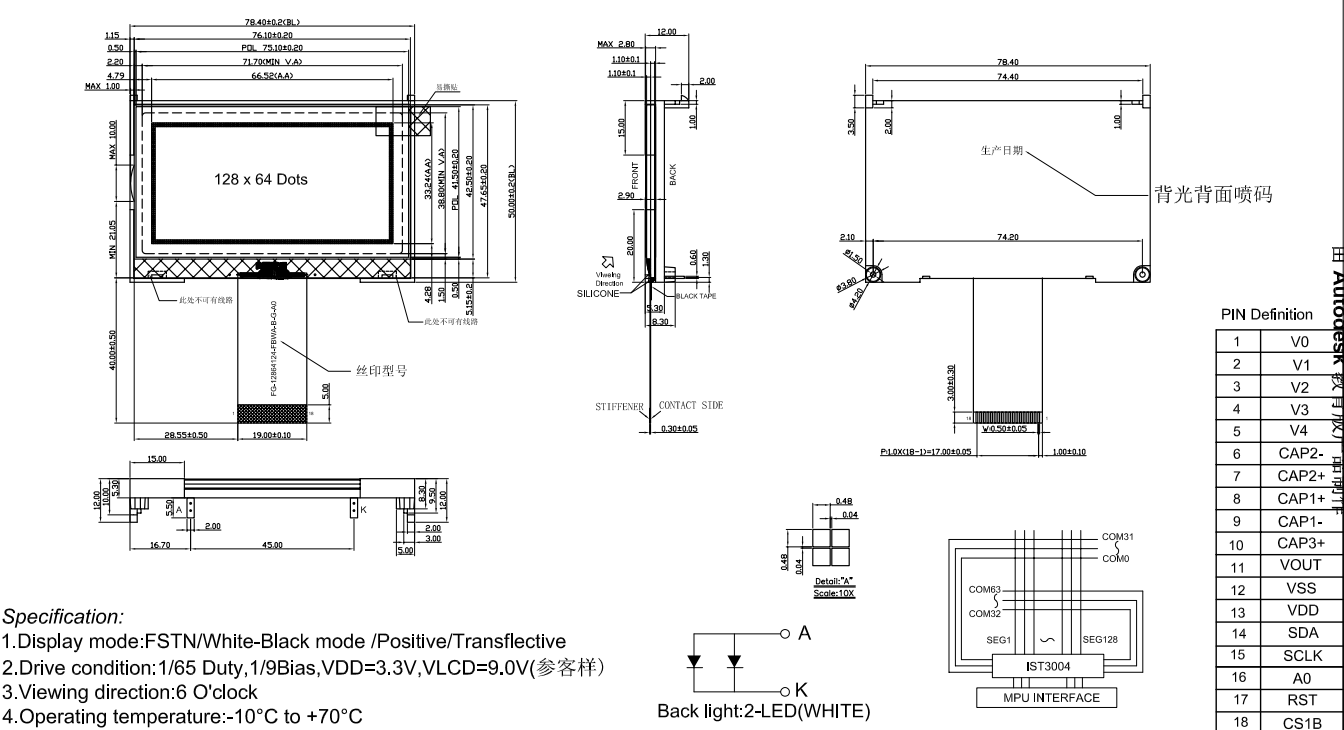

Drawing:

128*64 Graphic LCD Display

Features:

1. Classic Resolution + Large Viewable Area: Strong Information Carrying Capacity

The classic 128*64 dot matrix resolution in monochrome dot matrix modules meets diverse display needs for characters, icons, graphics, etc.
The large VA size of 71.70×38.80mm enhances information density and improves reading comfort.

2. Classic FSTN Positive Mode: White Background with Black Text, Clear in All Scenarios

The FSTN positive mode, paired with a white backlight, presents a classic white background with black text display effect, featuring high contrast.
Transflective mode make this module use ambient light in bright environments and backlight supplementation in low-light scenarios, perfectly adapting to mixed indoor and outdoor use (e.g., outdoor instruments, indoor control panels).

3. 4SPI Interface + AIP31565 Drive: Efficient Integration with Low Cost

The drive IC AIP31565 supports a 4SPI interface, requiring fewer connections and occupying less PCB space. The interface protocol is highly compatible, fitting mainstream master control solutions for easy integration.

4. Ultra-Thin Backlight + Precise Positioning: Space-Saving and Easy Assembly

The backlight thickness is only 2.5mm, and the whole module thickness is just 5.3mm, suitable for device designs with limited space.
Two long-leg positioning posts and two clips are designed on the back of the backlight for precise positioning with the mainboard, simplifying the assembly process, improving production efficiency, and avoiding loosening risks.

Customization Services:

To meet the personalized needs of different industries and devices, We Shengfeng are capable of offering comprehensive customization solutions on:

√ Display Pattern: Supports custom designs for segments, characters,or graphics type.

√Size and Structure: Design the module size tailored to the customer's specific project requiremnt.

√ Backlight: Flexibility of backlight color (e.g., Y/G, blue, white) and brightness to match different lighting environments.

√ Interface : Support I²C, SPI and parallel interfaces, compatible with various master control chips.

√ Environmental Adaptability: Optimizes module performance for special scenarios such as high/low temperatures, dust, and water resistance.

For detailed specifications, sample testing, or customized solution consultations for the 128x64 dot matrix screen, please contact us immediately.

Applications:

Hot Tags : 12864 COG module Graphic128x64 LCD Module Graphic LCD Display Module 128*64 COG module 12864 module LCD Display Module Factory

leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

RELATED PRODUCTS

128*64 dot-matrix Graphic COG LCD Module STN BLUE

This monochrome LCD, 128*64 graphic dot-matrix display module, utilizes LCD technology of STN BLUE negative mode with white backlight, is to present blue-on-white display effect that is both premium and high contrast performance. This dot matrix screen is designed as COG+FPC structure, making it economical size, ultra-thin, and space-saving. Additionally, the FPC connection facilitates production assembly for customers.

240*160 dot-matrix Graphic COG LCD Module STN/FSTN

This is a monochrome dot matrix display, with 240 pixels horizontally and 160 pixels vertically. Its high resolution provides clear and delicate display effects, enabling it to display complex images, pictures, and amounts of text or characters. This standard graphic module utilizes the FSTN positive mode and is equipped with a white backlight, achieving the classic display effect of black text on a white background. The LCD thickness is 2.0mm and total module thickness is 3.5mm including backlight.

160*160 dot-matrix COG LCD Module FSTN LCD China Supplier

It is monochrome LCD graphic LCD module, square shape of 160*160 dot-matrix. The LCD mode is FSTN positive/transflective with white LED backlight, to to present the classical black-on-white display effect. The module structure of this graphic LCD screen is COG+FPC+backlight. LCD glass thicknees is 0.7+0.7mm, and backlight 2.1mm, making the module thickness of 4.1mm including backlight. This COG structure design makes it economical size, ultra-thin for space-saving, and competitive cost.

High-Resolution Graphic LCD Display Module

240*160 Graphix COG Module FSTN/White-Black

This monochrome LCD, 240*160 graphic dot-matrix display module, of LCD technology FSTN White-black positive mode with white backlight, is to present classical black-on-white display effect. The structure of this dot matrix screen is COG LCD+FPC+Backlight, the whole module thickness just 3.5mm makes it thin and space-saving, and the simple FPC connection is easy for production and assembly for customers.

160*96 dot-matrix Graphic LCD Display COG Module FSTN Display

The 160*96 dot-matrix LCD module is a high-performance monochrome LCD module that utilizes a dot-matrix design to present clear and detailed images and text. This graphic LCD display chooses the FSTN (Film Super Twisted Nematic) positive/transflective display mode, coupled with a white LED backlight, to achieve the classic black-on-white display effect. This is COG module, very simple structure of ultra thin thickness of 3.5mm.

High-resolution 240*160 dot-matrix Graphic COG LCD Module

This is a 240*160 dot-matrix graphic COG module, with 240 pixels horizontally and 160 pixels vertically. Its high-resolution characteristic ensures a clear and delicate display effect, capable of presenting complex images, patterns, as well as a large amount of text or characters. This standard graphic module employs the FSTN positive display mode and is equipped with a white backlight, achieving the classic display effect of black text on a white background.

256*32 dot-matrix Graphic COG LCD Module with Computer Keyboard Display

This is a monochrome graphic COG LCD module specifically designed for scale applications. It features a unique dot-matrix configuration with 256 pixels vertically and 32 pixels horizontally, making it a bar-type shape. To ensure the optimized layout and whole display performance consistence, the COG LCD module is designed with 2 COG driver ICs are placed on the upper side.

192*64 Dot-Matrix COG Module Graphic LCD Display

The 192*64 dot-matrix LCD module is a high-performance monochrome LCD module that utilizes a dot-matrix design to present clear and detailed images and text. This graphic LCD display chooses the STN Y/G positive/transflective display mode, coupled with a yellow/green LED backlight, to achieve the classic black-on-yellow/green display effect.

376*60 dot-matrix Graphic COG LCD Module Scale Display

This is a monochrome graphic COG LCD module specifically designed for scale applications. It features a unique dot-matrix configuration with 376 pixels vertically and 60 pixels horizontally, making it a bar-type shape. To ensure the optimized layout and whole display performance consistence, the COG LCD module is designed with 2 COG driver ICs separately placed on its two narrow sides.

240*160 dot-matrix Graphic COG LCD Module with PCB board, FSTN LCD

This is one classic high resolution graphic COG module of 240*160 dot-matrix, that is capable to display intricate images, patterns, and a considerable amount of text or characters. The graphic module utilizes the FSTN (Film Super Twisted Nematic) positive display mode with a white backlight, resulting in the classic visual effect of black text or graphics displayed on a white background.

Graphic 128*64 dot-matrix FSTN LCD COG Module

The 128*64 dot-matrix LCD module is a popular and high cost-performance monochrome graphic LCD module that is designed to present texts or images. This 128*64 graphic LCD display mode is FSTN/white-Black mode, positive/transflective, with a white LED backlight, to achieve the classic black-on-white display effect.

Big Size Graphic 128*64 dot-matrix LCD FSTN LCD COG Module SPI Interface

This is a large-sized 128*64 graphic module. It boasts a bigger display area while maintaining the versatility and reliability that 128*64 dot matrix displays are known for. It is FSTN Positive mode with white backlight, achieving the high-contrast display of black text on white background.

Graphic 128*64 dot-matrix LCD FSTN LCD COG Module Serial Interface

It is a large-size 128*64 graphic COG module. It is designed as FSTN/Positive/Transflective mode and is equipped with high-quality white backlight. to achieve a high contrast display effect of black text on white background.

Portrait 135*160 graphic LCD module FSTN LCD COG Module Serial Interface

This is a customized 135*160 dot-martrix COG module, is featured of its portrait mode. It is FSTN Positive mode with white backlight, with the classical display effect of black text on white background.

High Resolution 240*160 Graphic COG LCD Module SPI Interface

This is a 240*160 dot matrix LCD module, which can be used for displaying text mode, graphic mode, and a combination of both. The LCD is FSTN positive mode with white backlight, achieving a display effect of white background with black letters.

Small size Graphic 128*64 dot-martrix LCD module Serial Interface

This is a small size 128*64 dot-martrix LCD Display, built in with driver IC ST7567 connected by 14 PIN SPI interface. It is FSTN White-Black mode with white backlight.

COG 128*64 Graphic LCD module ST7565A IC White LED backlight 14PIN

This is a graphic COG module of 128*64 resolution. It is FSTN/Positive/Transflective mode with white backlight, 6:00 O' clock. This module is built in with driver IC ST7567A, defined as SPI interface.

Customized Graphic 128*64 dot-martrix LCD module Reflective mode

This is a unique customized COG module, of segment plus 128*64 dot-martrix. The LCD mode is STN Gray Positive Reflective mode without backlight, achieving the display effect of dark blue text on gray white background.

COG Graphic 128*64 dot-martrix LCD module ST7567 I2C Interface 12PIN

This is a regular graphic 128*64 COG module, of LCD FSTN White-Black Positive mode, with white backlight, and I2C Interface.

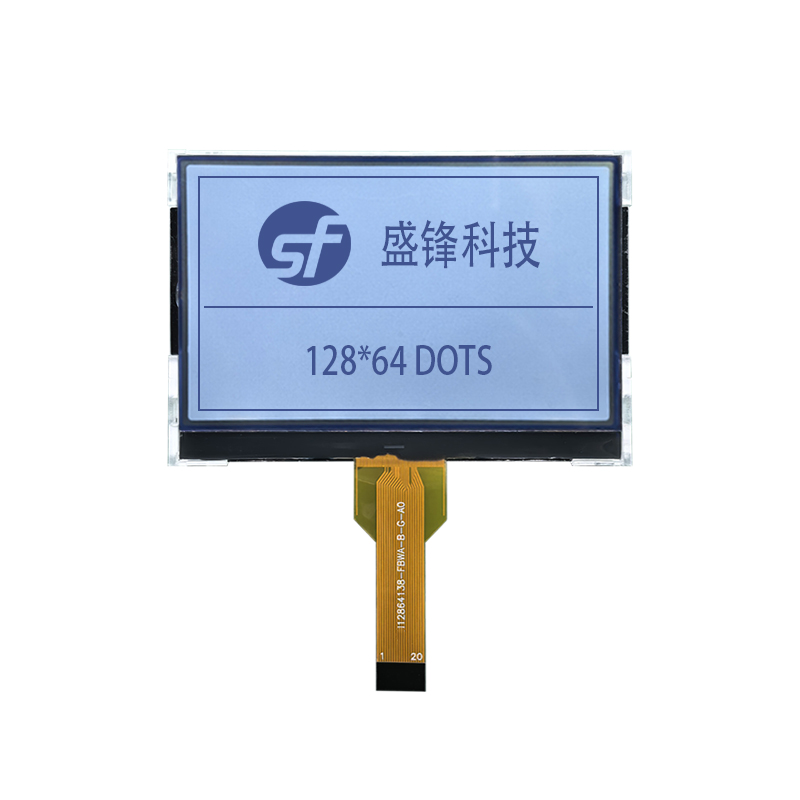

Graphic 128*64 dot-martrix LCD module ST7567 COG Module Parallel Interface
