Customized Graphic 132x64 FSTN LCD Positive Transmissive COG Module ST7567 4SPI interface

Customized Graphic 132x64 FSTN LCD Positive Transmissive COG Module ST7567 4SPI interface

This is a monochrome LCD, graphic 13264 COG module featuring FSTN positive/transmissive mode with white backlight, delivering a classic black-on-white display effect. Its VA size is 54.60 × 28.35 mm, and module outline dimensions is 59.20 × 39.5 mm. It is built with ST7567 driver IC, supporting a high-speed SPI interface.

Size :
2.28"
Part No. :
FG-1326405-FCWA-B-G-C
Resolution :
132*64
Viewing Angle :
6:00
Interface :
SPI
Touch Screen :
/
Driver IC :
ST7567
Temperature :
-20℃-70℃
Brightness :
100 cd/㎡
Module Outline(mm) :
59.20*39.50*5.10
A.A Size(mm) :
52.12*25.26
LCD mode :
FSTN White-Black/Positive /Transmissive

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Products Details

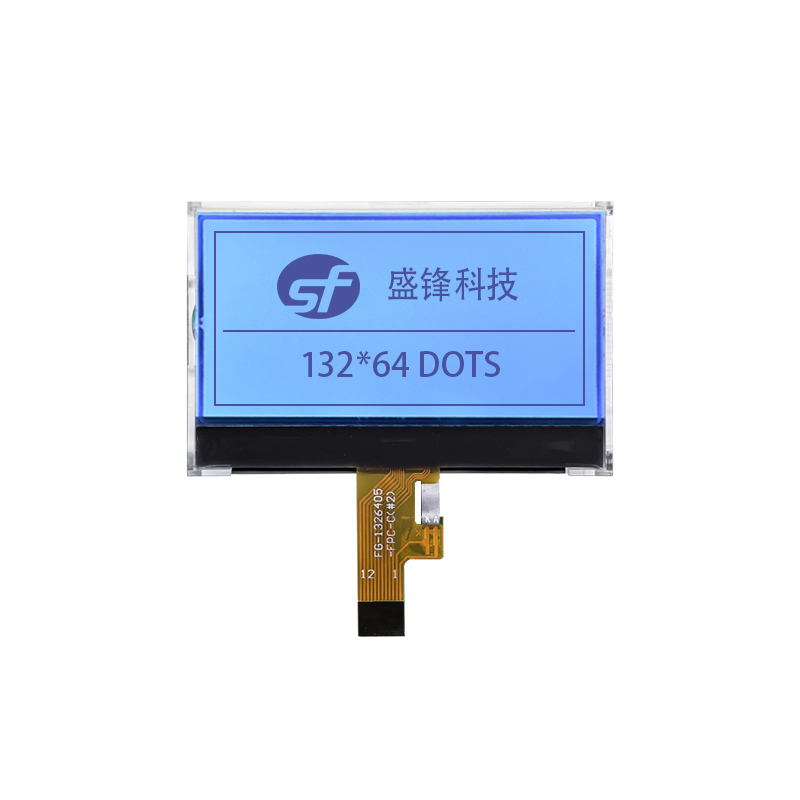

132*64 Graphic LCD Display

Display Type	FSTN /Positive /Transmissive, COG module
Resolution	132*64
Model Size	59.2039.505.10mm
V.A Size	54.60*28.35mm
Dot Size	0.375*0.375mm
Dot Gap	0.02*0.02mm
View Direction	6:00
Backlight	White Backlight
Driver IC	ST7567
Interface	SPI

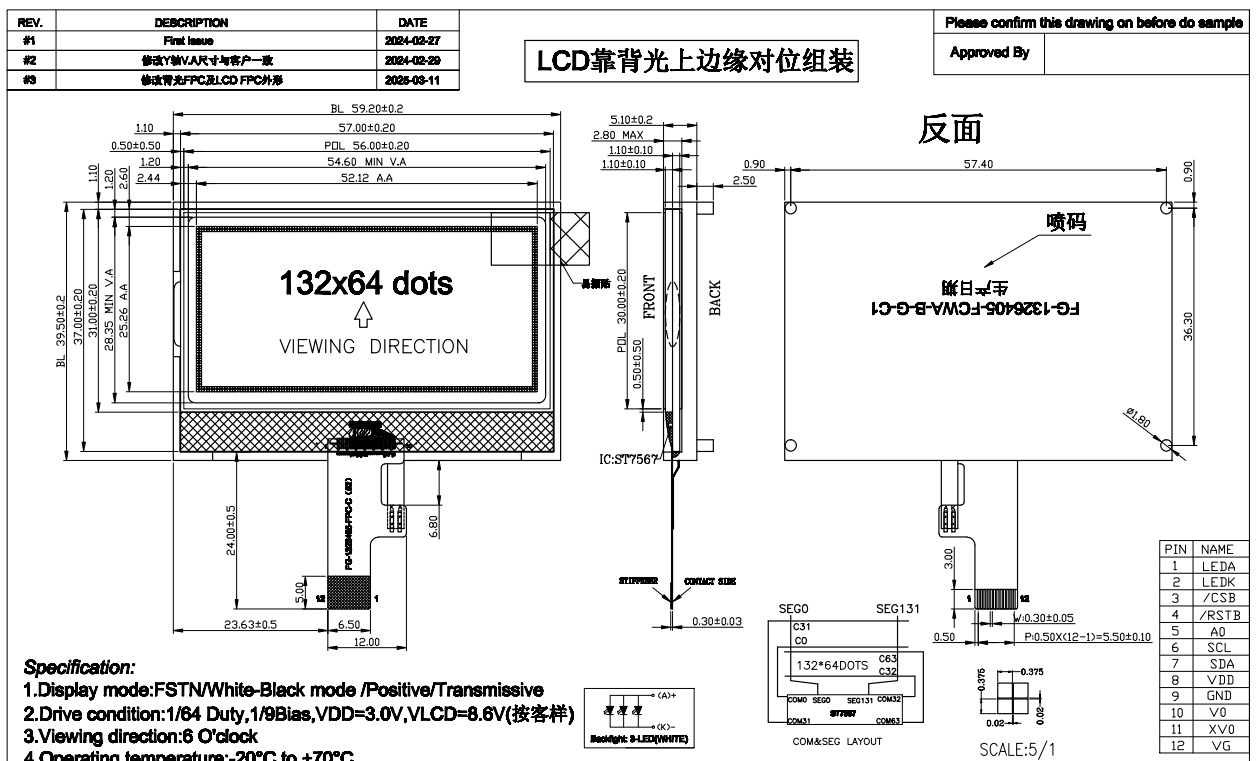

Drawing:

132*64 Graphic LCD Display

Features:

FSTN Positive Mode + White Backlight:

Utilizing FSTN positive transmissive mode display technology paired with a white backlight, it offers high-contrast, clear visuals with sharp, blur-free edges for text and icons.

ST7567 Driver IC:

Featuring the industry-proven ST7567 driver IC, it supports a wide range of functions, including display on/off, normal/reverse display, and setting the display starting line.
Its low-power analog circuit design, combined with a broad operating voltage range, significantly extends device battery life, making it ideal for portable instruments.

High-Speed SPI Interface:

Supporting a 4-wire SPI serial interface, it reduces the PIN number compared to parallel interfaces, substantially lowering PCB space usage.
The interface protocol is highly compatible, directly adaptable to mainstream microcontroller chips such as STM32, Arduino, and C8051.

COG Packaging Process:

This 13264 COG module is designed as COG structure, with the COG driver IC directly bonded onto the glass substrate, resulting in a thinner module thickness and offering more design possibilities for space-constrained devices.

Applications:

This custom 132*64 graphic LCD module, with its high-contrast black-on-white display, stable performance, and easy integration, is an optimal display solution for industrial control, medical equipment, portable instruments, and other applications.

Industrial Control: Automated production line control displays, inverter display terminals, and HMIs.
Medical Equipment: Portable monitors, blood glucose meters, and medical testing instruments.
Portable Instruments: Data loggers, multimeters, and environmental monitors for outdoor protable use.
Consumer Electronics: Smart home control panels, small POS machines, and electronic scales feature a simple display interface that enhances user operation experience.

Get Your Exclusive Solution Now

Are you searching for a 13264 monochrome LCD module that offers "high stability, easy integration, and clear display"?

Please contact us with your device type, installation space, and functional requirements. We will provide you with detailed specifications and customized technical support to facilitate rapid product realization!

Product Details.

Hot Tags : 132*64 Graphic LCD Display Cusotmized 132*64 LCD Module Graphic LCD Display Module 132*64 COG module LCD Display Module Factory
