Bar-type LCD 3.93 inch TFT Display 240*1020 Driver IC AXS15231B RGB interface Dictionary Pen Display Solution

Features:

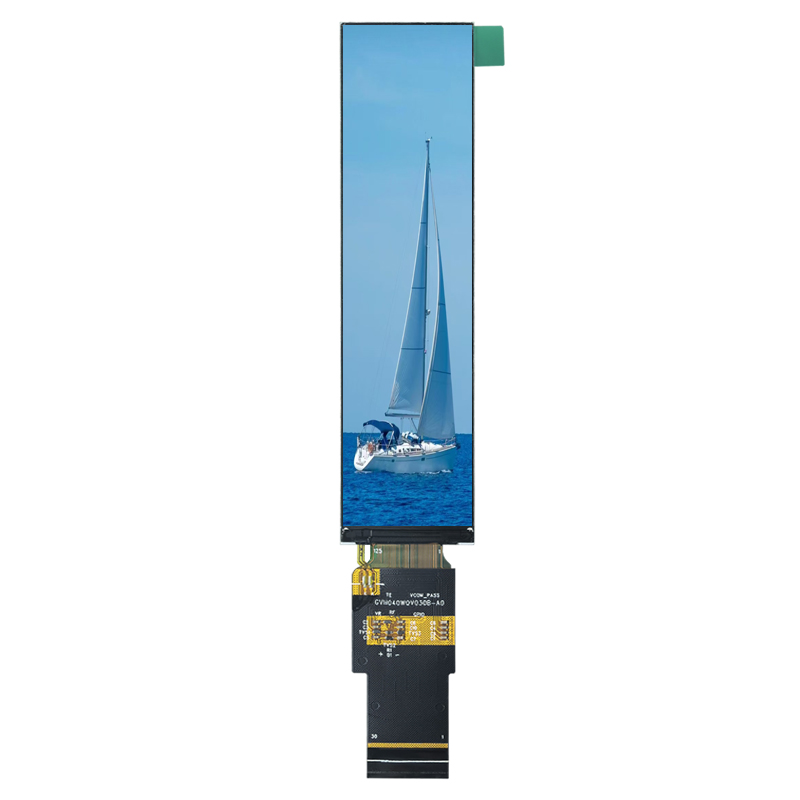

This 3.93 inch TFT LCD bar display is fit for dictionary pen applications.

High-Definition Bar Screen

• The 3.93 inch bar-type screen layout, combined with 240(RGB)×1020 HD resolution, allows for fuller information display and perfectly matches the form factor of dictionary pens.

Narrow Border & Ultra-Thin Design:

• The narrow border design maximizes the active display area, enabling simultaneous presentation of rich information such as words, phonetic symbols, parts of speech, and multi-layer definitions, reducing the need for frequent page-turning.

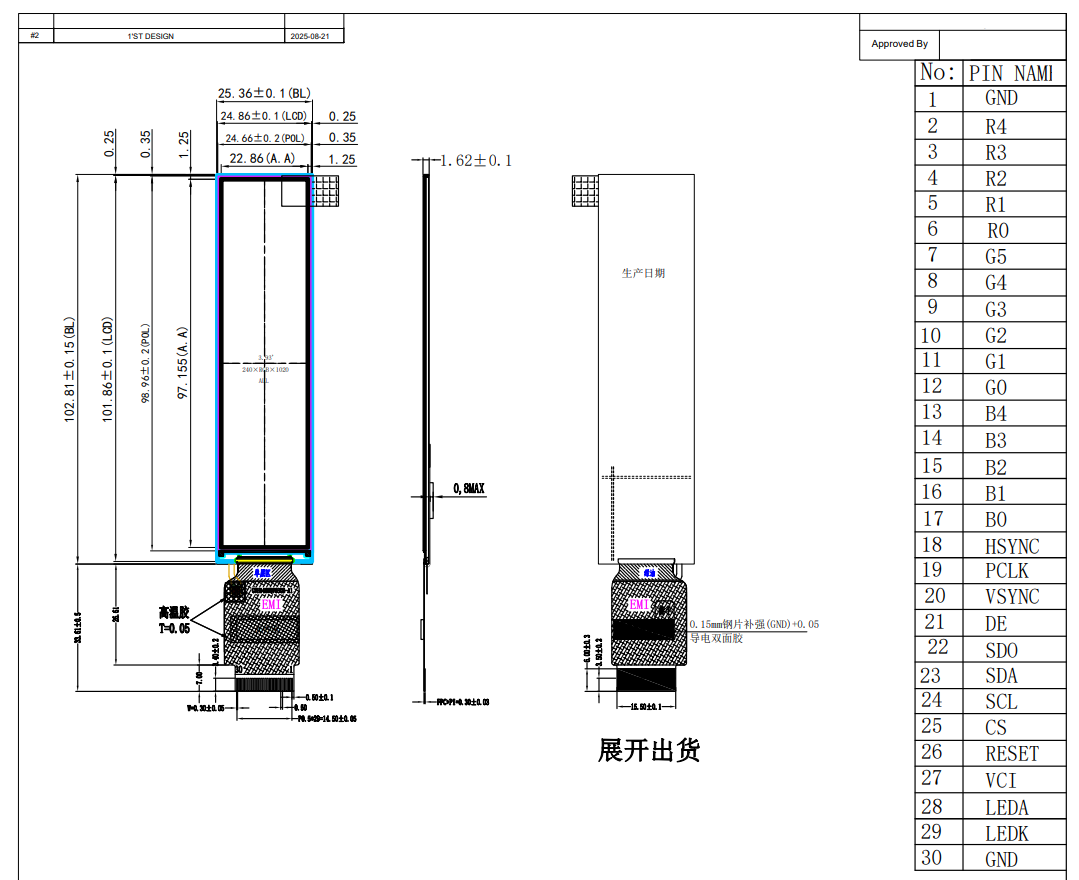

• The 1.62mm ultra-thin module thickness, helps dictionary pens achieve a slim, lightweight, and portable product positioning while enhancing grip comfort.

 IPS Technology:

• With IPS technology, the 3.93 inch IPS LCD achieves wide viewing angles of 85/85/85/85 degrees (L/R/U/D) with consistent color and brightness.
• The IPS hard screen is resistant to pressure-induced water ripple effects, making it ideal for handheld operation scenarios like dictionary pens and offering enhanced durability.

AXS15231B Driver IC:

• The high-performance AXS15231B driver IC integrates source driver, gate driver, and touch control functions, simplifying motherboard circuit design for dictionary pens and reducing integration complexity.
• Supporting a high-speed RGB interface, it ensures efficient and stable data transmission.

Customization Services:

As a professional LCD manufacturer, Shengfeng supports comprehensive customization services for dictionary pen display solutions, catering to the differentiated needs of various brands:

• Appearance & Dimension Customization: Fine-tune the module's external dimensions based on the  dictionary pen's housing design to optimize structural compatibility.
• Brightness & Display Effect Customization: Adjust backlight brightness to match visual requirements for different usage scenarios.
• Interface & Driver Customization: Adapt to specific interface requirements based on the main control solution and provide customized driver debugging support.
• Special Function Customization: Support integration of touch functions, low-power optimization, etc., to enhance product competitiveness.

Applications:

This is a 3.93 inch 240*1020 IPS LCD module, suitable for display solutions required by various portable learning devices such as dictionary pens, translation pens, reading pens, and study pens.

If you are looking for a "Wide Viewing Angle, High-Definition, Ultra-Thin" display solution for your dictionary pen product? Please contact us.
