Size :
5.0"Part No. :
FT-05060-B-L-A0Resolution :
1024*600Viewing Angle :
FreeInterface :
RGBTouch Screen :
CGDriver IC :
ST72328Temperature :
-30℃-80℃Brightness :
1100 cd/㎡Module Outline(mm) :
154.59 * 96.58 * 4.00mmmmA.A Size(mm) :

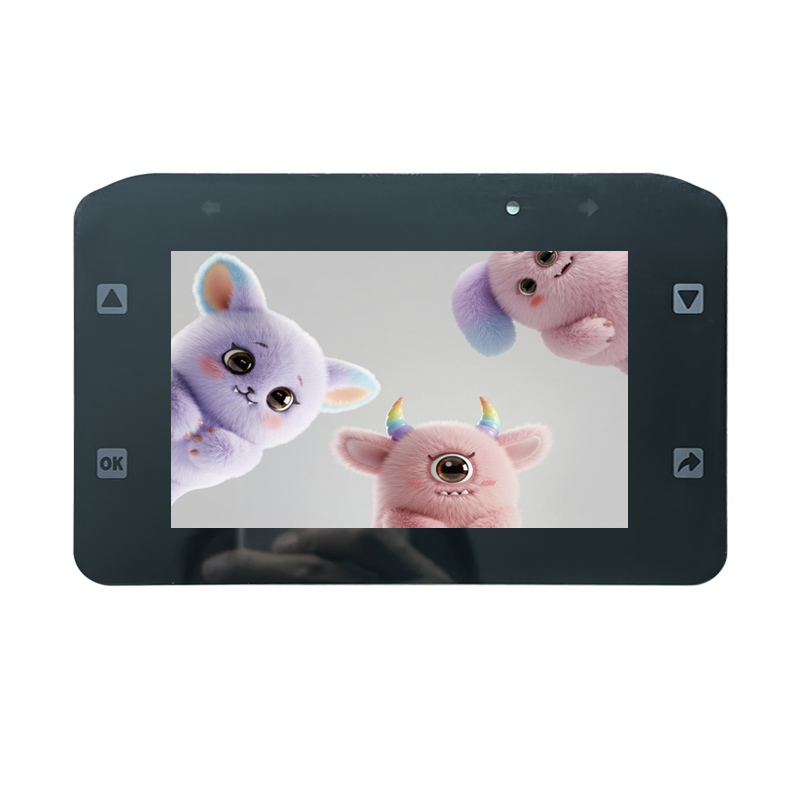

107.83*63.8mmModel#FT-05060-B-L-A, Is an automotive-grade 5.0 inch TFT LCD module，combining 1024×600 (WSVGA) high resolution, 1100 cd/m² high brightness, and IPS full viewing angle technology. It supports -30℃ to +80℃ wide-temperature operation, built with the ST72328 driver IC with 8-bit RGB interface. The 5.0 inch automotive TFT display module is optical bonding with a customized cover glass (special shape + UV-resistant silk printing). This module meets the demanding requirements of automotive and high-end industrial applications for display reliability, sunlight readability, and cosmetic customization.

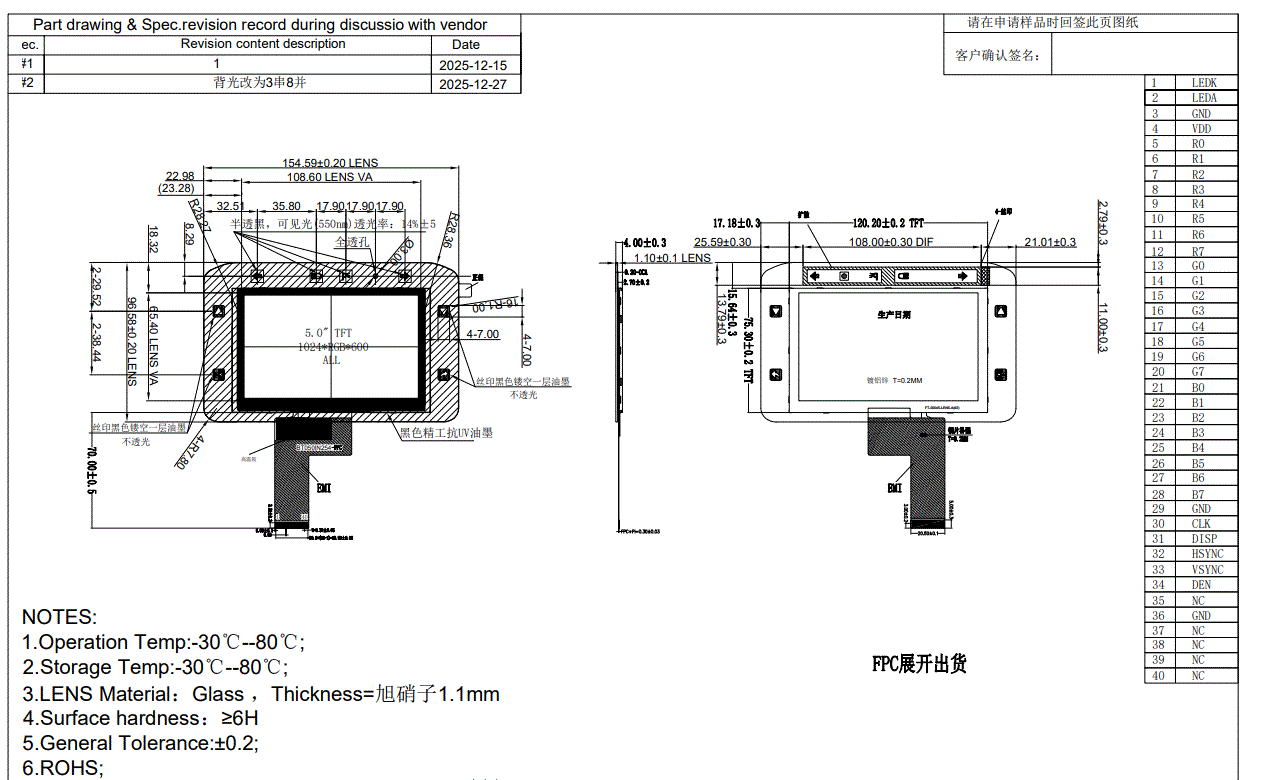

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-05060-B-L-A |
| 2 | LCD Size | 5.0 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 1024(RGB)×600, WSVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 107.83 x 63.80mm |
| 6 | Module Dimension (w/o Lens） | 120.0 x 75.30 x 2.70mm |
| 7 | Module Dimension (w/ lens) | 154.59 x 96.58 x 4.00mm |
| 8 | Viewing Direction | ALL |
| 9 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 10 | Contrast | 1000:1 (Typ.) |
| 11 | Luminance | 1100 cd/㎡ |
| 12 | Backlight | 21 CHIP LED White， |
| 13 | Surface Treatment | Anti-Glare |
| 14 | Temperature Range | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C |
| 15 | Touch Screen | Without Touch， with Cover Glass |
Features:
✅ High-Definition WSVGA for Rich Detail
1024×600 resolution with 17:10 aspect ratio shows more content than standard 800×480 displays
Ideal for navigation, multimedia, and vehicle information interfaces
✅ 1100 cd/㎡ Ultra-High Brightness + Full Viewing Angle
1100 cd/m² ensures clear readability even under direct sunlight
Full viewing angle technology (>80° in all directions) eliminates color shift for passengers and rear-seat viewers, improving driving safety and user experience
✅ Automotive-Grade Wide-Temperature Design for Harsh Environments
Supports -30℃ to +80℃ wide-temperature operation
Passes rigorous automotive-grade reliability validation
Suitable for in-dash infotainment, instrument clusters, HUDs, commercial vehicle displays, and outdoor industrial equipment
✅ Standard RGB Interface for Easy Integration
8-bit RGB interface + ST72328 driver IC
Compatible with mainstream automotive and industrial control boards, shortening development cycles
✅ Custom Cover Glass + Precision UV-Resistant Silk Printing
Custom cover glass breaks free from standard rectangular designs, perfectly fitting embedded installation and enhancing product aesthetics
Silk-printed icons + hollow windows support brand logos, touch buttons, indicator openings, and other personalized needs
Precision UV-resistant Seiko ink effectively resists UV degradation, ensuring no fading or yellowing after long-term outdoor or automotive use
✅ Optical Bonding for Anti-Reflection in Bright Light
Optical bonding eliminates the air gap between LCD and cover glass
Reduces internal reflections, improves contrast and outdoor readability, while enhancing shock resistance and anti-fog performance.
Customization Services
Based on the existing specifications of Model# FT-05060-B-L-A, this 5.0 inch automotive TFT display module can also be customized according to specific customer requirements, such as:
Applications:
Automotive Front-end Installation : Automotive central control, instrument panel, rear-seat entertainment, and air conditioning control screen.
Special Vehicles: Display terminals for construction machinery, agricultural machinery, and mining vehicles.
Outdoor Equipment: Charging piles, intelligent bus stop signs, and marine instruments.
Industrial Handheld Terminals: High-brightness explosion-proof tablets and rugged PDAs.
