2.0 inch TFT LCD 320*240 resolution 12 o'clock ILI9342C 3SPI

The Model #FT-02032-B-N-A is a 2.0 inch TFT LCD display of resolution 320xRGBx240. It is landscape mode and aspect ratio 4:3(W:H). For mechanical detail, this 2.0 inch TFT LCD Display has an active area size of 40.80 x 30.60mm and outline dimension of 46.10 x 40.96 x 2.50mm. The display operates in TN mode, Normally White, Transmissive, main view direction at 12 o'clock, and supports Gray Inversion. This 2.0 inch TFT module is built-in with driver IC ILI9342C supporting 3SPI interface connected via 40pin FPC.

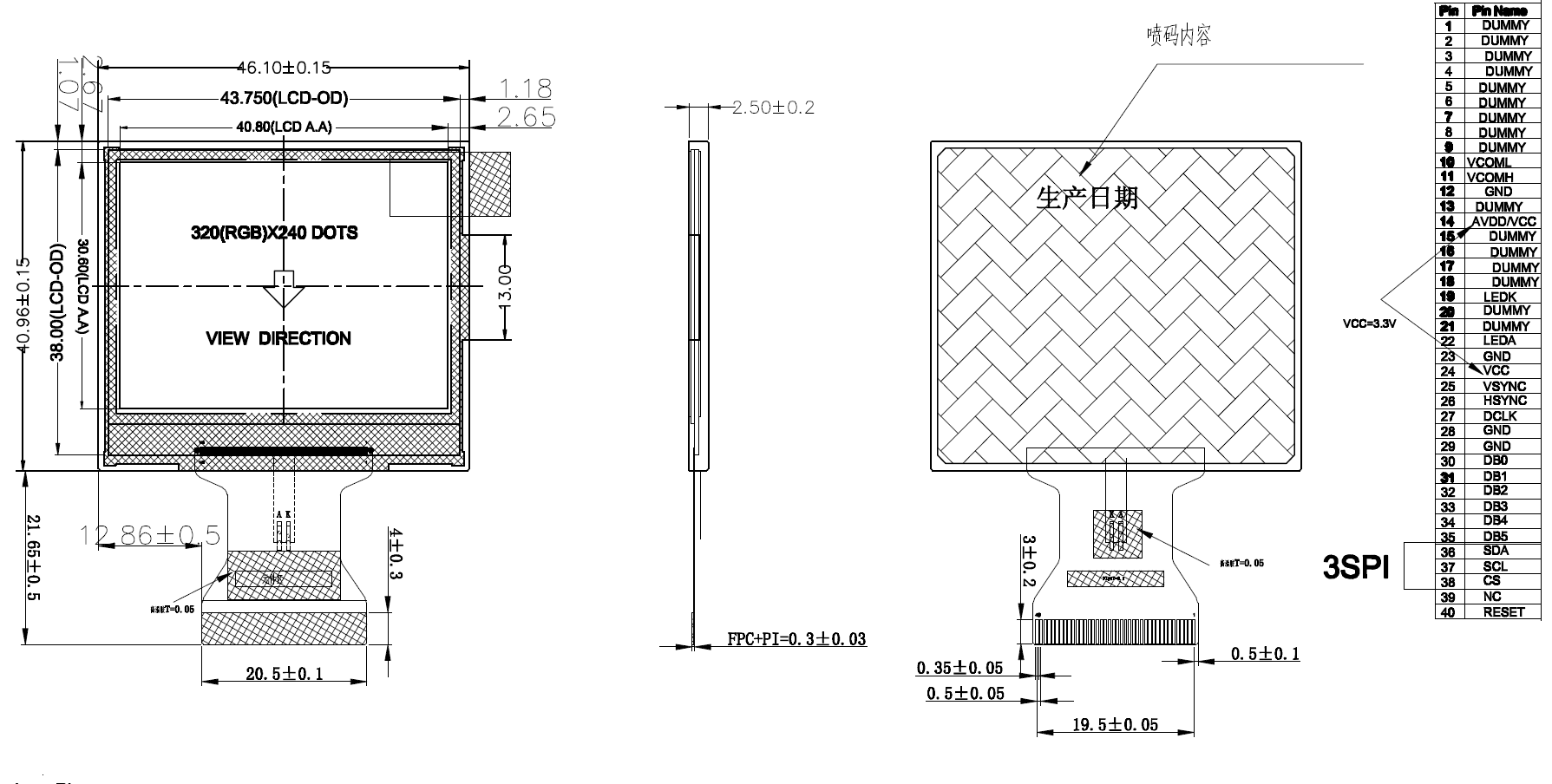

Product Drawing：

Product Specification:

Product Feature:

• Landscape Design:  This 2.0 inch TFT is designed as landscape mode, perfectly suited for various landscape interface needs.
• High Resolution:  With the small size of 2.0 inches, the resolution of 320xRGBx240 provides detailed and sharp image display.
• Display Type:  TN, Normally White, Transmissive, with the best viewing angle at the 12 o'clock direction for an enhanced visual experience.
• Special Feature:  Supports Gray Inversion to adapt to different display requirements.
• Ultra-thin Design:  This 2.0 inch TFT module thickness is only 2.50mm, suitable for integration into devices with limited space.
• Flexible Interface:  Supports the 3SPI interface for strong compatibility and ease of system integration.

Applications:

FT-02032-B-N-A is a high-performance 2.0 inch 320*240 TFT LCD display. With its small size, landscape design, high resolution, ultra-thin and flexible interface, it is recommended for use in various portable devices, instrumentation, and industrial control interfaces.

- Portable Devices: Such as POS machines, e-book readers, etc., providing clear and detailed display effects to enhance user experience.

- Smart Home: Serving as the operating interface for smart devices, enabling interaction with users through displayed menus, control buttons, and other methods.

- Instrumentation: In medical equipment, measurement instruments, automotive dashboards, etc., accurately displaying data for easy reading and operation.
