Industrial-grade 1.14 inch IPS TFT display 135*240 resolution 4SPI Interface

The model#FT-01109-B-N-A, is a 1.14 inch TFT LCD module designed for compact applications, offering a 135x240 resolution as portrait mode. As a high-quality IPS TFT panel, it delivers full-view visibility, vibrant colors, and excellent contrast from any angle. For dimension detail,  it has an active area of 14.86mm x 24.91mm and an outline module dimension of 17.6x31.0x1.63mm. Built with ST7789T3 driver IC, the 1.14 inch IPS TFT LCD module supports 4-wire SPI interface communication via a 8-pin FPC connector. And the module's operating temperatures is ranging from -20°C to 70°C, it guarantees stable performance across diverse industrial environments.

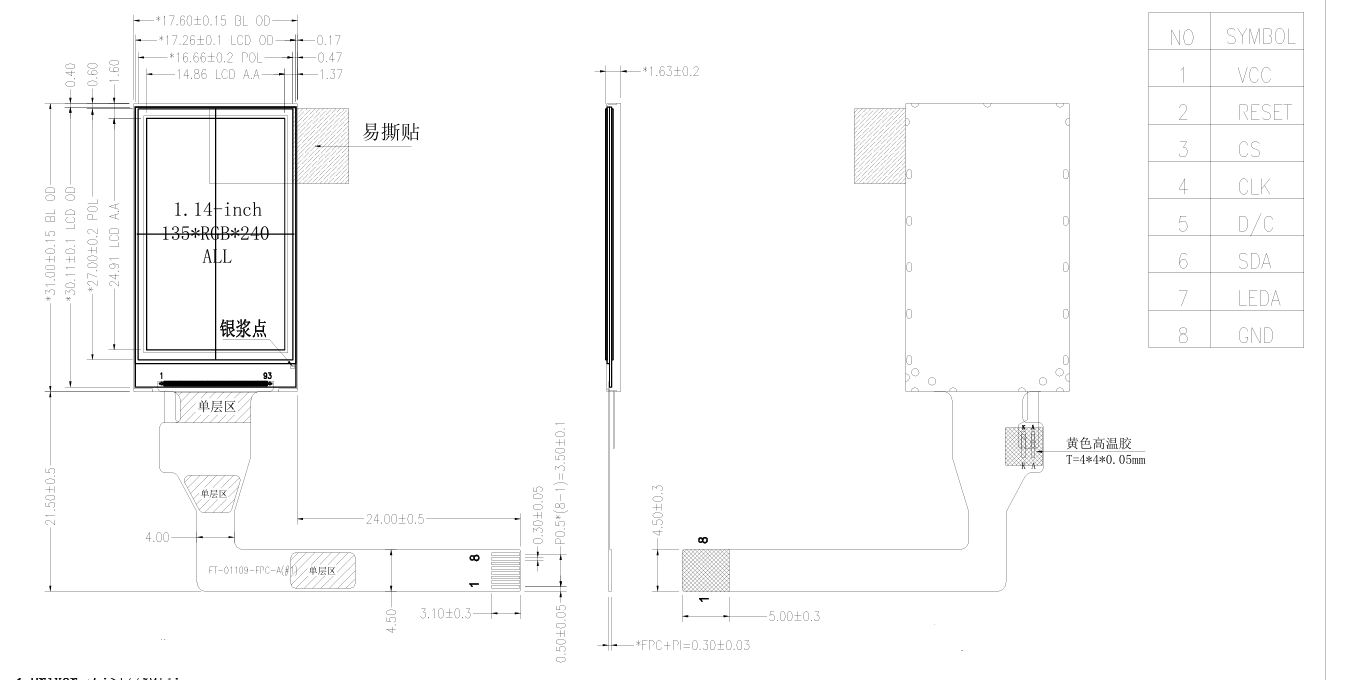

Product Drawing：

Product Specification:

Product Feature:

• High-Resolution Display :  The 1.14 inch TFT LCD 135x240 resolution resolution ensures crisp, detailed images and legible text, ideal for small-form-factor devices.
• Wide Viewing Angle :  As an IPS TFT LCD, it offfers full-view angle, eliminates color distortion and preserves vivid contrast, even at extreme viewing angles.
• Ultra-Thin & Narrow-Bezel :  Module thickness of just 1.63mm and ultra-narrow bezels to maximize the AA area, enabling sleek, compact device designs.
• 4-Wire SPI Interface :  Simplifies circuit design by reducing pin count and hardware complexity, accelerating time-to-market.
• Customizable FPC Solutions :  Flexible FPC tail customization allows adjustments to cable length, position, and pinout to match specific application requirements.
• Optional Touchscreen Integration:  Available supports capacitive touch or resistive touch screens, empowering users to tailor touch interactions for enhanced usering experience.

Applications:

The model# FT-01109-B-N-A,  is a 1.14 inch IPS TFT LCD module meticulously engineered for compact devices, delivering a high 135x240 resolution TFT LCD display. This bar-type 1.14 inch TFT LCD module stands out with its exceptional visual performance, full-view IPS technology, ultra-narrow bezels, and flexible customization services. Its small size and lightweight design make it a go-to solution for portable electronics, embedded systems, and smart home applications, empowering manufacturers to achieve seamless user interaction and sleek, space-efficient product designs.

-- Wearable Technology: Smart bands, medical monitors, and portable instruments.

-- Industrial & IoT: Handheld terminals, environmental sensors, and precision controllers.

-- Home Automation: Smart locks, thermostats, and security panels.
