Part No.: FT-07038
TFT Type: Automotive 7.0 inch TFT LCD Display
Resolution: 1024*600 dots
Viewing Direction: ALL
Interface: 8bit RGB
Driver IC: HX8282
Luminance: 1000 cd/m²
Metal Frame:with Frame
Touch Screen: No touch, with Cover Lens
Item No :
FT-07038The Model# FT-07038, This is an automotive-grade 7.0 inch TFT LCD module with the resolution of 1024(RGB)×600 (WSVGA), aspect ratio of 16:9 (W:H), to be landscape mode. Its LCD Active Area (AA) size is 154.21×85.92mm (W×H), and the TFT module outline dimension is 164.90×100.0×5.42mm (L×W×H). Equipped with ADS (Advanced Super-Dimension Switch) normally black display technology, this module achieves ultra-wide viewing angles of 85/85/85/85° (Typ.) (CR≥10). It is driven by the HX8282 IC, featuring an 8-bit RGB interface and a 50-pin FPC connector.
As a high-brightness 7.0 inch TFT module, its surface luminance reaches 1000cd/m², ensuring sunlight readability. With an operating temperature range of -30℃ to 80℃, the 7.0 inch TFT LCD module meets stringent automotive-grade reliability standards.
The Model# FT-07038 also includes a 1.8mm custom-designed glass cover lens with optical bonding for enhanced durability and display performance.

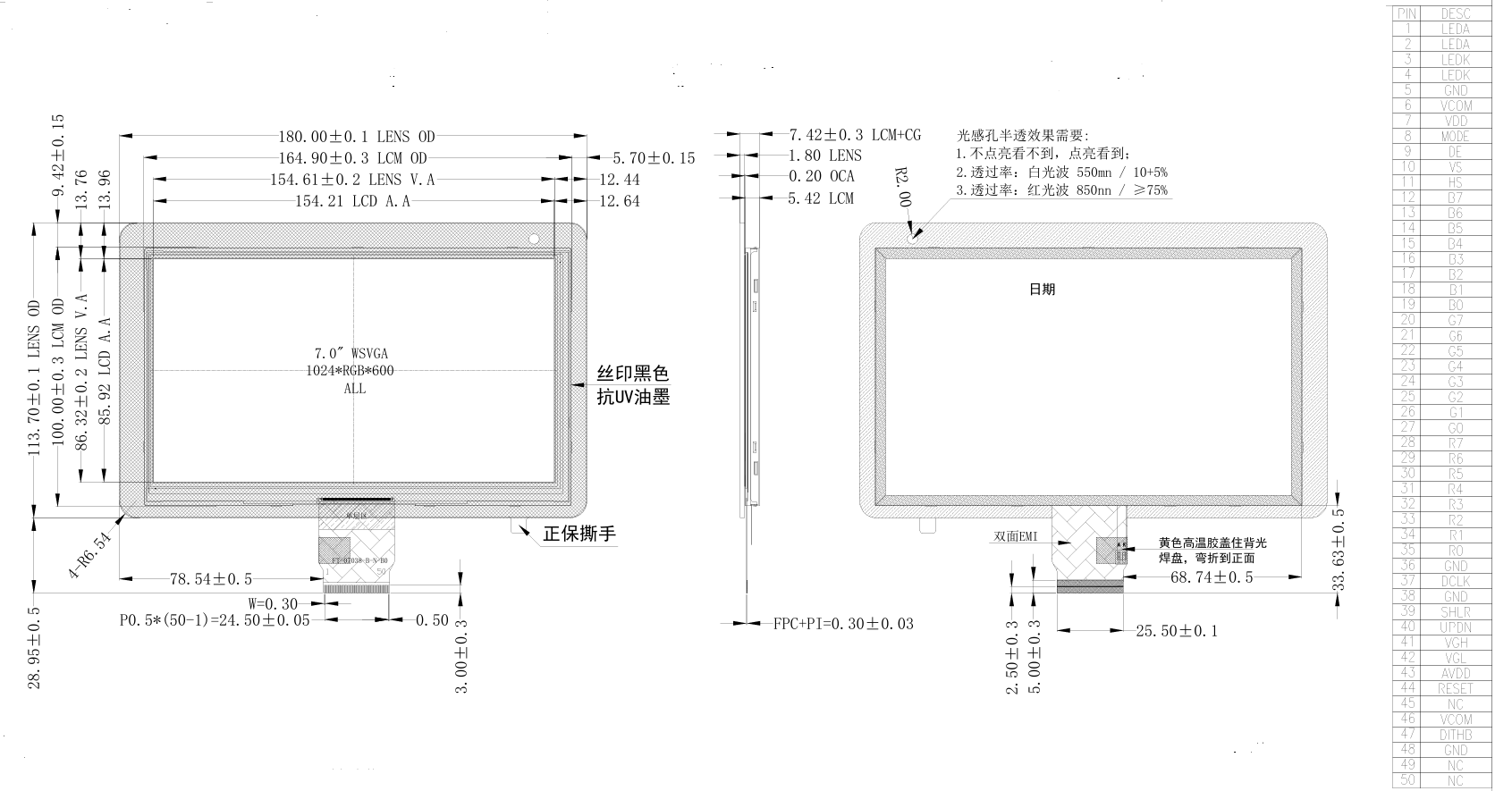

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-07038 |
| 2 | LCD Size | Automotive 7 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 1024(RGB)×600, WSVGA |
| 4 | Display Mode | ADS, Normally Black, Transmissive |
| 5 | LCD Active Area | 154.21 x 85.92mm |
| 6 | LCD Module Outline | 164.9 x 100.0 x 5.42mm |
| 7 | Cover Lens Dimension | 180.0 x 113.7 x 7.42mm |
| 8 | Viewing Direction | All |
| 9 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 10 | Contrast | 1000:1 (Typ.) |
| 11 | Luminance | 1000 cd/㎡ |
| 12 | Backlight | 32 CHIP LED White， |
| 13 | Surface Treatment | Anti-Glare |
| 14 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| 15 | Touch Screen | No touch, with Cover lens |
Features:
🚗 Automotive-Grade 7.0-inch TFT LCD Module
🔨 Automotive-Grade 7.0 inch Custom Cover Lens
Optical Bonding Technology: Eliminates air gaps between the cover lens and TFT module via optical bonding, achieving a seamless "all-black" effect while enhancing display contrast and touch sensitivity.
Applications:
The model#FT-07038, it is a High-Performance Display Solution Engineered for Automotive Environments
This 7.0 inch TFT LCD module, combined with automotive-grade manufacturing and a customizable glass cover, featuring of high brightness, extremely wide temperature, and viewing angles, meeting rigorous demands for automotive navigation, instrument clusters, and central control systems. It empowers the creation of premium, intelligent cockpit experiences.
Unlock a New Era of Automotive Displays—Customize Now!
Tailored Solutions: From outline to interface configurations, we meet your unique requirements.
Fast Response Support: Professional teams provide technical consultations, sample testing, and mass production assistance.
Contact us today to elevate your automotive display innovation!
