Size :
5.0"Part No. :
FT-05702-B-N-A0Resolution :
640*480Viewing Angle :
FreeInterface :
RGBTouch Screen :
/Driver IC :
JD9168STemperature :
-20℃-70℃Brightness :
500 cd/㎡Module Outline(mm) :
127.00 * 98.43 * 8.20mmA.A Size(mm) :

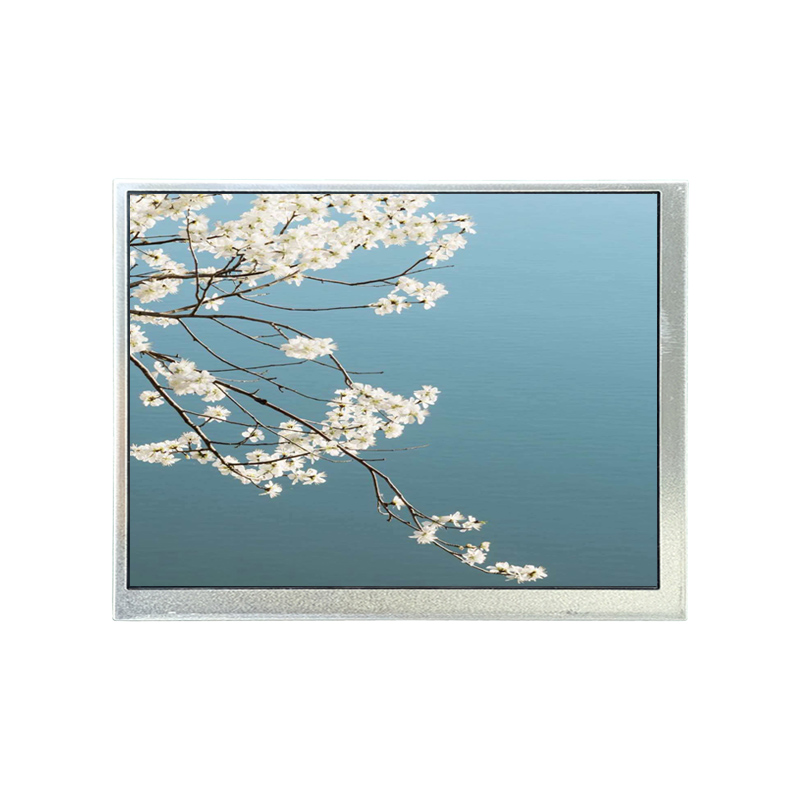

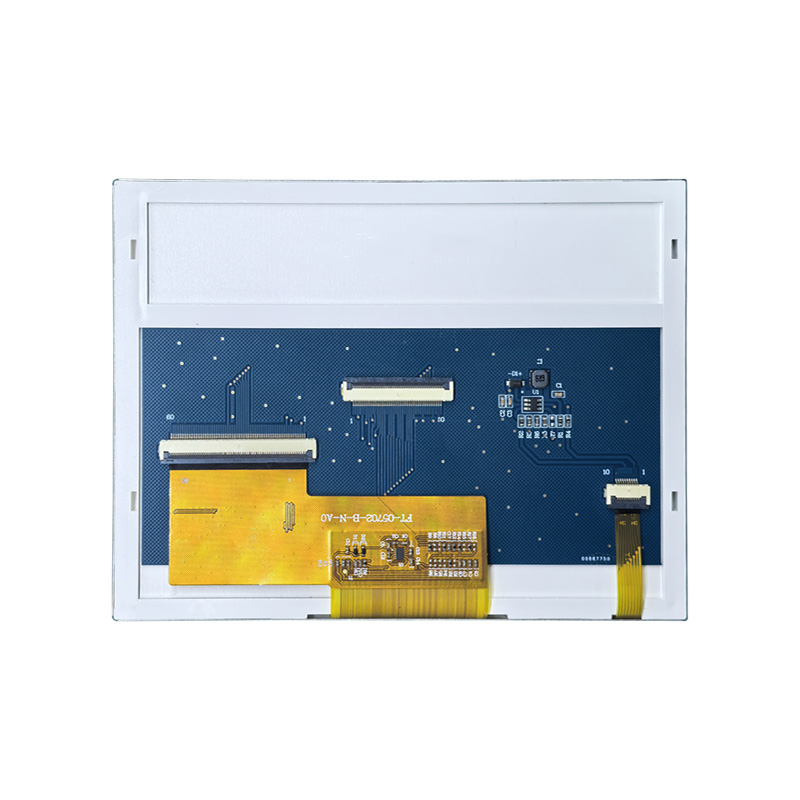

115.20 * 86.40 mmThe model#FT-05702-B-N-A0 is a 5.7 inch TFT display module features 640×480 VGA resolution, classic 4:3 aspect ratio, and landscape mode. Its active area measures 115.2 (W) × 86.40 (H) mm, with module outline dimensions of 127.00 × 98.43 × 8.20 mm.
The 5.7 inch size is a well-established form factor widely used in industrial control, medical equipment, automotive systems, and human-machine interfaces (HMI) , making it a versatile mid-to-small-sized display solution for professional applications.

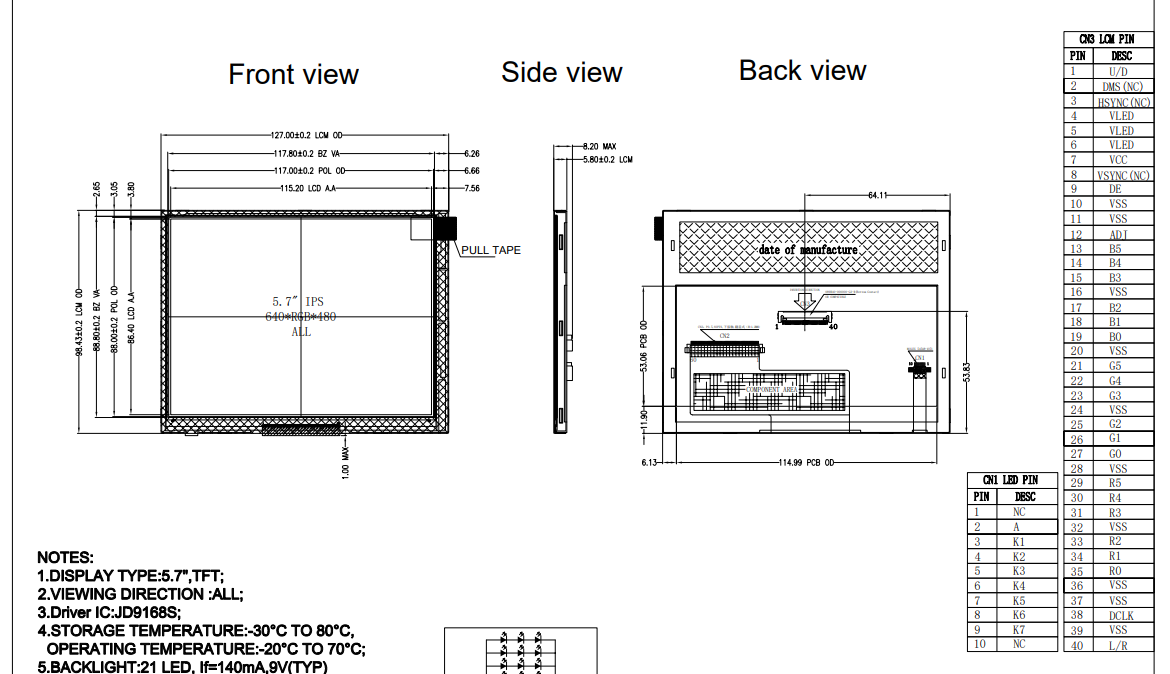

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-05702-B-N-A |
| 2 | LCD Size | 5.7 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 640(RGB)×480, VGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 115.20 x 86.40mm |
| 6 | Module Dimension | 127.00 x 98.430 x 8.20mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 500 cd/㎡ |
| 11 | Backlight | 21 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without Touch |
Features:
☀️ 5.7" Golden Size – Designed for Embedded Systems
The 5.7 inch landscape display has proven to be the golden ratio in industrial and medical fields over many years. It strikes the perfect balance between sufficient active viewing area and compact mechanical integration, allowing easy integration into CNC machine panels, ultrasound cart consoles, or vehicle dashboards, etc.
🌐 VGA Resolution (640×480) – Ecosystem Compatible, Plug & Play
With the industry-standard 640×480 VGA resolution and 4:3 landscape display, there is no need to modify your existing software architecture or replace expensive main control chips. This 5.7 inch TFT LCD module is hardware-compatible with mainstream ARM boards, industrial motherboards, and driver cards, significantly reducing R&D and debugging costs while accelerating time-to-market.
🛡️ Industrial-Grade Quality – Reliable Operation in Harsh Environments
Applications:
The 5.7" 640×480 TFT display module is tailored for industrial, medical, automotive, and HMI applications, offering universal compatibility across:
🏭 Industrial Automation
CNC machine operation panels, PLC HMIs, industrial robot control panels, smart meters
🏥 Medical & Healthcare
Ultrasound diagnostic display modules, patient monitor screens, portable ECG devices, rehabilitation equipment terminals
🚗 Automotive Systems
Construction vehicle dashboards, bus information terminals, special vehicle monitoring displays
👆 Human-Machine Interface (HMI)
Self-service kiosks, smart building intercom screens, industrial embedded tablets
Contact Us
To learn more about this 5.7 inch TFT LCD module or to discuss custom requirements, please feel free to contact us. We look forward to providing professional solutions and attentive service, working together to empower intelligent display upgrades across industries.
