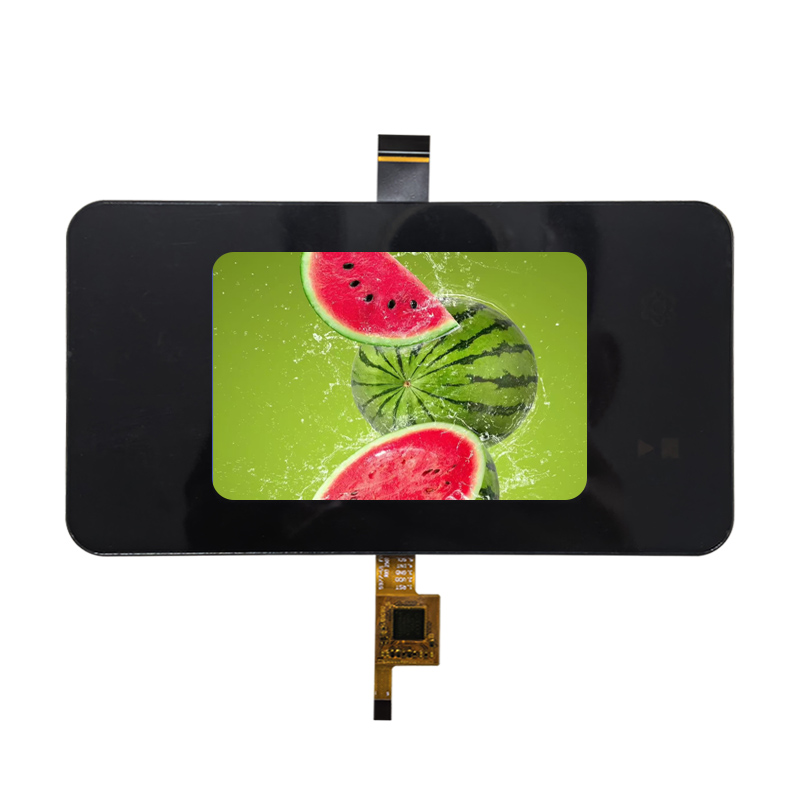

3.5 inch Touch Display 320*480 IPS MCU interface Customized Touch Cover Glass

Model# FT-035106-B-C-A, is a 3.5 inch Touch Display that integrates a 3.5 inch IPS TFT of 320×480 resolution and a customized capacitive touchscreen， is providing a one-stop Display Solution from display to touch control. Featuring of IPS wide-view technology, customized touch screen, and optical bonding between LCD and touch, this 3.5 inch Touch Display Module is widely applicable in industrial control, smart home systems, medical devices, handheld terminals, and more, meeting stringent customer demands for display performance, interactive experience, and appearance customization.

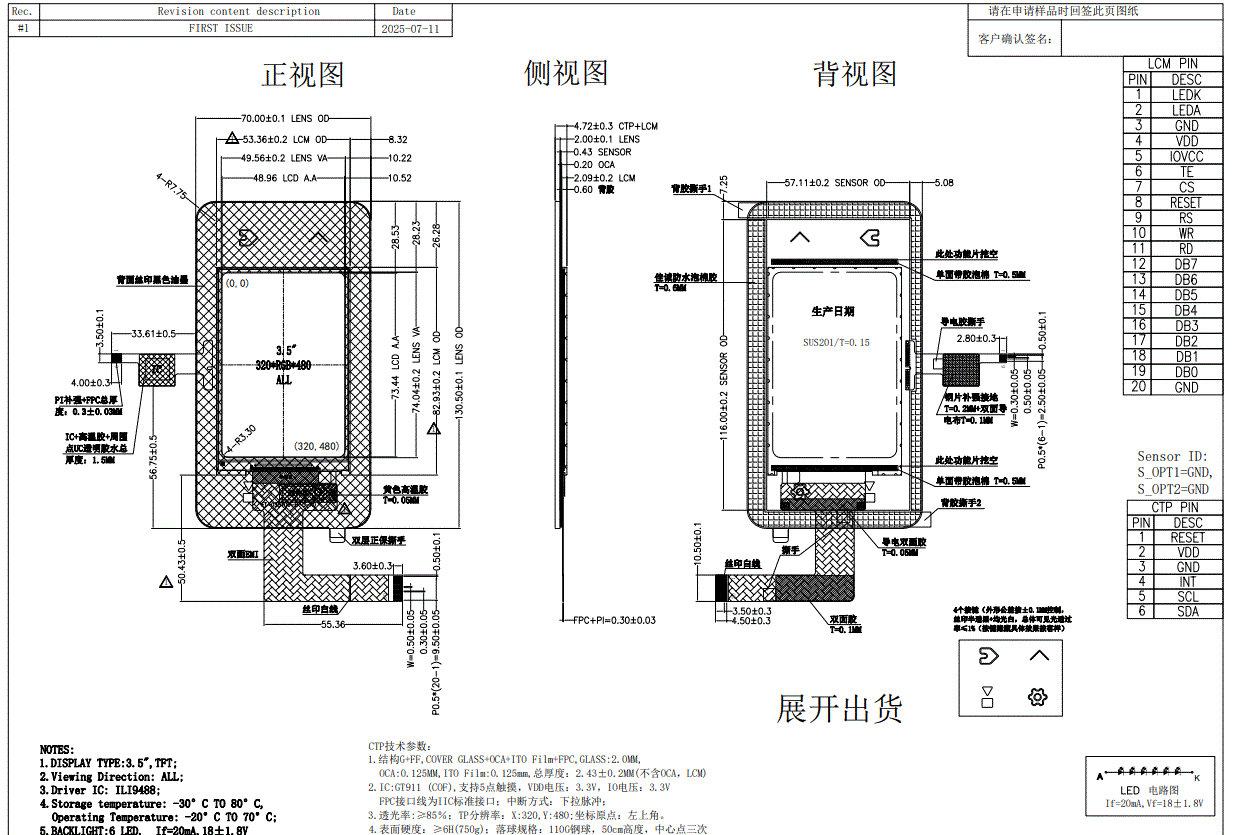

Product Drawing：

Product Specification:

Product Feature:

1. 3.5-inch TFT LCD Display:

• Portrait Mode:  320(RGB)×480 resolution, 2:3 aspect ratio, optimized for vertical interaction scenarios.
• IPS Technology:  85°/85°/85°/85° wide viewing angles, 1000:1 contrast ratio, ensuring consistent color accuracy from all angles.
• Ultra-Thin Design:  The LCD Module thickness of only 2.09mm, lightweight and space-saving, facilitating sleek product design.
• MCU Interface:  Driven by ILI9488 IC, supports MCU 8-bit interface, offering strong compatibility and ease of development.

2. 3.5-inch Customized Touch Solution:

• Multi-Touch & Button Support:  G+FF structure supports 5-point touch within the display active area and external button touch, meeting complex interaction needs.
• High-Performance Drive IC:  Features GT911 touch chip with IIC interface communication, ensuring fast response and strong anti-interference capability.
• Customized Cover Lens:

        --Size & Color: Customized dimensions, colors, and silk-screen patterns to create unique brand identities.

       --Durability: 2.0mm thickness, surface hardness ≥6H (750g), scratch and wear-resistant, extending product lifespan.

3. Product Advantages:

• All-in-One Display Solution:  Integrates display and touch functions, reducing client-side development and assembly complexity, shortening time-to-market.
• High Customizability:  From cover glass design to touch functionality, comprehensively meets personalized needs, enhancing product differentiation.
• Ultra-Thin Module Design: Total module thickness of only 4.72mm, lightweight and compact, ideal for space-constrained applications.
• Optical Bonding Process:  Opitcal bonding between LCD and CTP (capacitive touch panel) eliminates air gaps, improves light transmittance, and enhances display clarity and touch experience.

Customization Services:

We offer deeply flexible customization options, including:

Display Customization:  Adjustable brightness (e.g., 300-1000 nits), interface types (optional RGB/SPI/MIPI), FPC length/pin definitions.

Touch Customization:  Touch area layout design, customized gesture recognition, drive protocol adaptation.

Cover Lens Customization:  Size/thickness/shape/color, silk-screen logos/patterns, surface treatment coatings, enabling differentiated product design.

Applications:

• Industrial Control:  HMI interfaces, PLC control terminals, instrument displays.
• Smart Home:  Smart door locks, temperature control panels, appliance control screens.
• Medical Devices:  Portable monitors, diagnostic terminals, handheld detection equipment.
• Consumer Electronics:  POS machines, e-books, gaming devices, educational tablets.
