1.9 inch IPS TFT LCD 170*320 500 cd/m² ST7789V2 SPI

The Model#FT-01903-B-N-A, is 1.9 inch TFT display with resolution of 170(RGB) * 320, in portrait mode. It is IPS TFT LCD, featured of full view angle and high contrast. The display module outline dimension is 25.8x49.72x1.57mm, and active area size of 22.70x42.72mm. This 1.9 inch TFT LCD display is built-in with driver IC ST7789V2 supporting 4-SPI interface connected by 10pin FPC.

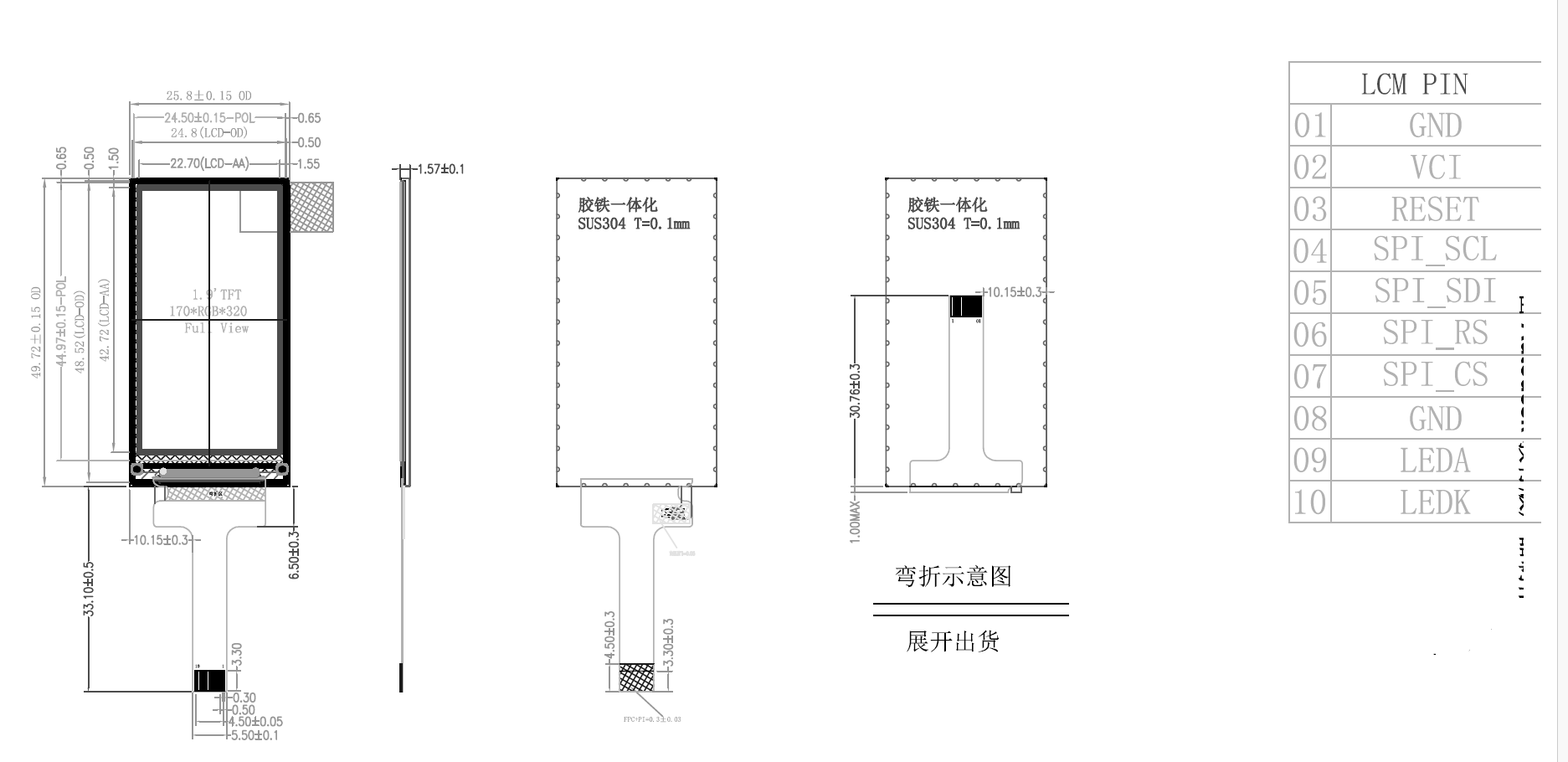

Product Drawing：

Product Specification:

Product Feature:

• Resolution:  This 1.9 inch TFT display features a resolution of 170(RGB) * 320, offering delicate picture quality and a clear visual experience.
• IPS TFT LCD:  The IPS technology enables full-view high contrast, ensuring consistent and excellent color performance from any viewing angle.
• Portrait Mode Screen:  Designed for portrait applications, it is suitable for various devices requiring vertical display interfaces, providing a more intuitive operation experience.
• Brightness & Contrast:  With a brightness of 500 nits and a contrast ratio of 900:1, it offers high brightness and contrast, making it suitable for use in various lighting conditions.
• Module Thickness:  Without front metal frame, the entire module measures only 1.57mm in thickness, making it lightweight, portable, space-saving, and ideal for compact designs.
• 4-SPI Interface:  The 1.9 inch TFT module provides 4SPI interface for efficient data transmission, meeting the display needs for quick response.

Shengfeng Technology, we are professional LCD display manufacturer in China, and are dedicated to providing customers with excellent display solutions!

Model#FT-01903-B-N-A, it is one of the standard 1.9 inch TFT LCD modules in MP status. If you have other specification requirements, please feel free to contact us. We can provide customized solutions, including backlight, FPC, metal frame, touchscreen, and other customized molding services, with long-term supply to meet your personalized needs.

Applications:

With its small size, high resolution, high brightness, and wide viewing angle, this 1.9 inch IPS TFT display is widely used in industrial control, medical equipment, instrumentation, household appliances, communication devices, handheld devices, beauty equipment, consumer electronics, and other fields, making it an ideal choice for display solutions in small electronic devices.
