2.46 inch TFT LCD display WQVGA 272×480 IPS TFT LCD SPI/MCU Interface 500cd/m2

The model# FT-024118-B-N-A is a 2.46 inch TFT LCD display module featuring a resolution of 272(RGB)×480 (WQVGA) with a 9:16 aspect ratio (W:H) in portrait mode. The active area measures 30.19mm × 53.28mm, while the module's outline dimensions are 34.28mm × 64.46mm × 2.02mm. Leveraging IPS panel technology, it delivers exceptional color accuracy and full viewing-angle performance. With a surface brightness of 500 cd/m², it ensures crystal-clear readability. This 2.46 inch TFT LCD module is built with the driver IC ST7365P, supports MCU 8-bit/SPI multi-interface options, and includes a 24-pin FPC connector.

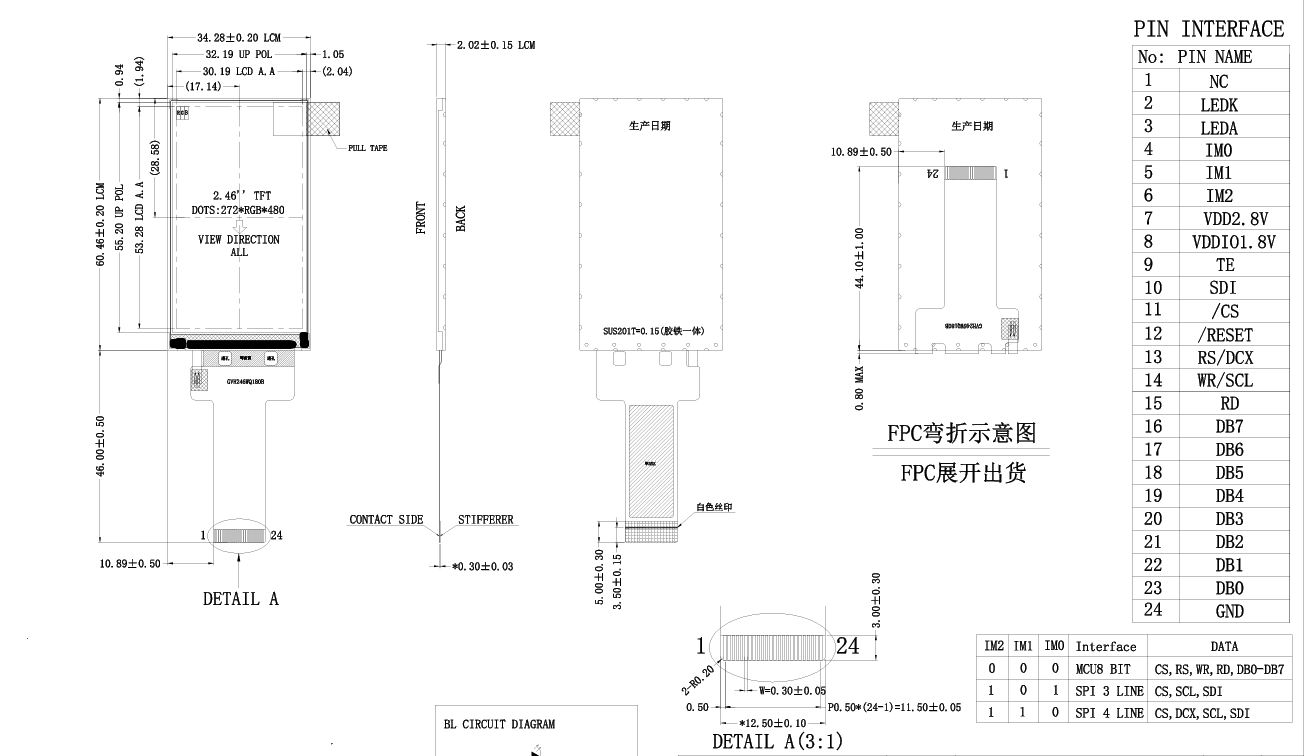

Product Drawing：

Product Specification:

Product Feature:

High-Definition Vertical Display

✅272×480 High Resolution: Delivers sharp images and crisp text, meeting the stringent display precision demands of smart devices.

✅9:16 Portrait Aspect Ratio: Ideal for vertical-interaction scenarios in handheld devices, wearables, industrial terminals, and more, minimizing cropping and adaptation costs.

IPS Full Viewing Angle

✅Wide Viewing Technology: Offers a 170° viewing angle with no color shift or brightness loss from any direction, enhancing usability in collaborative work, public displays, and similar settings.

✅High Color Accuracy: The IPS panel ensures precise color reproduction, making it suitable for industries with demanding display standards, such as medical, retail, and navigation.

High-Brightness Backlight

✅500 cd/m² Brightness: Ensures screen content remains legible under direct sunlight, eliminating "black screen" issues in outdoor environments.

✅Integrated Metal-plastic Frame Backlight: Boasts a stable structure with high-temperature resistance and shock tolerance, meeting rigorous requirements for automotive, industrial, and other harsh environments.

Flexible Interface Options

✅Dual-Interface Support: Seamlessly switches between MCU 8-bit/SPI 3-wire/4-wire modes, ensuring compatibility with mainstream host controllers and reducing development complexity.

✅24-Pin FPC Flexible Connection: The lightweight, bendable cable saves internal space and adapts effortlessly to compact product designs.

Flexible Customization Solutions

Based on the specifications of the standard model# FT-024118, 2.46 inch IPS TFT module, we offer tailored solutions to meet diverse customer requirements:

✅Brightness Customization

Adjustable Backlight Brightness: Supports 200–1,200 cd/m² range to adapt to various lighting conditions:

High-Light Environments (e.g., Automotive Navigation): Ensures screen clarity under direct sunlight.

Low-Light Environments (e.g., Medical Devices): Optimizes readability in dimly lit settings.

✅ FPC Flexible Customization

Cable Adjustments: Modify length, position, and pin layout of the 24-pin FPC to align with customer PCB designs.

EMC Optimization: Enhances electromagnetic compatibility (EMC) for stable performance in complex electronic systems.

✅ Touchscreen Integration

Capacitive Touchscreen:  High sensitivity, multi-touch support.

Resistive Touchscreen: Operable with gloves/wet hands.

Applications: Industrial control panels, outdoor terminals.

✅Cover Glass Customization

Coating Options:  AR(Anti-Reflective)/AG (Anti-Glare) AF (Anti-Fingerprint)

Applications:

The model# FT-024118,  2.46 inch IPS TFT LCD module, with its 272×480 resolution, IPS full-view display, 500 cd/m² brightness, and dual MCU/SPI interfaces, is ideal for:

Handheld Devices like POS Terminals, Medical Handheld Terminals

Automotive Electronics like In-Car Navigation, Head-Up Displays (HUD)

Industrial Human-Machine Interfaces (HMI)Instrument Panels

Consumer Smart Wearables

Smart Home Controllers
