Automotive 5.0 inch 1024*600 IPS TFT ST72328 RGB interface High Brightness 1100cd/m2

✅ High-Definition Display | 1024×600 WSVGA Resolution

5.0 inch display with 1024(RGB)×600 resolution (WSVGA), offering higher pixel density, sharp text edges, and precise image detail reproduction.

The display (AA) size is 107.83×63.8mm, maximizing the effective display area and providing significantly more information capacity than conventional 5 inch 800×480 TFT displays.

✅ 1100cd/m² Ultra-High Brightness | Visible and Readable in Strong Light

High-brightness backlight is 1100cd/m² (typ), ensuring clear visibility even under direct sunlight, eliminating the issue of "whitening and unreadability" in strong light conditions.

The backlight utilizes long-life LED sources with a lifespan of ≥50,000 hours, low brightness decay, and consistent long-term performance.

Suitable for applications in strong lighting environments such as in-vehicle central consoles, outdoor instrumentation, construction machinery, and marine displays.

✅ All-Angle Viewing Display | 178° Wide Viewing Angle Without Color Shift

Full-view display technology provides an ultra-wide viewing angle of 178° both vertically and horizontally, ensuring no distortion in color, brightness, or contrast when viewed from any angle.

Consistent visual experience for multiple passengers in vehicles and multi-angle operation of industrial equipment.

✅ Automotive-Grade Wide Temperature Range | Stable Operation in Extreme Environments (-30℃~80℃)

Operating extremely-wide temperature range: -30℃ to +80℃, meeting the demands of automotive and industrial scenarios with extreme cold, high temperatures, and rapid temperature changes.

Vibration and interference-resistant design, compliant with automotive ISO/TS 16949 standards, suitable for trucks, buses, special vehicles, and industrial equipment.

✅ High-Performance Driver | ST72328 Professional Driver IC

Equipped with ST72328 driver IC, optimized for automotive and industrial displays, ensuring stable signal processing and fast response times.

Supports 8-bit RGB interface and a 40-pin standard FPC interface, compatible with mainstream automotive MCUs, industrial main controllers, and embedded platforms.

EMI-resistant design ensures strong anti-interference in automotive power environments, preventing signal jitter, screen tearing, and horizontal stripe interference.

✅ Ultra-Thin and Compact Structure | 2.7mm Module Thickness

Compact structure with minimal space occupation, suitable for in-vehicle central consoles, instrumentation, handheld devices, and embedded installations.

Customization Services

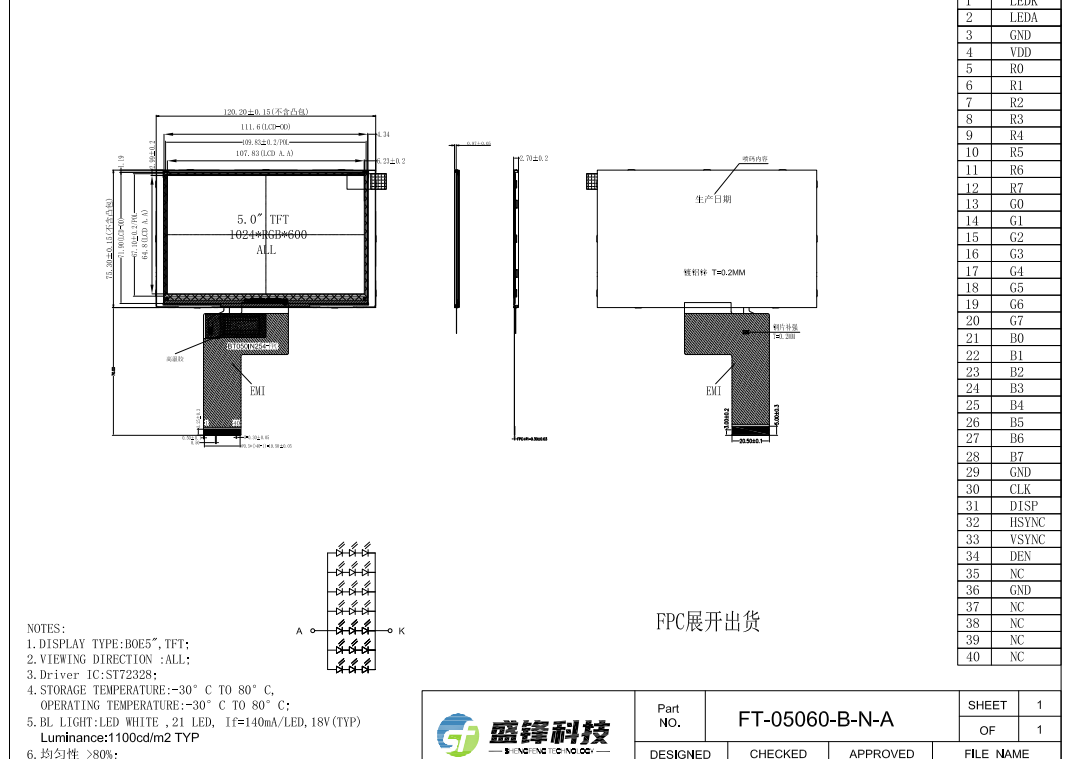

Based on the existing specifications of Model# FT-05060-B-N-A, this 5.0 inch automotive-grade TFT display can also be customized according to specific customer requirements, such as:

• Customizable capacitive touch screen (CTP), resistive touch, high-brightness enhancement, wide-temperature reinforcement, and anti-glare (AG) treatment.
• Support for interface customization (MIPI/LVDS/RGB options), FPC length/direction customization, and backlight brightness customization.
• Technical support, schematic references, driver debugging, and sample testing are provided to assist customers in rapid mass production.

Applications:

This 5.0 inch automotive-grade TFT LCD module is widely used in various fields due to its core advantages of high reliability, high-definition and high-brightness, and wide-temperature stability, including:

• Automotive Electronics:  In-vehicle central console displays, automotive navigation systems, automotive instrumentation, rear-seat entertainment, and displays for special vehicles.
• Industrial Control:  Industrial HMI, PLC human-machine interfaces, CNC equipment, industrial tablets, and outdoor instrumentation.
• Smart Terminals:  Smart home central controls, outdoor security displays, power meters, in-vehicle recorders, and displays for construction machinery.
