Size :
5.0"Part No. :
FT-05026-B-N-AResolution :
800*480Viewing Angle :
FreeInterface :
LVDSTouch Screen :
/Driver IC :
TBDTemperature :
-20℃-70℃Brightness :
500 cd/㎡Module Outline(mm) :
120.10*75.20*2.85A.A Size(mm) :
108.00*64.80The Model# FT-05026-B-N-A， is a 5.0 inch IPS TFT LCD display with a resolution of 800(RGB)×480 (WVGA), of classic 15:9 (W:H) aspect ratio in landscape mode. Its LCD Active Area (AA) of 108.0 × 104.8 mm (W×H), and the module dimension of 120.1 × 75.2 × 2.85 mm (W×H x T). The backlight is designed as 9S2P WLED styple, featured of brightness 500 cd/m2. This 5.0 inch TFT LCD module is built with ST7265 driver IC, supports LVDS interface (40PIN), and includes a reserved CTP (Capacitive Touch Panel) external interface connected via FPC.

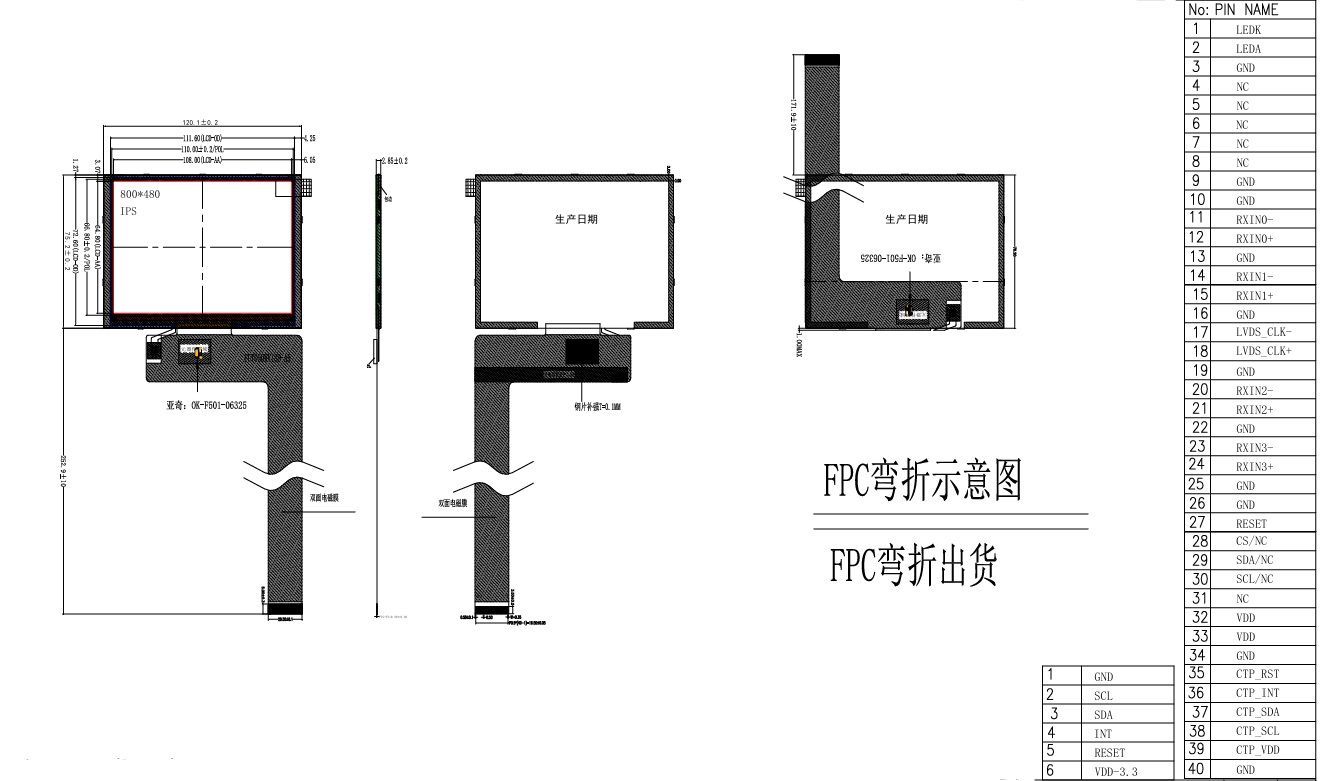

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-05026-B-N-A |
| 2 | LCD Size | 5.0 inch IPS TFT LCD |
| 3 | Resolution (Pixels) | 800(RGB)×480, WVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 108.0 × 64.8mm |
| 6 | Module Dimension | 120.1 × 75.2 × 2.85 mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 500 cd/㎡ |
| 11 | Backlight | 18 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch, |
Features:
✅ Classic Specifications, High Cost-Performance
5.0 inch TFT with 800×480 WVGA resolution and a 15:9 landscape golden ratio, ideal for industrial control, POS terminals, and handheld devices.
✅ IPS Wide Viewing Angles, No Color Shift
The 5.0 inch IPS TFT LCD display ensures no color deviation or grayscale inversion at 160° viewing angles, perfect for medical devices and industrial instruments requiring side-viewing.
✅ High Brightness, Sunlight-Readable
500 cd/m²high brightness + anti-glare surface treatment ensures clarity in high-light environments like outdoor POS machines and automotive displays.
✅ Stable Interface, Strong EMI Resistance
The LVDS interface supports long-distance signal transmission and is compatible with most main control boards.
Enhanced 40% EMI shielding (double-sided EMI film design) ensures stable operation in industrial environments.
✅ Touch Function, Rapid Integration
Reserved CTP expansion port enables quick integration of touch functionality, transforming it into a 5.0 inch Touch Display Module.
✅ Ultra-Thin Design
With a 2.85 mm ultra-slim module thickness, it fits portable devices with space constraints. The FPC connector supports 180° bending installation.
✅ Long Lifetime, Low Maintenance Costs
30,000-hour LED backlight lifetime reduces replacement frequency, ensuring this 5.0 inch TFT display module long-term stable operation..
Applications:
Based on its wide viewing angle, high brightness, high anti-EMI performance, LVDS interface and touch function availability, the model# FT-05026 is ideal for industrial display and outdoor high-brightness applications, including:
- Industrial Control: HMI interfaces, PLC displays, automation equipment.
- Smart Home: Smart door locks, thermostat panels, security monitoring terminals.
- Medical Devices: Portable ultrasound machines, patient monitors, medical testing equipment.
- Automotive Displays: Dashcams, rearview cameras, in-car navigation.
- Consumer Electronics: Handheld POS terminals, e-readers, gaming devices.
