Size :
2.3"Part No. :
FT-02307-B-N-AResolution :
100*310Viewing Angle :
FreeInterface :
MCUTouch Screen :
/Driver IC :
ST7789T3Temperature :
-20℃-70℃Brightness :
700 cd/㎡Module Outline(mm) :
21.10*63.60*1.87A.A Size(mm) :
18.00*55.80The Model# FT-02307-B-N-A, is a typical bar-type display. It is a 2.3 inch TFT LCD display with a resolution of 100(RGB)×310. Its aspect ratio<1:3, forms a golden proportion that perfectly matches educational products such as smart translation pens.
Its LCD Active Area (AA) size is 18.00x55.80 mm (W:H), and the module outline dimensions is 21.10(H)x63.60(V)x1.87(T) mm. The LCD employs IPS Normally Black technology, achieving a viewing angle of 80/80/80/80 (Typ.) (CR≥10) and a contrast ratio of 500:1. The surface brightness of this 2.3 inch IPS TFT module can reach up to 700cd/m². The module utilizes the ST7789T3 driver IC and supports an MCU 8BIT interface, connected with 20PIN FPC.

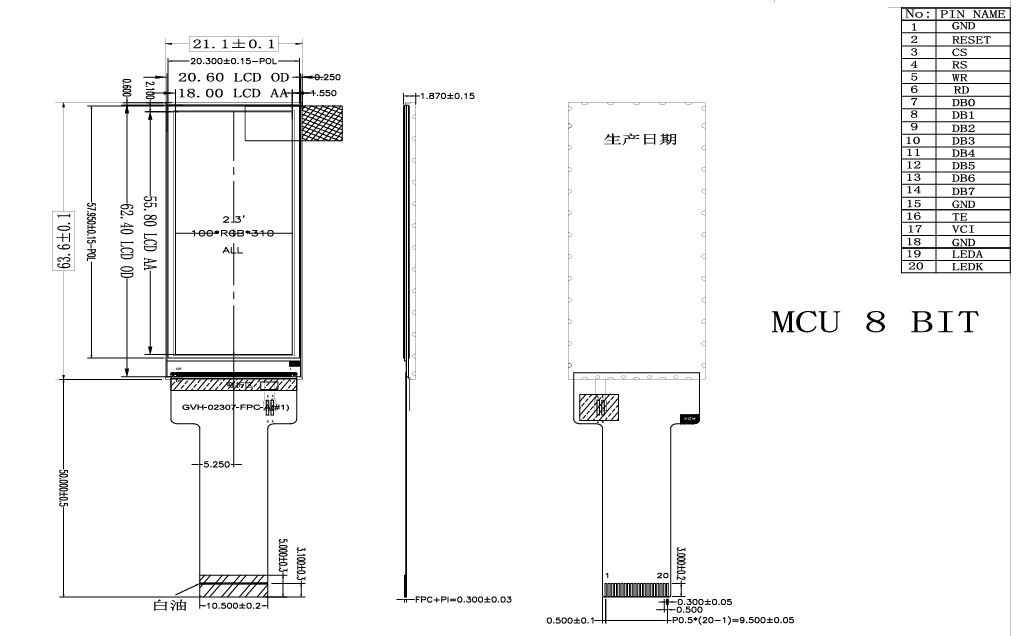

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-02307-B-N-A |
| 2 | LCD Size | 2.3 Inch IPS Bar LCD Display/2.30 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 100(RGB)×310 |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 18.00x55.80 mm |
| 6 | Module Dimension | 21.10 x 63.60 x 1.87mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 500:1 (Typ.) |
| 10 | Luminance | 700 cd/㎡ |
| 11 | Backlight | 4 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Features:
Why Choose US?
Guangdong Shengfeng Technology Co., Ltd. Ltd. , is a professional manufacturer specializing in design and production of touch displays ans supporting products, including monochrome LCD, color TFT LCD, CTP touch and glass Cover Lens, etc. We can offer:
Customization Services:
We offer customization services, allowing adjustments to the LCD screen's brightness, interface, and integration with touchscreen solutions according to client requirements, meeting the needs of various application scenarios.
Quality Assurance:
All products undergo rigorous quality testing to ensure that each LCD screen achieves optimal performance and stability.
Professional Support:
We possess a professional technical team that provides comprehensive technical support and after-sales service to clients, ensuring they have no worries during the usage process.
Applications:
This 2.3 inch bar TFT LCD Display, with its unique 100*310 resolution, IPS full-view display technology, high-quality TFT material, and MCU interface, brings unprecedented visual experience and operational convenience to smart Translator Pens Screen and Dictionary Pens Displays.
