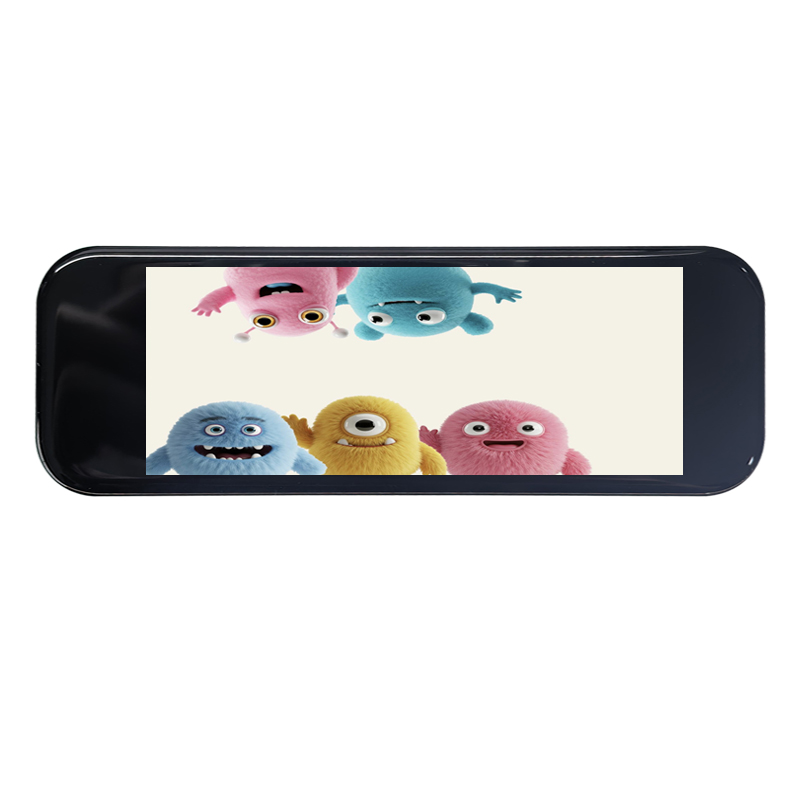

Bar-type 2.9 inch Touch Display Module 376*960 IPS TFT MIPI interface Customized CTP Touch

Features:

High-Definition Vertical Display:

• 2.9 inch TFT LCD display with 376×960 resolution, delivering exceptional pixel density for sharp text and image details.
• IPS wide-viewing-angle technology ensures consistent color accuracy and no distortion from any angle.
• Ultra-compact module dimensions (28.81×76.00×2.08mm) with slim bezels for space-efficient integration in narrow designs.

Custom Capactive Touch Panel:

• Rounded-corner cover glass design, enhances ergonomics and seamlessly fits handheld devices while improving grip comfort.
• 1.1mm thick glass cover with surface hardness >7H, resistant to scratches and abrasion for extended product lifespan.
• AF (Anti-Fingerprint) coating reduces fingerprint residue by 90%, ensuring smooth touch and long-lasting screen cleanliness.

Optical Bonding Technology:

• Full bonding eliminates air gaps between the display and touch panel, minimizing light refraction and reflection while boosting light transmittance by 30%+.
• Unibody design enhances shock and vibration resistance, making it suitable for demanding industrial environments

Applications:

This 2.9 inch 376×960 touch display module, with its unique bar-type design, high resolution, efficient space utilization, and CTP functionality, is perfect for:

🔹Handheld Terminals: Logistics PDAs, industrial barcode scanners, portable inspection devices.

🔹 Wearable Devices: Smart bands, health monitoring equipment, electronic tags.

🔹Portable Medical: Portable ultrasound machines, glucometers, emergency terminals.

🔹 Smart Home: Smart appliance control panels, audio display interfaces.

Why Choose Us?

🔹 Custom Cover Glass: Tailor cover glass shapes, logo etching, touch sensitivity, and fast prototyping.

🔹 One-Stop Display Solution: From display and touch panels to bonding and assembly, we deliver complete modules to shorten your R&D cycle.

🔹 High Quality Control: ISO9001-certified with full compliance to RoHS and REACH environmental standards.

For detailed specifications, sample testing, or customization options for this 2.9 inch touch display module, please feel free to contact our expert team. We’re here to provide you with the optimal display-touch solution!
