Part No.: FT-01701
TFT Type: 1.70 inch TFT LCD Display
Resolution: 240*280 dots
Viewing Direction: ALL
Interface: RGB
Driver IC: ST7789T3
Luminance: 500 cd/m²
Metal Frame: with Frame
Touch Screen: No touch
Item No :
FT-01701The Model# FT-01701, this is an small-size 1.70 inch TFT LCD module with the resolution of240(RGB)×280, an aspect ratio of 6:7 (W:H) in portrait mode. Its LCD Active Area (AA) size is 27.97x32.63mm (W×H), and module outline dimension is 30.07x37.43mm. Equipped with an ultra-thin backlight, the whole TFT module is only 1.6mm thickness. Featuring IPS Pro Normally Black display technology, this 1.70 inch TFT LCD Display achieves wide viewing angles of 80/80/80/80 (Typ.) (CR≥10) and a contrast ratio of 1000:1. The driver IC is the ST7789T3, which supports a 6-bit RGB interface and outputs via a 30PIN FPC at the bottom.
The operating temperature range of this 1.70 inch IPS TFT LCD Display is -20 to 70°C, and the storage temperature range is -30 to 80°C. It is well-suited for wearable devices.

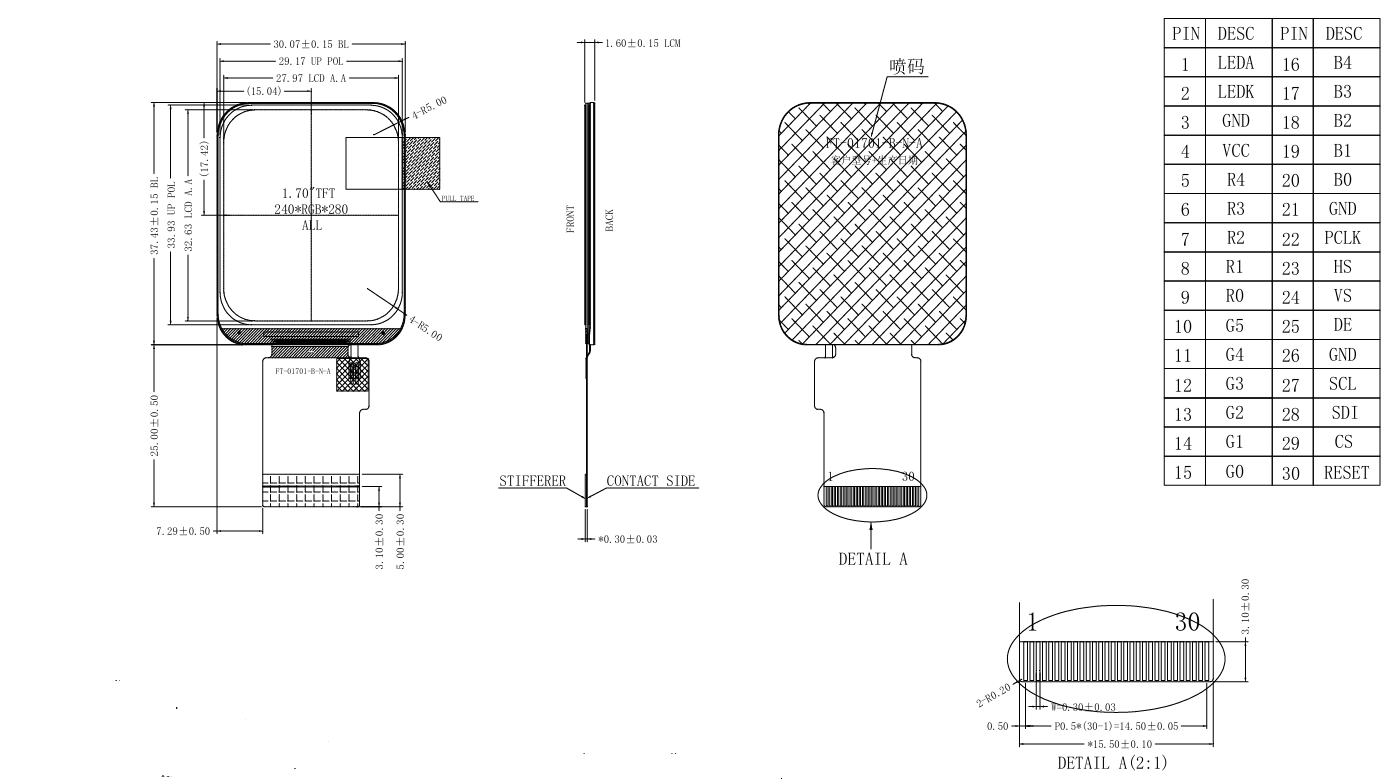

Product Drawing：
Product Specification:
| No. | Item | TFT LCD SPECIFICATION |
| 1 | Part No. | FT-01701 |
| 2 | LCD Size | 1.70 inch TFT LCD Display/1.70 inch IPS TFT LCD |
| 3 | Resolution (Pixels) | 240（RGB) × 280, |
| 4 | Display Mode | IPS Pro, Normally Black, Transmissive |
| 5 | Active Area | 27.97 x 32.63mm |
| 6 | Module Dimension(w/ Lens) | 30.07 x 37.43 x 1.60mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80(Typ.)(CR≥10） |
| 9 | Contrast | 1000:1 (Typ.) |
| 10 | Luminance | 500 cd/㎡ |
| 11 | Backlight | 3 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | No touch screen |
Product Feature:
High Resolution: This small-sized 1.70 inch TFT LCD has a high resolution of 240*280, delivering a clear and high-definition display.
Narrow Bezel Design: The narrow bezel design effectively minimizes the space occupied by the bezel and maximizes the display area within limited space.
IPS Technology: It provides this 1.70 inch TFT display module with wide viewing angles of 80/80/80/80 (Typ.) (CR≥10) and a contrast ratio of 1000:1,resulting in excellent display performance.
High Brightness: With a module surface brightness of 500 cd/m², it ensures clear visual experience even under outdoor sunlight.
Ultra-thin Module: The module thickness is only 1.60 mm, making it ideal for applications with limited space due to its ultra-thin design..
Applications:
The model #FT-01701, this 1.70 inch IPS TFT LCD module featured of compact size, high-definition, wide vieiwing angle and high contrast, it is particularly well-suited for wearable devices, offering users a more convenient and comfortable visual experience. Additionally, it is also applicable to other electronic devices with high requirements for display performance and space efficiency, such as portable medical devices and industrial control panels.
✔️ Smart Wearable Devices: Smartwatches, fitness bands, health monitoring devices
✔️ Portable Medical Devices: Blood glucose meters, heart rate monitors
✔️ Industrial Handheld Terminals: Barcode scanners, portable meters
✔️ Smart Home Control Panels: Ultra-thin design that seamlessly integrates into home aesthetics
Choosing this 1.70 inch IPS TFT LCD module means selecting a high-quality, high-performance display solution.
