4.82 inch IPS TFT LCD 540*1260 MIPI interface AXS15260 Incell Touch

4.82 inch IPS TFT LCD 540*1260

4.82 inch IPS TFT LCD 540*1260 MIPI interface AXS15260 Incell Touch

  • Size :

    4.82"
  • Part No. :

    FT-04801-B-N-A
  • Resolution :

    540*1260
  • Viewing Angle :

    Free
  • Interface :

    MIPI
  • Touch Screen :

    /
  • Driver IC :

    AXS15260
  • Temperature :

    -20℃-70℃
  • Brightness :

    600 cd/㎡
  • Module Outline(mm) :

    51.26*118.6*2.2
  • A.A Size(mm) :

    48.86*112.56

This is a 4.82 inch TFT LCD display specifically designed for vertical scenario applications. It features portrait mode design with a high 540×1260 resolution. The AA size is 48.86 × 112.56mm (W×H), and the module outline dimension is 51.26 × 118.6 × 2.2mm. With TWVA all-view technology, ultra-narrow bezels, and a super-slim 2.2mm module thickness, this 4.82 inch TFT Display module achieves a groundbreaking improvement in visual experience within limited space. The module is equipped with an AXS15260 driver IC, offers a 20-pin MIPI interface, and has a reserved INCELL CTP TOUCH interface.

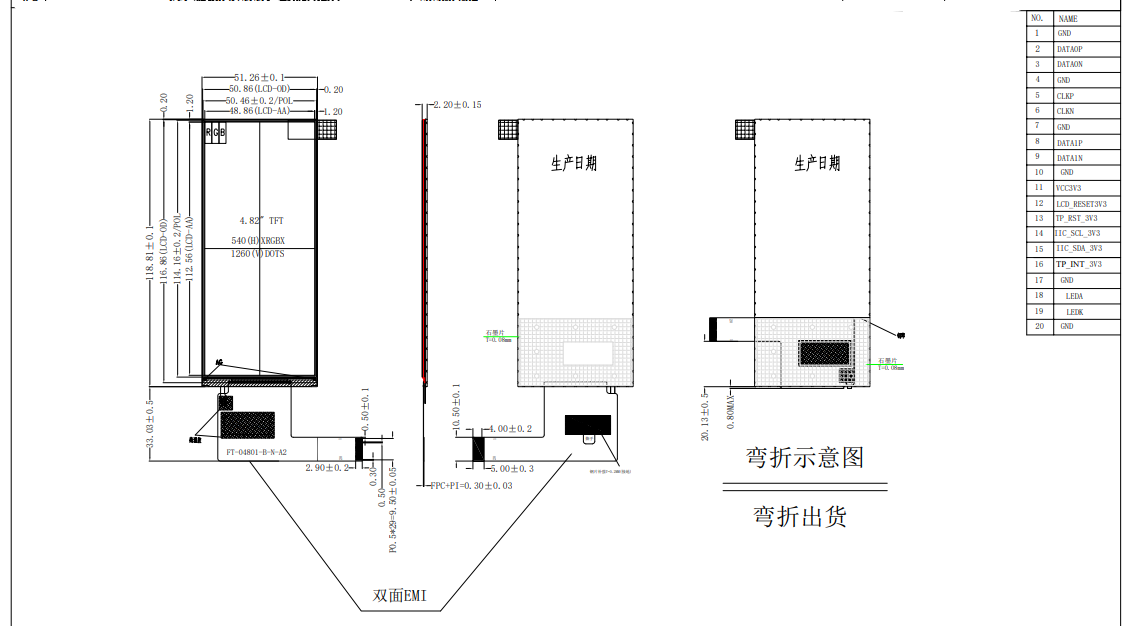

Product Drawing:

4.82 inch IPS TFT LCD 540*1260



Product Specification:

No. Item SPECIFICATION
1 Part No. FT-04801-B-N-A
2 LCD Size 4.82 inch TFT LCD Display
3 Resolution (Pixels) 540(RGB)×1260
4 Display Mode IPS, Normally Black, Transmissive
5 Active Area 48.86 × 112.56 mm
6 Module Dimension 51.26 × 118.6 × 2.2 mm
7 Viewing Direction ALL
8 Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
9 Contrast 1200:1 (Typ.)
10 Luminance 600 cd/㎡
11 Backlight  9 CHIP LED White,
12 Surface Treatment Anti-Glare
13 Temperature Range Storage Temp.: -30 ~ 80 °C   Operating Temp.: -20 ~ 70 °C
14 Touch Screen Without touch screen



Features:

High-Resolution Portrait Design:

  • The 4.82 inch TFT LCD with a 540×1260 resolution delivers exquisite image quality and clear text display, meeting the visual requirements of professional scenarios such as medical information display.
  • Its portrait form factor perfectly matches the vertical interaction logic of handheld devices, industrial panels, and medical terminals.

Ultra-Narrow Bezels + Ultra-Slim Thickness

  • The ultra-narrow bezel design maximizes the screen-to-body ratio, releasing a larger display AA size within a compact chassis.
  • With the 2.2mm module thickness, it significantly saves internal space in terminal devices, facilitating slim design and easy integration.

High-Performance Interfaces and Driver

  • Equipped with an AXS15260 driver IC, it ensures stable signal transmission and smooth screen response, supporting high refresh rates and low power consumption.
  • Standard 20-pin MIPI interface offers fast transmission rates and strong anti-interference capabilities. Additionally, the reserved INCELL CTP TOUCH interface allows for direct integration of touch functionality, simplifying the product development process.



Applications:

This 4.82 inch TFT LCD display , with its  540×1260 high resolution, wide viewing angles, ultra-narrow bezels, and ultra-slim thickness, is the ideal display solution choice for applications that pursue ultimate visual experience and efficient space utilization.

  • Handheld Terminals: Smart inspection devices, portable data collectors, and outdoor operation equipment.
  • Medical Devices: Portable medical monitors, small diagnostic terminals, and health management devices.
  • Smart Displays: Smart home central control screens, in-vehicle portrait displays, and wearable accessory screens.
