Part No.: FT-01015
TFT Type: 0.85 inch IPS TFT LCD
Resolution: 128*128 dots
Viewing Direction: All
Interface: 4-SPI
Driver IC: GC9107
Brightness: 450 cd/m²
Touch Screen: without touch
Item No :
FT-01015The model# FT-01015, is a 0.85 inch TFT LCD module designed for compact applications, featuring a 128×128 resolution square display with IPS TFT technology for clear visibility from all angles. It has an active area of 15.21x15.21mm and an outline module dimension of 17.6x20.60mm. This 0.85 inch TFT LCD module integrates the GC9107 driver IC, supports 4-wire SPI interface communication via a 10-pin FPC connector, and balances high performance with low power consumption, making it an ideal choice for upgrading displays in compact devices.

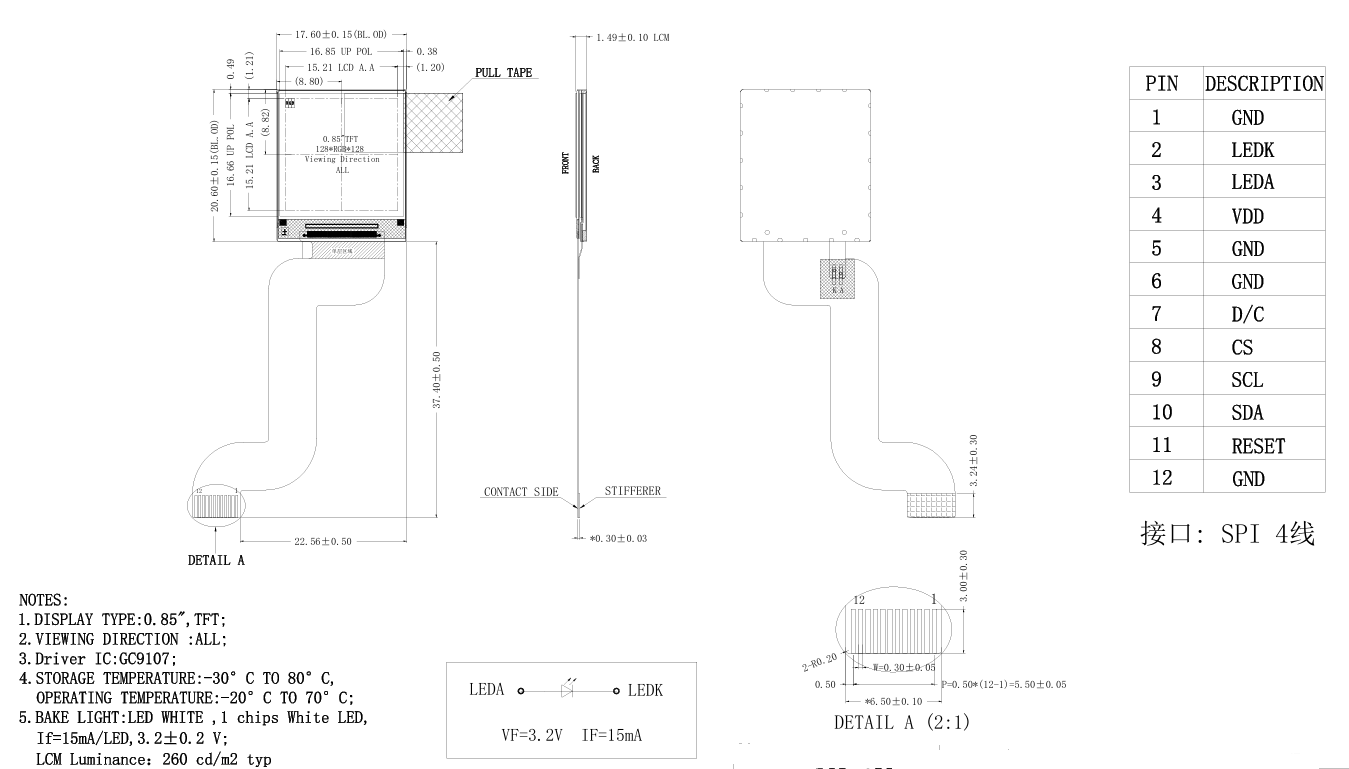

Product Drawing：
Product Specification:
| No. | Item | TFT LCD SPECIFICATION |
| 1 | Part No. | FT-01015 |
| 2 | LCD Size | 0.85 inch TFT LCD Display/0.85 inch IPS TFT LCD |
| 3 | Resolution (Pixels) | 128（RGB) × 128, |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 15.21 x 15.21mm |
| 6 | Module Dimension(w/ Lens) | 17.60 x 20.60 x 1.49mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 85/85/85/85(Typ.)(CR≥10） |
| 9 | Contrast | 350:1 (Typ.) |
| 10 | Luminance | 450 cd/㎡ |
| 11 | Backlight | 1 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | No touch screen |
Product Feature:
• High Resolution: The small sized 0.85 inch TFT LCD with 128×128 resolution and 65K colors, capable of displaying vibrant color images clearly.
• Square Structure: The active area of 15.21×15.21mm with a 1:1 aspect ratio, optimized for symmetrical interface layouts.
• Compact Size: Module dimensions of 17.6×20.60mm for easy embedded integration.
• Ultra-Thin Design: Module thickness of just 1.49mm, enabling ultra-slim device designs.
• Full Viewing Angle: IPS technology ensures 178° wide viewing coverage, maintaining clear visibility without color shift from any angle.
• SPI Interface: Utilizes a 4-wire SPI control interface via a 10-pin FPC connector, minimizing pin usage and simplifying circuit design..
Applications:
The model# FT-01015, a compact 0.85 inch 128×128 TFT LCD module, employs industrial-grade IPS panels to ensure high readability in strong light environments. The GC9107 driver solution optimizes power management to extend device battery life, while its square screen design adapts to symmetrical layouts such as dashboards and icon matrices, enhancing user experience. Suitable for:
• Portable medical device displays
• Smart wearable device interfaces
• Industrial control equipment status indicators
• Microcamera preview screens
• IoT device information displays
