Ultra-thin 4.96 inch TFT LCD 480*854 MIPI interface Narrow Bezel IPS TFT

The Model# FT-05029-B-N-A，is a 4.96 inch TFT LCD display with a resolution of 480(RGB)×854 (FWVGA), featuring a 9:16 (W:H) aspect ratio in portrait mode. Its narrow-bezel design incorporates an LCD Active Area (AA) of 61.78 x 109.91 mm (W×H), and module dimension of 64.24 x117.6 (W×H), combined with an ultra-slim backlight design resulting in a module thickness of just 2.14mm. IPS technology enables this LCD module to deliver a wide viewing angle. This 4.96 inch IPS LCD module utilizes the driver IC ST7102 supports MIPI interfaces with a 22-pin FPC connector that can be folded to the back of the module.

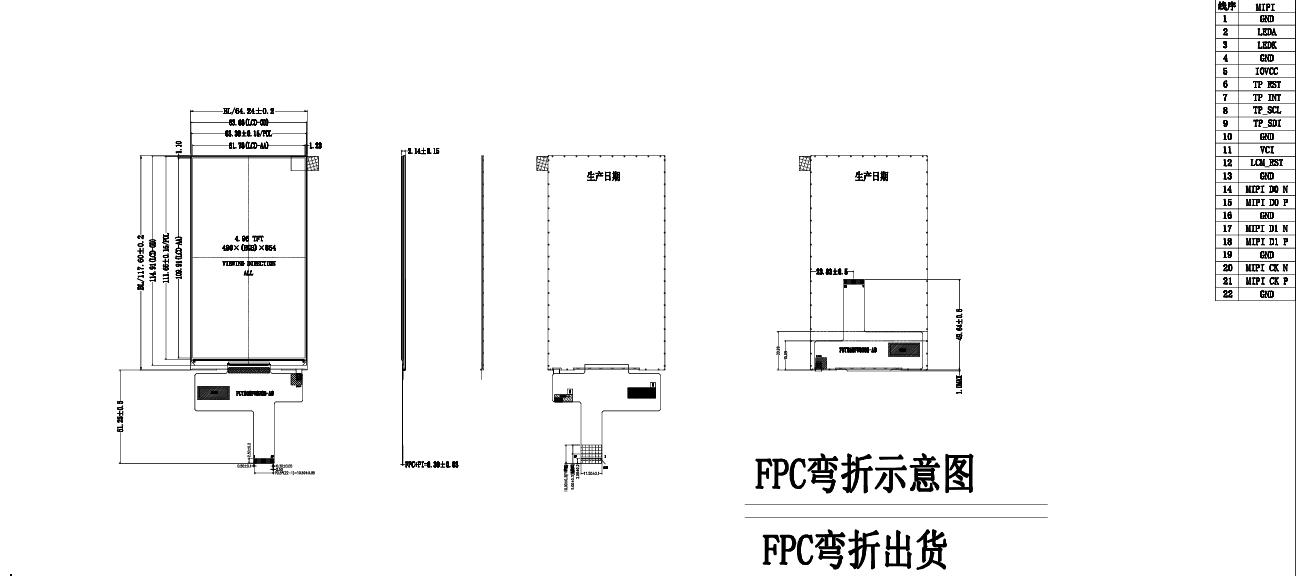

Product Drawing：

Product Specification:

Product Feature:

1. Ultra-Thin + Narrow Bezel: Unleashing Space-Saving

• The Integrated plastic-bezel backlight design reduces backlight thickness to make the whole 4.96 inch TFT module thickness of 2.14mm only, ideal for thickness-sensitive applications.
• Narrow Bezel design to maximum active area size and visual no bezel appearance to enhance the device’s aesthetic design.

2. IPS Technology: Wide Viewing Angle

• 170° wide viewing angles, ensuring exceptional color/brightness consistency during multi-user sharing and eliminating color-shift issues typical of TN panels.

3. MIPI High-Speed Interface + Customizable FPC: Flexible Hardware Integration

• MIPI Interface supports data transfer fast and stably.
• 22PIN Bendable FPC can be folded to the module’s rear, saving PCB space and accommodating irregularly shaped devices or compact board layouts.

4. Flexible Touch Function: Elevating Interactive Experiences

• Supports capacitive touch screen or resistive touch integration, meeting interactive needs.

5. Wide Operating Temperature:  Industrial-Grade TFT Display

•  Operating temperature range: -20°C to 70°C; storage temperature range: -30°C to 80°C. Ideal for extreme environments like industrial applications
•

Customization Services:

If customers need to customize their products, such as backlight brightness, interface definition, FPC length, and touchscreen solution, our experienced project team can assist you in evaluating the project, recommending the most suitable product, or proposing the most reasonable customization suggestions. We provide full-process support from selection to mass production..

Applications:

The model#FT-05029, this ultra-thin 4.96 inch LCD display integrates 'Ultra-Thin + Narrow Bezel + Wide Viewing Angle', paired with MIPI interface compatibility, touch-integration support, and wide-temperature operation capabilities, is particularly tailored for applications demanding stringent space efficiency and display consistency, such as:

Smart Terminals: Handheld POS machines

Industrial Control: HMI interfaces

Automotive Displays: Rearview mirror navigation
