2.0 inch 240*320 IPS TFT SPI interface Customized Cover Glass 350cd/m2

This is 2.0 inch TFT LCD Display equipped with a custom round cover glass. The display is 2.0 inch 240(RGB)×320 resolution in portrait mode, with AA size of 30.60×40.80 (WxH) mm and outline dimension of 34.60×47.80×2.15 mm. This 2.0 inch TFT LCD module adopts IPS technology, offering a wide viewing angle of 170°. The module brightness is 350 cd/m². The driving IC selected is ST7789T3, which supports an SPI interface.

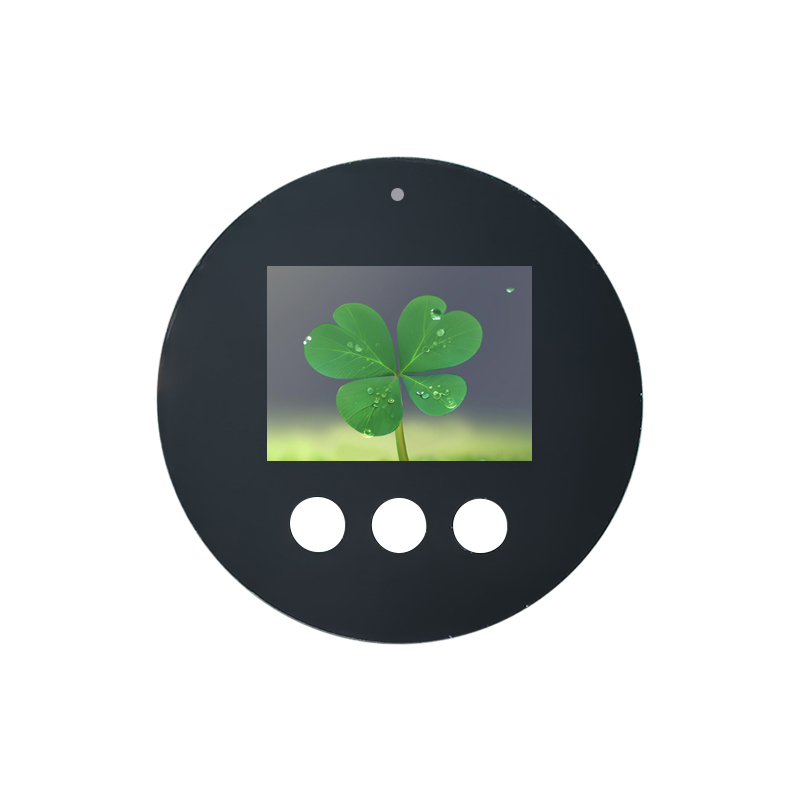

Designed specifically for customization needs, this 2.0 inch TFT Display features an exclusive round cover glass with three through-holes, a thickness of 0.7 mm, and a hardness of 6H. It balances display performance with structural adaptability, making it widely applicable in various scenarios such as smart wearables, industrial controls, medical devices, and automotive displays.

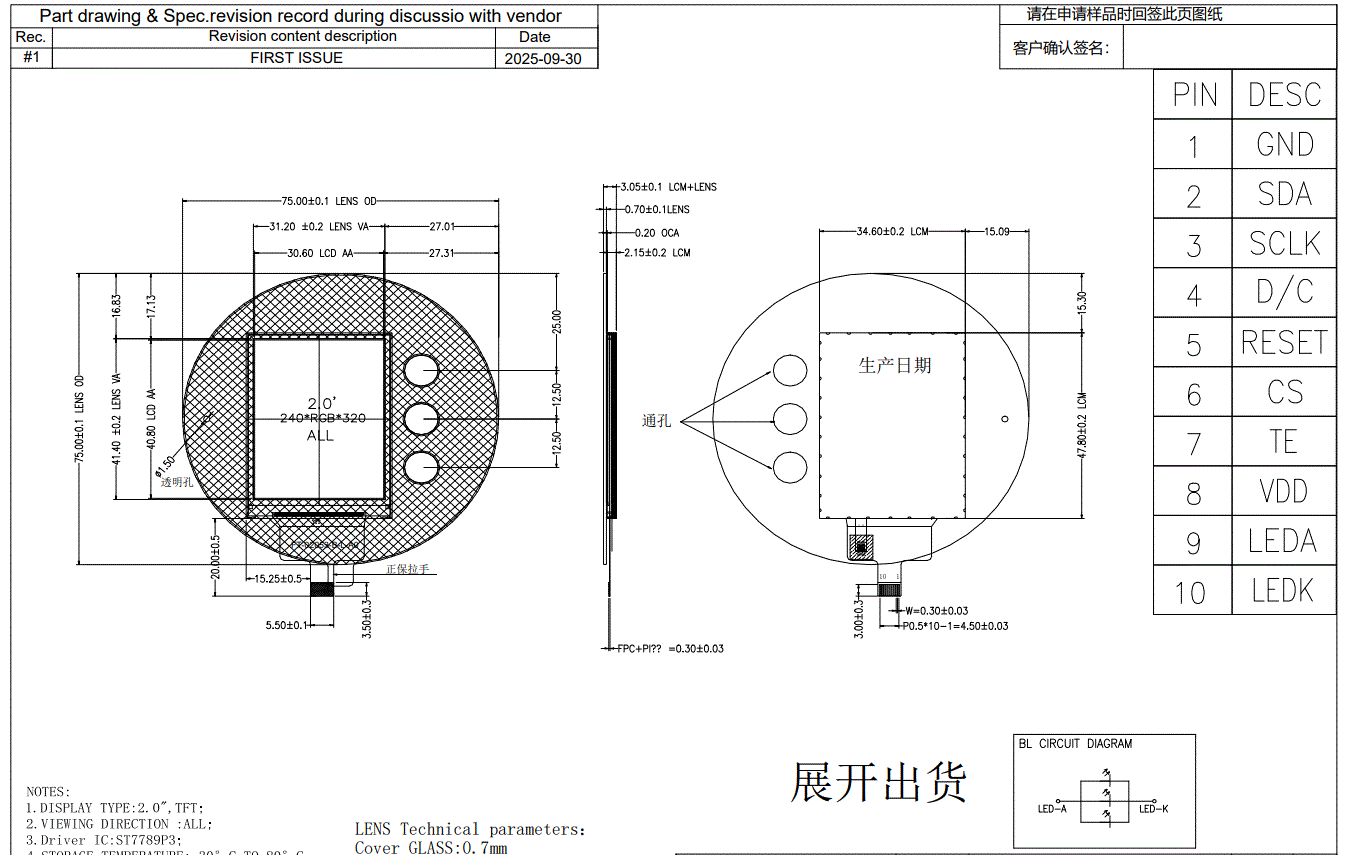

Product Drawing：

Product Specification:

Product Feature:

• High-Definition Display:  With 2.0 inch portrait mode and a high resolution of 240(RGB)×320, along with a brightness of 350 cd/m², this display offers rich colors, high contrast, clear text, and delicate images, suitable for various display scenarios.
• IPS Wide Viewing Angle:  The 2.0 inch TFT LCD display utilizes IPS hard-screen technology, presenting a wide viewing angle of 170°. It ensures no color shift or image distortion when viewed from any angle, meeting the needs of multiple people viewing simultaneously or devices installed at various angles.
• High-Performance Driving:  Its driver IC ST7789T3, operates stably with low power consumption. Supporting SPI interface, it features a simple interface and convenient wiring, significantly reducing installation and debugging costs while enhancing production efficiency.
• Slim and Lightweight Design: The outline size of the 2.0 inch display module is 34.60×47.80×2.15 mm, making it slim and lightweight, saving internal space within devices.
• Custom Round Cover Glass: The exclusive custom round cover glass, paired with a three-through-hole design, precisely matches the structural requirements of devices such as smart wearables and industrial controls. Its ultra-thin 0.7 mm thickness does not increase device volume, while the 6H-hardness cover glass is scratch-resistant, wear-resistant, and impact-resistant, effectively protecting the display from damage.
• Optical Bonding:  OCA optical bonding is applied between the 2.0 inch display module and the cover glass, reducing reflections and enhancing display clarity and visual experience.

Applications:

This 2.0 inch 240*320 TFT LCD Display with a unique custom round cover glass not only gives the product a distinctive appearance but also achieves comprehensive upgrades in functionality and durability.

It is widely applicable in various scenarios, primarily including smart wearable devices (watches, bracelets), industrial control instruments, medical testing equipment, automotive auxiliary displays, portable terminals, smart home control panels, and small testing instruments. Additionally, the cover glass design. display interfaces can be customized according to customer requirements to meet personalized customization needs.
