2.8 inch IPS TFT LCD 240*320 MCU interface High Brightness 680cd/m2

The model#FT-02889, this 2.8 inch TFT LCD Display utilizes advanced ADS hard-screen technology to deliver exquisite image quality with a high resolution of 240×320 (QVGA) and a 3:4 portrait mode.  Its LCD Active Area (AA) size is 43.2×57.6 mm(W×H), and module outline dimension is 50.00×69.20×2.80 mm (L×W×H).  This 2.8 inch TFT LCD module integrates the driver IC ST7789V1 and supports an MCU 16-bit interface. With a high brightness of 680 cd/m² and a high contrast ratio of 800:1, it is suitable for a variety of scenarios, including industrial control, smart home devices, and portable equipment.

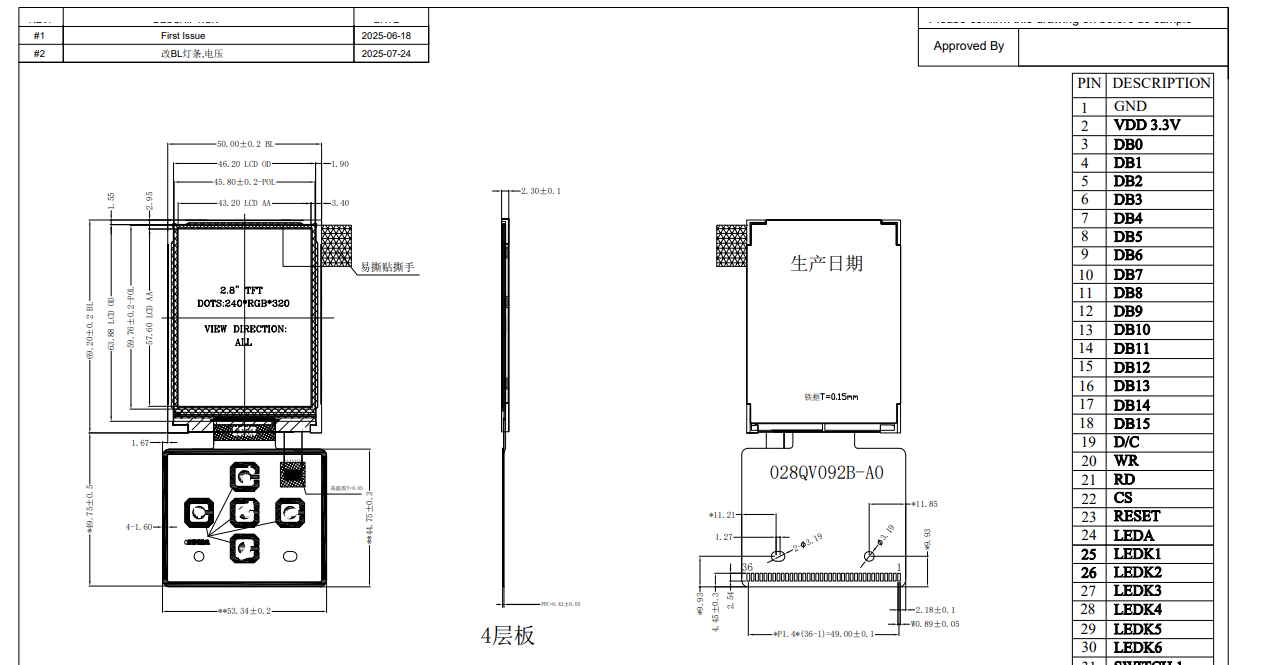

Product Drawing:

Product Specification:

Features：

•  Vertical Screen Structure:  With a resolution of 240*320  resolution and a 3:4 vertical screen ratio, it is specifically designed for vertical display scenarios, such as instrument panels, handheld devices, and UI interaction interfaces. It eliminates the need for additional rotation adjustments, enhancing integration efficiency.
• Wide Viewing Angle:  Utilizing ADS hard-screen technology, it achieves a viewing angle of 80/80/80/80 (Typ.)(CR≥10). This ensures no color distortion when viewed by multiple people or from the side, meeting the needs of collaborative office work and outdoor displays.
• High Brightness and High Contrast:  With a brightness of 680 cd/m² and a contrast ratio of 800:1, it remains clearly visible even in bright environments, addressing the display challenges faced by outdoor equipment and industrial HMIs (Human-Machine Interfaces).
• Ultra-Thin Structure: The module is only 2.30 mm thick. Its lightweight design saves space for compact devices, facilitating the upgrade to thinner and lighter products.
• Efficient Interface: The ST7789V1 driver IC supports an MCU 16-bit interface, ensuring stable and fast data transmission and compatibility with mainstream main control solutions.

Customization Services:

• We can professionally customize FPC, to design the length, interface type, and fixation method of the FPC (Flexible Printed Circuit) based on customer requirements regarding the motherboard layout, installation position, and pin definitions of their products, helping customers quickly achieve differentiated product innovation

Applications：

This 2.8 inch TFT LCD display module, focusing on vertical screen applications, perfectly fits the structural layouts of small devices such as smart wearables, handheld detectors, and smart home control panels, thanks to its high-definition resolution of 240 (RGB)×320 QVGA, 3:4 golden aspect ratio, and ultra-thin body structure.

• Handheld Smart Devices: Smart wristbands, handheld POS machines, portable blood glucose meters
• Industrial Control: Industrial handheld terminals, small data collectors, outdoor inspection instruments
• Smart Homes: Smart lighting control panels, thermostats, access control panels

Are you searching for a display solution for small smart devices that offers "vertical screen adaptation, clear visibility in bright light, and convenient integration"?

Please contact us to obtain your exclusive display solution!
