Size :
4.3"Part No. :
FT-04353-B-N-AResolution :
480*272Viewing Angle :
FreeInterface :
SPITouch Screen :
/Driver IC :
NV3041Temperature :
-20℃-70℃Brightness :
700 cd/㎡Module Outline(mm) :
105.46*67.11*3.10A.A Size(mm) :
95.04*53.86The Model#FT-04353-B-N-A, is a 4.3 inch TFT LCD display specifically designed for industrial applications, featuring a mainstream resolution of 480(RGB)×272 (WQVGA) and a 16:9 (W:H) landscape orientation. Its active display area measures 95.04×53.86 (W×H) mm, and the module dimensions are 105.46×67.11×3.10 (W×H×T) mm. The backlight employs a 5S3P WLED configuration, achieving surface brightness of up to 700 cd/m². Built with NV3401 driver IC, this 4.3 inch IPS TFT LCD module innovatively supports a 4SPI serial interface with a 10-pin FPC connector, significantly simplifying wiring complexity.

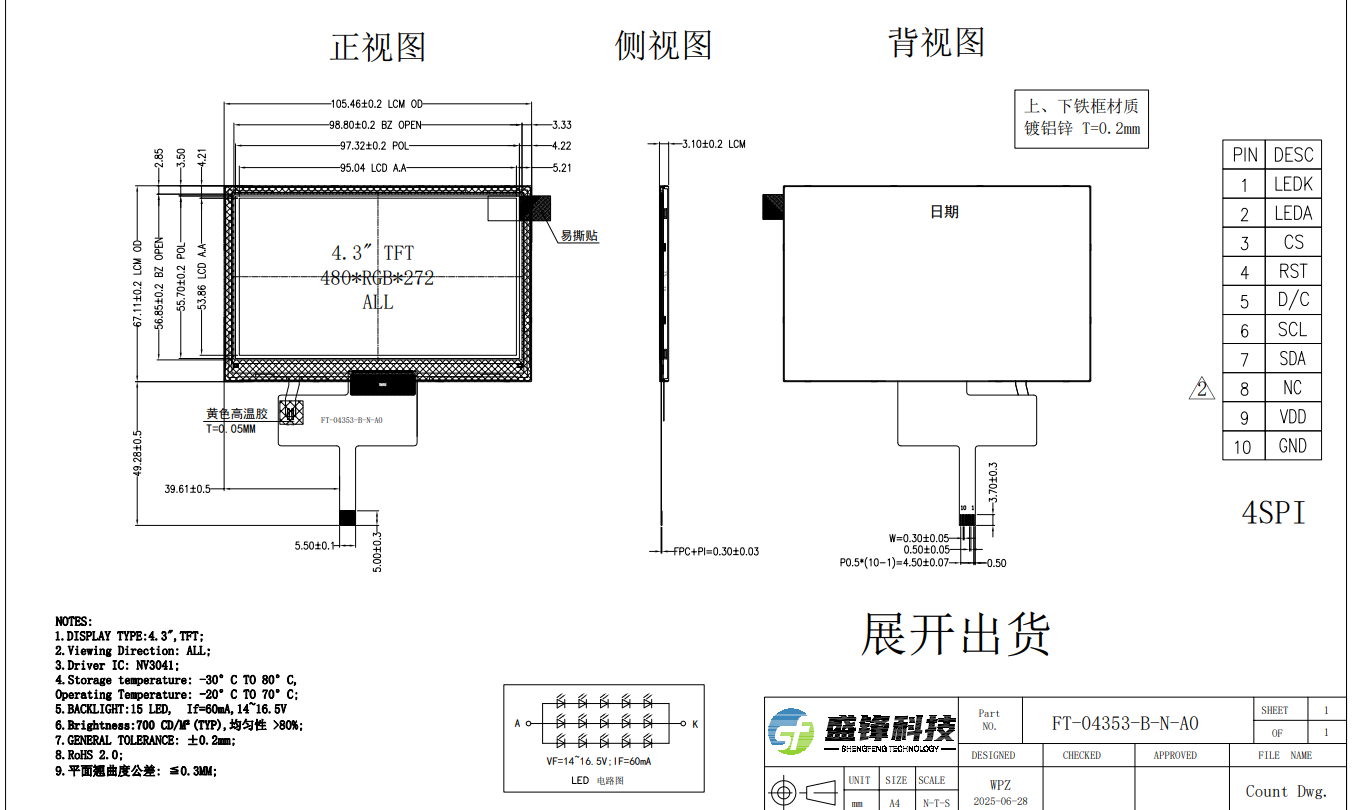

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-04353-B-N-A |
| 2 | LCD Size | 4.3 inch IPS TFT LCD |
| 3 | Resolution (Pixels) | 400(RGB)×272, QVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 95.04×53.86mm |
| 6 | Module Dimension | 105.46×67.11×3.10mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 9 | Contrast | 800:1 (Typ.) |
| 10 | Luminance | 700 cd/㎡ |
| 12 | Backlight | 15 CHIP LED White， |
| 13 | Surface Treatment | Anti-Glare |
| 14 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 15 | Touch Screen | Without touch |
Features:
Universal Resolution:
The 4.3 inch TFT LCD of 480×272 resolution is a standard specification in industrial displays, ensuring compatibility with most embedded systems and controllers.
Wide Viewing Angles:
Achieves 80/80/80/80° viewing angles, maintaining clarity from multiple perspectives—ideal for devices requiring multi-angle operation.
Unique Interface:
Equipped with the NV3401 driver IC, it supports serial 4-wire SPI interface + 10-pin FPC connection, streamlining PCB layout and reducing system complexity.
High-Brightness Backlight:
The 4.3 inch IPS TFT Module is with 700 cd/m² brightness, content remains clearly readable under direct sunlight or intense ambient lighting.
Industrial-Grade Reliability:
The module is designed with upper and lower aluminum-zinc-plated steel bezel, balancing structural strength and lightweight design while offering effective dustproof, moisture-resistant, and shock-resistant properties to extend product lifetime.
Applications:
This 4.3 inch industrial-grade TFT display features Extremely-wide Operating Temperature range from -30℃~85℃, full viewing angle, high brightness, and industrial-grade material and structural design. It ensures stable and reliable operation in harsh outdoor environments with extreme cold and heat, making it the top choice for military, industrial, and environmental monitoring equipment.
-- Industrial Automation: It is suitable for devices such as PLC control and HMI displays. With stable display and ultra-wide temperature adaptability, it can operate reliably in complex industrial environments.
-- Vehicle Equipment: It is an ideal choice for instrument displays of excavators and forklifts. Its high brightness and wide viewing angle enable drivers to clearly read information under different lighting conditions and angles, and the ultra-wide temperature range ensures normal operation in winter and summer.
-- Medical Equipment: It can be used in portable monitors. its high resolution and high contrast ensures clear display, helping medical staff accurately read patients' vital signs data.
-- Environmental Monitoring: As a sunlight readable 4.3 inch TFT LCD display for outdoor data acquisition terminals, its high brightness makes data visible in sunlight, and its ultra-wide temperature adaptability enables stable data acquisition and display in harsh climates.
Why Partner With Us:
✔ Years Focused on Industrial LCD Displays - ISO 9001/14001 certified factory with Class 1000 cleanroom production
✔ Engineer-to-Engineer Customization- Focus on Industrial Display Solutions - Specialized in wide temperature range/high brightness/long-lifespan scenarios.
✔Prompt Delivery - Sample L/T just 14 working days, MP L/T 30 working days.
✔Compliance Assurance - Providing a full set of CE/FCC/RoHS certified technical documentation.
If you are interested in our industrial-grade 4.3 inch TFT LCD display or the ultra-wide temperature 4.3-inch TFT LCD display, or if you have any questions and needs, please feel free to contact us. We will serve you wholeheartedly and look forward to win-win cooperation with you!
