5.5 inch HD TFT LCD 720*1280 WXGA Full View MIPI Interface

The Model#FT-05506-B-N-B, this is a 5.0 inch HD TFT LCD with a resolution of 720*1280 (WXGA), featuring an aspect ratio of 9:16,  portrait mode. It utilizes ADS technology, normally black, transmissive mode , to boast to be full-viewing angle of 80/80/80/80 degrees (Typ.), and high contrast of 1200:1. For the 5.5 inch portrait TFT LCD display, its Active Area size measures 68.04×120.96 mm (W× H), while LCD outline dimension is 70.04 × 127.10 mm (W× H), designed with narrow bezels. Incorporating the 0.20+0.20 mm ITO glass substrate combined with ultra-thin backlight, the 5.5 inch TFT LCD module has outer dimensions of 70.34×128.10 mm and a ultra-thin module thickness of only 1.80 mm. The driver IC for this 5.0 inch HD TFT LCD module is ILI9981C, with a 30PIN MIPI interface.

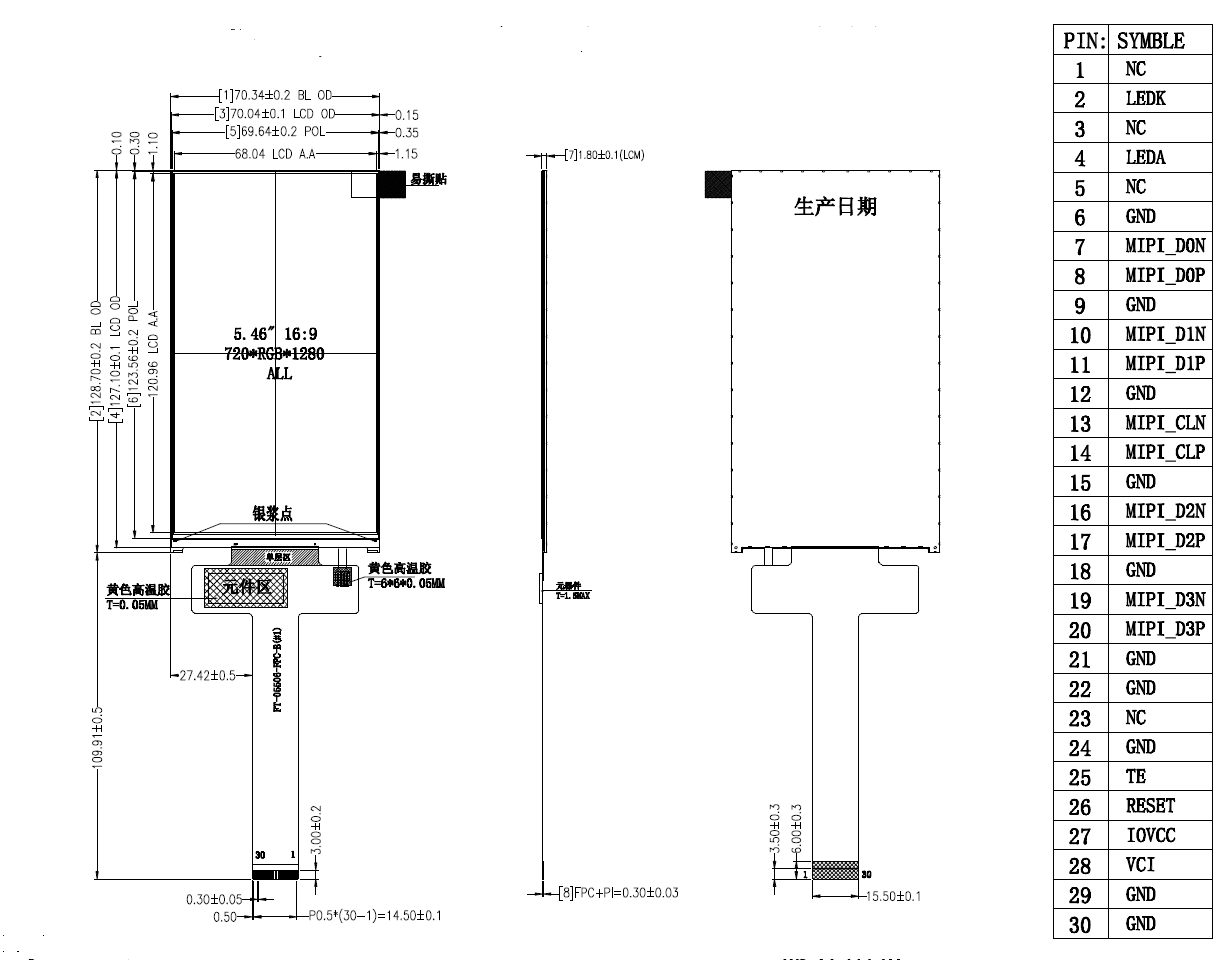

Product Drawing：

Product Specification:

Product Feature:

• Portrait Display:  Specifically designed for vertical screen operation scenarios such as handheld devices and industrial control instruments, eliminating the need for software to rotate the screen and reducing system latency.
• High Resolution:  With a resolution of 720×1280 WXGA and a pixel density of up to 268 PPI, the 5.5 inch HD TFT LCD  accurately presents high-precision content.
• ADS Technology:  Supports a full-viewing angle of 80°×80°×80°×80° and a high contrast of 1200:1, ensuring no color shift at any angle and excellent detail performance.
• Narrow Bezel Design:  With an ultra-narrow bezel of 1.0 mm, it maximizes screen-to-body ratio, making it suitable for embedded devices with limited space.
• Ultra-thin Design:  Adopting a 0.20 mm double ITO glass substrate and ultra-thin backlight solution, the 5.5 inch HD TFT LCD module has a a ultra-thin module thickness of only 1.80 mm, contributing to the sleek design of terminal devices.
• MIPI Interface:  Supports mainstream processor platforms (such as Qualcomm, MediaTek, Rockchip, etc.), with a data transmission rate of up to 1.5 Gbps/lane, ensuring stable data transmission and strong anti-interference capabilities.

Customization Services:

If customers need to customize their products, such as backlight brightness, interface definition, FPC length, and touchscreen solution, our experienced project team can assist you in evaluating the project, recommending the most suitable product, or proposing the most reasonable customization suggestions. We provide full-process support from selection to mass production..

Applications:

This 5.0 inch TFT LCD 720*1280 , with its high resolution, full-viewing angle, high contrast, narrow bezel design, ultra-thin module thickness, and MIPI interface, is suitable for various smart terminals, industrial control, and consumer electronics applications.

- Smart Terminals:  Portable medical devices, handheld scanners, smart home central controllers

- Industrial Control:  HMI interfaces, instrumentation, automation equipment

- Consumer Electronics: Mini projectors, digital photo frames, smart wearable extended screens.
