Touch display 5.46 inch TFT LCD 1080*1920 FHD MIPI Interface with I2C CTP Touch

The Model#FT-05523-B-C-A is a high-performance 5.46 inch Touch Display, with typical features including FHD, portrait mode, and a integrated touchscreen.

The 5.46 inch TFT LCD Display has a resolution of 1080(RGB)*1920, FHD, with an aspect ratio of 9:16, portrait mode. The LCD display AA size is 68.04×120.96 mm, the CTP Sensor VA size is 68.64 x 121.56mm, and the outline dimensions of this 5.46 inch touch display module are 76.88 × 134.20 x 3.55mm. Its LCD driver IC is HX8399A, supporting an efficient MIPI interface and connected with a 24PIN FPC. And the 5.46 inch CTP touch screen is of G+G structure, with a GT911 driver IC and an I2C interface.

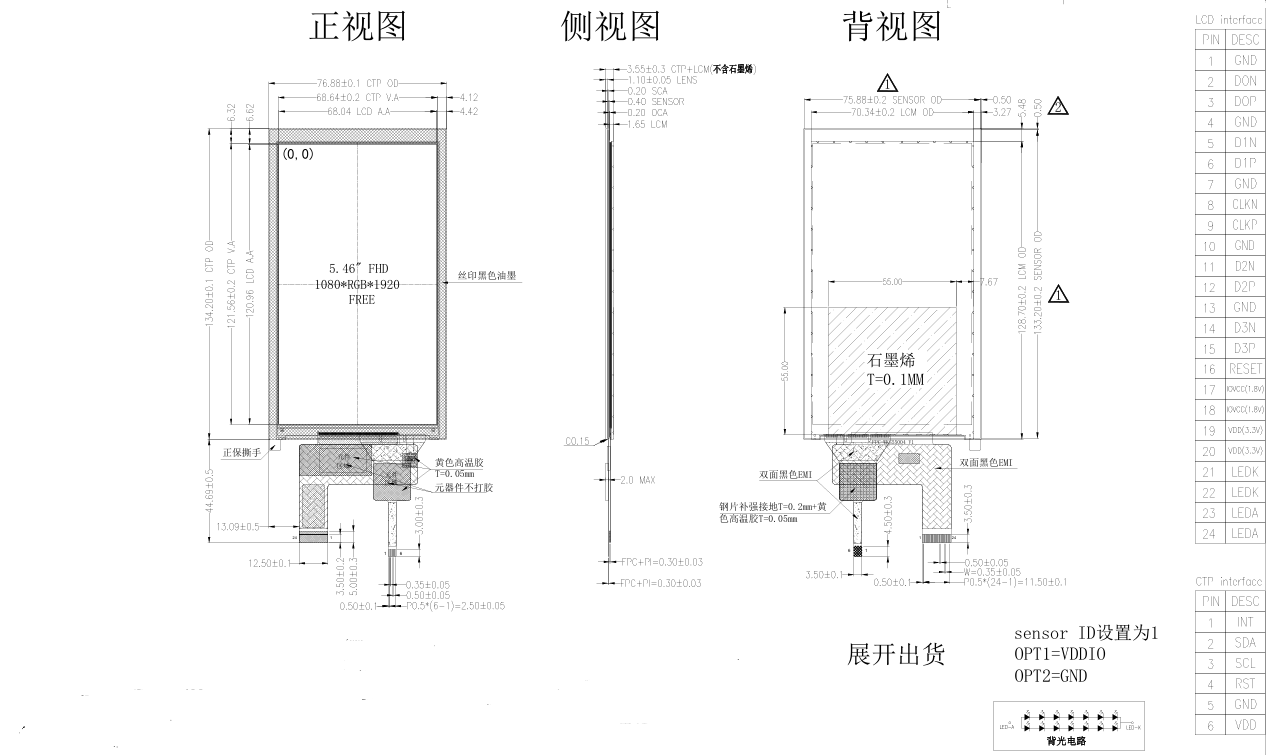

Product Drawing：

Product Specification:

Product Feature:

5.46-inch FHD TFT LCD Display - High-Definition Visual Feast:

• The 5.46 inch LCD screen size is suitable for one-handed operation while providing sufficient display space.
• With a resolution of 1080*1920, reaching FHD level, it offers a clear, delicate, and realistic visual experience.
• The unique vertical portrait mode is adaptable to various vertical usage scenarios, making operations more convenient and natural.
• IPS technology provides an ultra-wide viewing angle range and realistic color representation.
• This 5.46 inch IPS TFT LCD Display supports the MIPI interface, ensuring fast and stable data transmission.

5.46 inch Capacitive Touch Screen - Enhanced Touch Interaction:

• The G+G structure offers advantages such as high light transmittance and high sensitivity.
• The 1.1mm tempered cover glass is of hardness of ≥7H (750g), and its high wear resistance effectively protects the display screen from scratches and damage.
• The touchscreen driver IC GT911, with an I2C interface, can quickly and accurately recognize users' touch operations, delivering a smooth and precise touch experience.
• Optical bonding between TFT LCD and CTP touch enhances the 5.5 inch touch display effect while increasing the reliability of the assembly module.
• The CTP touchscreen supports multi-touch operations, providing users with a more intuitive and convenient interactive experience.


5.46 inch Touch-Display Module - Compact Design, Efficient Integration:

• With a CTP Sensor VA size of 68.64 x 121.56mm and overall appearance dimensions of just 76.88 × 134.20 x 3.55mm for the touch-display assembly module, its compact design allows for easy integration into various electronic devices with limited space, offering greater flexibility in device design.

Applications:

The model#FT-05523-B-C-A 5.46 inch FHD Touch Display module, with its high-definition display, sensitive touch experience, compact design, and stable performance, can be recommended for use in various electronic devices, such as:

• On financial POS terminals, it can provide users with an outstanding visual and touch experience.
• In smart wearable devices, it offers users clear display and convenient interactive experiences.
• In industrial control terminals, its stable performance and efficient interface can meet various needs in industrial environments.
