5.5 inch FHD IPS TFT LCD 1080*1920 Portrait Mode MIPI Interface SNB Desgin

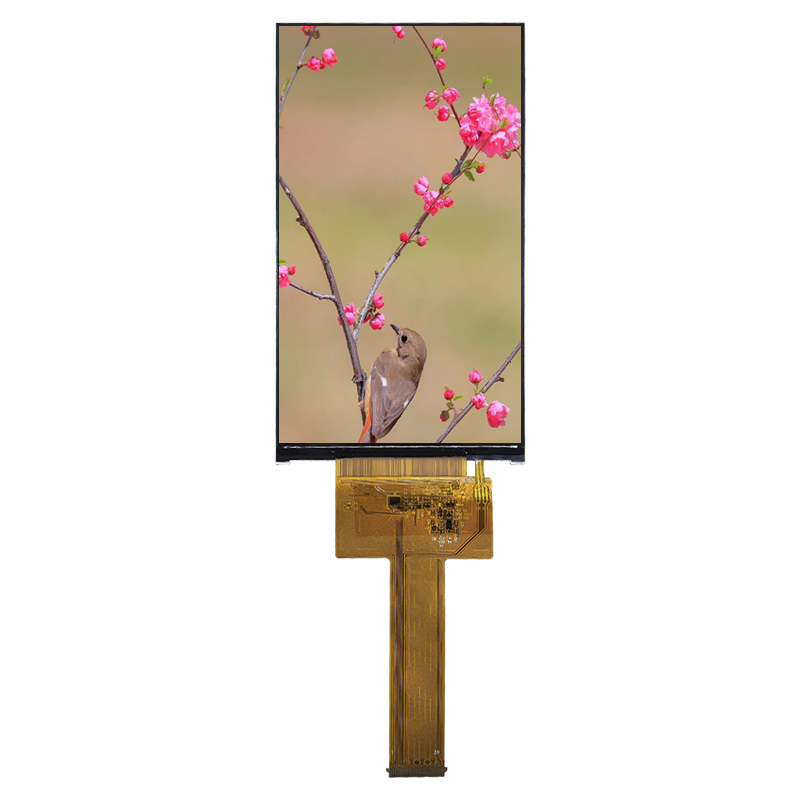

The model_FT-05525-B-N-A, the 5.5 inch IPS TFT LCD Display has a stunning resolution of 1080(RGB) * 1920, FHD, with a 9:16 aspect ratio in portrait mode. With  distinctive SNB (super narrow bezel) design, the LCD display AA size is 68.53 x 121.82 mm, while the module outline dimensions are remarkably compact 70.34 x128.70 x 2.27 mm.  The 5.5 inch FHD IPS TFT LCD module is built with driver IC HX83112A, supporting an efficient MIPI interface, and connected with a 30PIN FPC that has a reserved CTP touch interface, making it a perfect fit for applications that prioritize exceptional visual experiences and spatial efficiency.

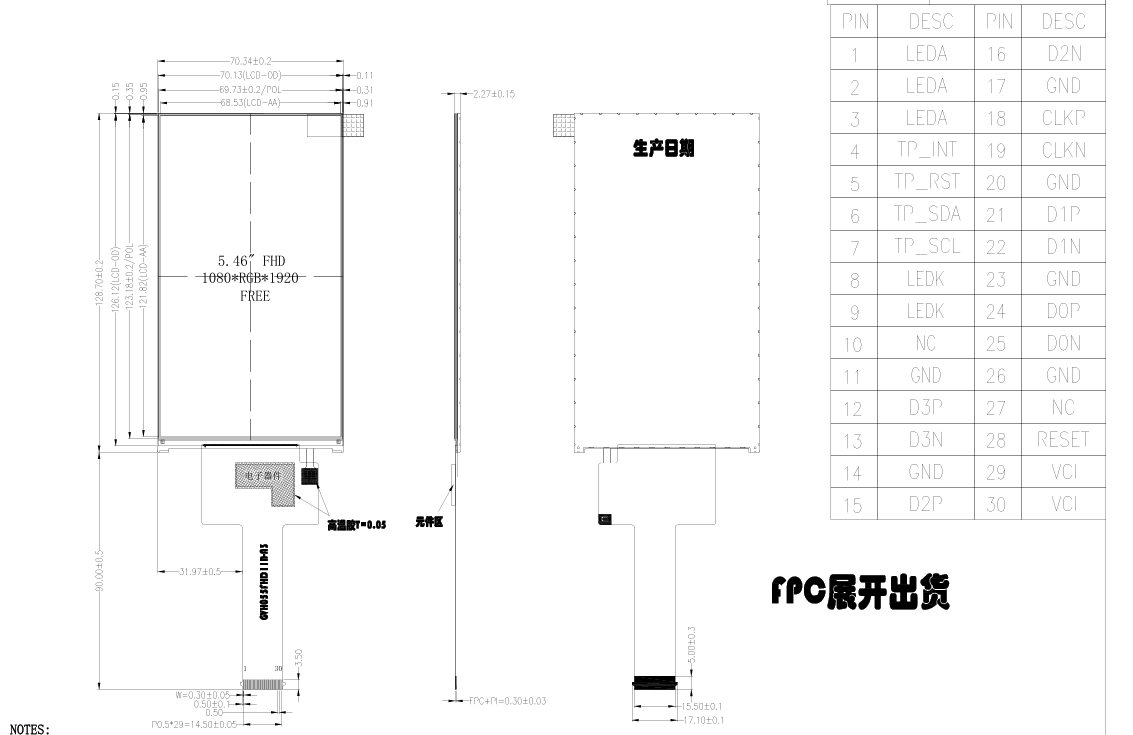

Product Drawing：

Product Specification:

Product Feature:

High-Definition Display:

• The 5.5-inch IPS TFT LCD panel offers a high resolution of 1920 × 1080 (FHD), delivering vibrant colors and a wide viewing angle.

Vertical Screen Optimization:

• The 9:16 vertical portrait mode is designed specifically for vertical display applications, ensuring natural and smooth operation.

SNB (super narrow bezel) design:

• The SNB design maximizes the visible area, providing an immersive viewing experience.
• Sleek and Compact: With ultra-compact module dimensions of 70.34 × 128.70 × 2.27 mm, it saves valuable device space.

High-Speed MIPI Interface:

• It supports the MIPI interface (driver IC: HX83112A), enabling efficient and reliable data transmission.

Easy Touch Function Availability:

The 30PIN FPC interface reserves a exterior CTP function, making it convenient for customers to add capactive touchscreen functionality according to project requirements.

Applications:

The model#FT-05525,  5.5 inch FHD TFT LCD module, with its 1080*1920 FHD resolution, portrait mode, SNB design, compact size, high-speed MIPI interface, and flexible touch expansion capabilities, is ideal for vertical screen applications such as POS machines, handheld devices, smart wearables, and e-readers.
