Industrial LCD 7.0 inch IPS TFT LCD 1024*600 LVDS interface High Brightness 1000cd/m2

Industrial Display 7.0 inch TFT LCD 1024*600

Industrial LCD 7.0 inch IPS TFT LCD 1024*600 LVDS interface High Brightness 1000cd/m2

Size :
7.0"
Part No. :
FT-07051-B-N-A
Resolution :
1024*600
Viewing Angle :
All
Interface :
LVDS
Touch Screen :
/
Driver IC :
JD9165
Temperature :
-30℃-85℃
Brightness :
1000 cd/㎡
Module Outline(mm) :
164.10*99.20*5.47
A.A Size(mm) :
154.21*85.92

Inquiry now

categories

How can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Products Details

The model#FT-0751, is a 7.0 inch TFT LCD Display features a resolution of 480(RGB)×1280, WSVGA aspect ratio of 16:9 (W:H) in landscape mode. Its LCD Active Area (AA) size is 154.21 × 85.92 mm(W×H), and module outline dimension is 164.10 × 99.20 × 5.47mm (L×W×H). Integrated with IPS technology, this 7.0 inch TFT LCD module delivers 85/85/85/85 ultra-wide viewing angles, 1000 cd/m² high brightness, a extremely-wide operating temperature range of -30°C to 85°C, and is built in with driver IC JD9165, supporting LVDS interface.

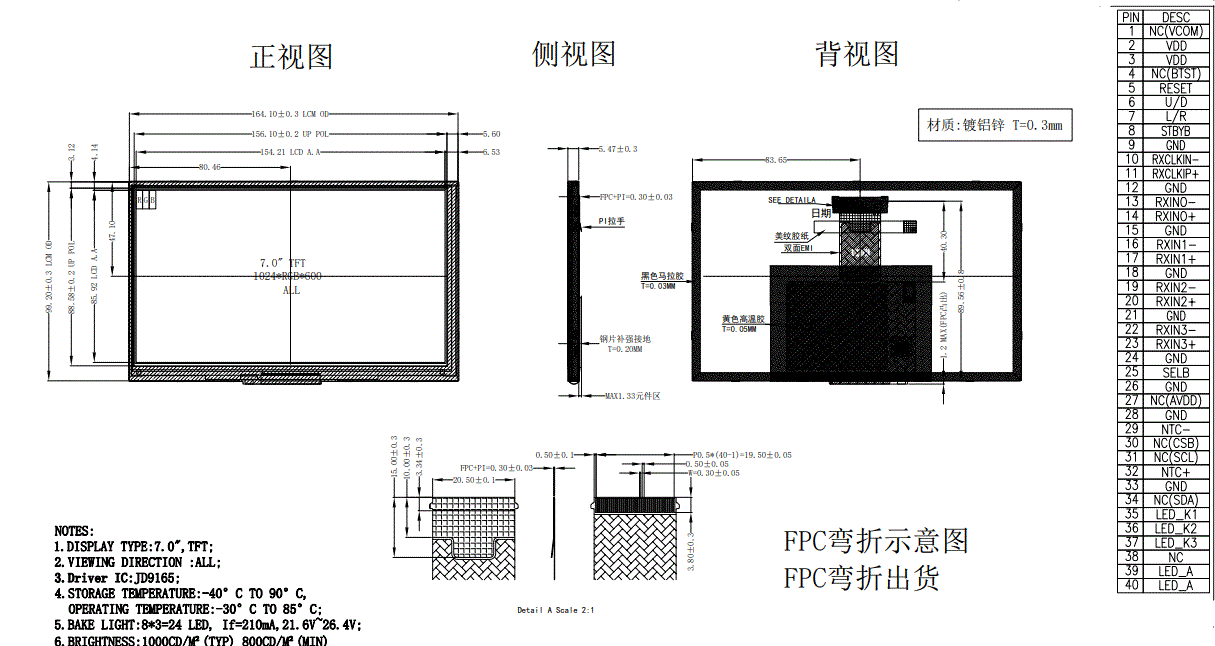

Product Drawing:

7 inch industrial TFT LCD Display

Product Specification:

No.	Item	SPECIFICATION
1	Part No.	FT-07051-B-N-A
2	LCD Size	7 inch TFT LCD Display
3	Resolution (Pixels)	1024(RGB)×600, WSVGA
4	Display Mode	IPS, Normally Black, Transmissive
5	Active Area	154.21 × 85.92mm
6	Module Dimension	164.10 × 99.20 × 5.47mm
7	Viewing Direction	All
8	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
9	Contrast	1000:1 (Typ.)
10	Luminance	1000 cd/㎡
11	Backlight	24 CHIP LED White，
12	Surface Treatment	Anti-Glare
14	Temperature Range	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C
15	Touch Screen	Without touch

Features:

☀️ Sunlight-Readable – 1000 cd/m² Ultra-High Brightness

Eliminates visibility issues in outdoor or bright environments, ensuring clear information display.
Ideal for outdoor digital signage, intelligent transportation terminals, and similar applications.

🌐 IPS Full-View Technology – 170° Ultra-Wide Viewing Angles

Accurate color reproduction with no distortion or color shift from multiple angles, supporting collaborative work and side viewing.

❄️🔥 Extreme Environmental Adaptability – -30°C to 85°C Wide Temperature Operation

Reliable performance in freezing cold or scorching heat, ensuring normal operation for outdoor equipment in northern winters or high-temperature scenarios like industrial ovens and vehicle dashboards.

🔌 Stable Signal Transmission – LVDS Interface

Built-in JD9165 driver IC with LVDS (Low-Voltage Differential Signaling) interface for strong anti-interference and stable long-distance transmission (≤15m), perfect for distributed control in large-scale machinery.

Applications:

Deisgned for industries demanding high performance and reliability, with features of 170° IPS ultra-wide viewing angles, 1000 cd/m² brightness, and -30°C to 85°C extreme temperature range, this 7.0 inch 1024×600 TFT LCD module provides stable solutions for:

Industrial Human-Machine Interfaces (HMI): Factory automation equipment, PLC control systems, CNC machine panels.

Outdoor Equipment: Outdoor POS terminals, EV charging stations, self-service kiosks.

Transportation: In-vehicle central displays, construction machinery dashboards, marine equipment display units.

Security & Surveillance: Outdoor camera displays, emergency command center screens.

Are You Facing These Challenges?

Struggling with limited brightness, narrow viewing angles, or restricted temperature ranges of standard displays?
In need of a highly reliable screen that operates stably in harsh conditions?

Hot Tags : 7 inch TFT LCD 1024*600 7 inch IPS LCD 1024*600 7 inch industrial LCD high-brightness 7.0“ TFT LVDS interface 7.0" TFT display 7" TFT Outdoor Display
