Square Display 1.30 inch 240*240 TFT LCD Display IPS TFT MCU/SPI interface

The Model# FT-01316-B-N-A, this is an small-size 1.30 inch TFT LCD module with the resolution of240(RGB)×240, aspect ratio of 1:1 (W:H)  featuring a square display. Its LCD Active Area (AA) size is 23.40x23.40mm (W×H), and module outline dimension is 26.17(H)x29.22(V)x1.90(T)mm.  With IPS Normally Black display technology, this 1.30 inch square display achieves wide viewing angles of 80/80/80/80 (Typ.) (CR≥10) and a high contrast ratio of 800:1. The surface brightness of this square 1.30 inch TFT LCD module reaches 350 cd/m². It is driven by the ST7789P3 IC, which supports dual interfaces (MCU 8BIT/4SPI), connecting a 24-PIN FPC at the bottom.

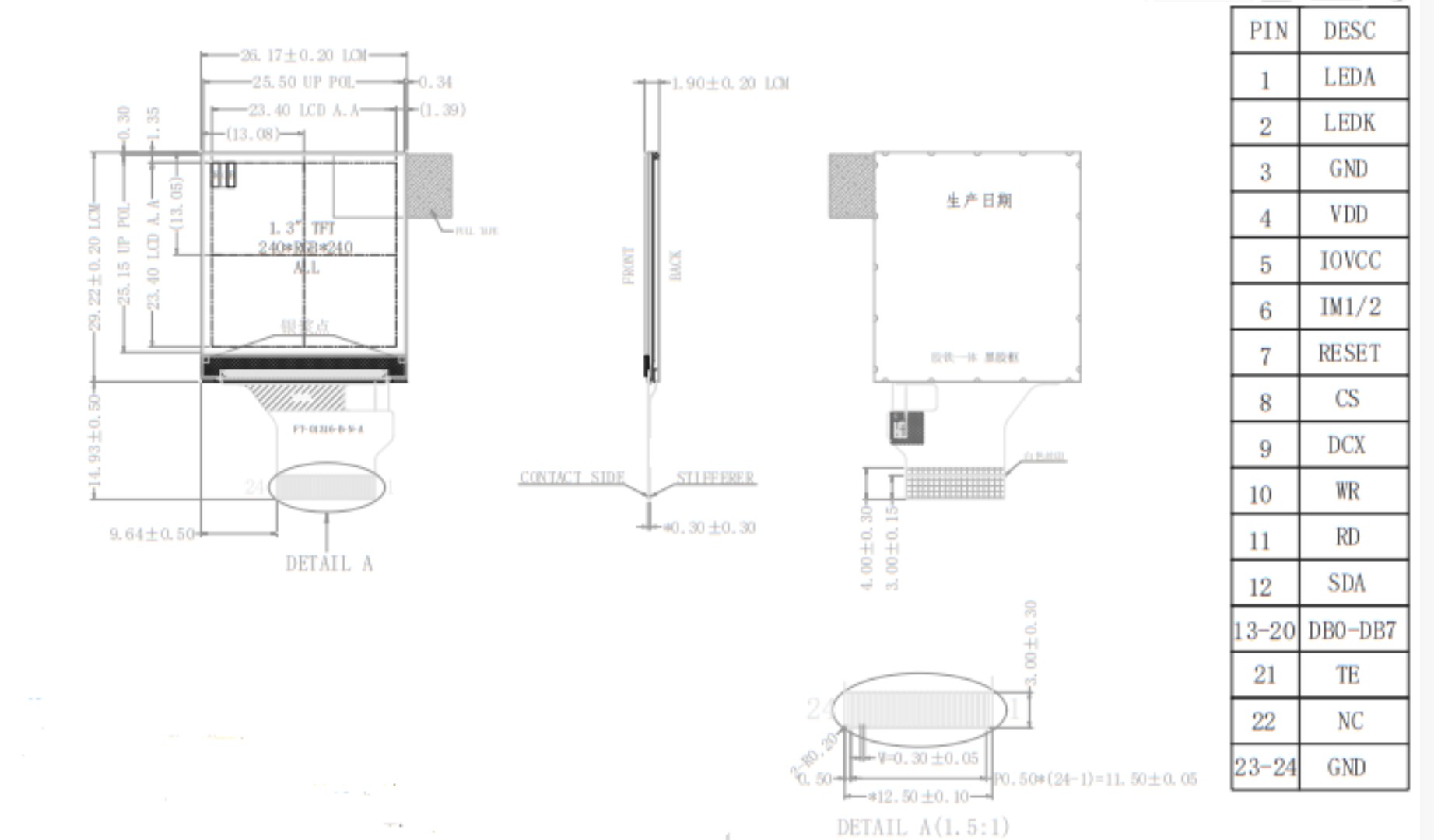

Product Drawing：

Product Specification:

Product Feature:

• High Resolution: The small-sized 1.30 inch TFT LCD module offers a high resolution of 240×240, ensuring a dense pixel density and sharp display quality.
• Square Display:  The 1:1 aspect ratio of this 1.30 inch square display's active area meets specific output requirements, creating a unique and distinctive appearance.
• Ultra-Thin Design:  With outline dimensions of 26.17(H)×29.22(V)×1.90(T) mm, its small size and ultra-thin design saves space and enhances integration flexibility.
• Wide Viewing Angle: Provides an 80/80/80/80 (Typ.) (CR≥10) wide viewing angle without color shift, ensuring consistent image quality from any perspective.
• High Brightness:  A surface brightness of 350 cd/m² ensures this 1.30 inch square display clear visibility even under strong outdoor lighting conditions.
• Dual Interface Support:  The 1.30 inch IPS TFT module supports both MCU 8BIT/4SPI interfaces, compatible with a variety of host controllers for easier development.
• Optional Touchscreen:  Customizable capacitive or resistive touchscreens are available upon request to enhance user interaction.

Applications:

Model #FT-01316-B-N-A,  this 1.30 inch square IPS TFT LCD module delivers a resolution of 240(RGB)×240. Its compact size, unique square form, wide viewing angles, and high-contrast display make it an excellent choice for applications requiring a distinct 1:1 aspect ratio visual output, such as embedded systems, industrial equipment, handheld devices, and wearable gadgets.

✔️ Embedded Systems: Ideal for smart homes, IoT devices, and other scenarios demanding high-definition displays.

✔️ Industrial Equipment: Suitable for industrial applications like dashboards and control panels that require high reliability.

✔️ Handheld Devices: Perfect for portable instruments, walkie-talkies, and other devices requiring compact display modules.

✔️ Wearable Devices: Tailored for smartwatches, health monitoring gadgets, and other wearable products that require low power consumption and high brightness.

Guangdong Shengfeng Technology Co., Ltd. Ltd. , is a professional manufacturer specializing in  design and production of touch displays ans supporting products, including monochrome LCD, color TFT LCD, CTP touch and glass Cover Lens. Shengfeng has an experienced R&D and design team capable of tailoring the most professional and reasonable display solutions based on each customer's project needs. If you have other customized display requirements, please feel free to contact us. With passion and professionalism, we are committed to serving you and creating a new future in display technology together.
