Size :
7.0"Part No. :
FT-07030-B-N-AResolution :
1024*600Viewing Angle :
6:00Interface :
LVDSTouch Screen :
/Driver IC :
TBDTemperature :
-20℃-70℃Brightness :
480 cd/㎡Module Outline(mm) :
164.86*99.96*3.40A.A Size(mm) :
154.21*85.92

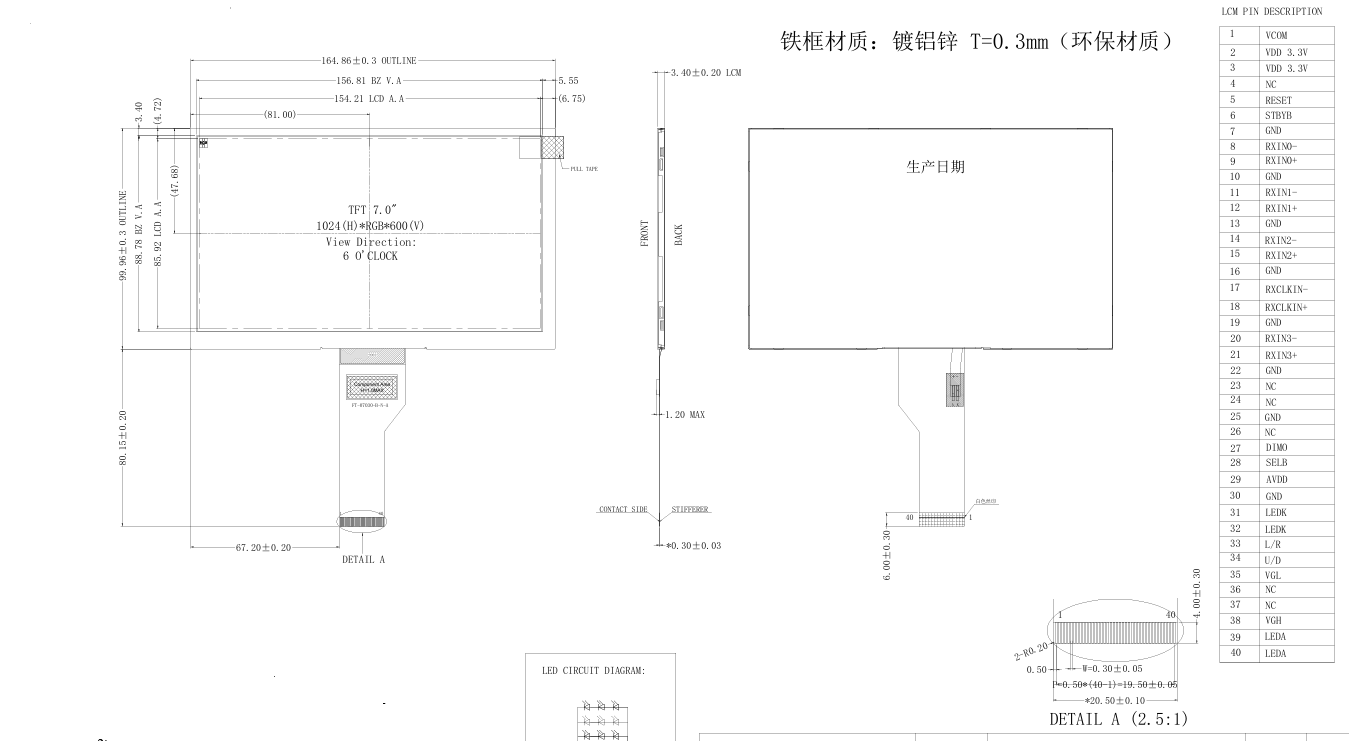

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-07030-B-N-A |
| 2 | LCD Size | 7 inch TFT LCD module |
| 3 | Resolution (Pixels) | 1024(RGB)×600, WSVGA |
| 4 | Display Mode | TN, Normally White, Transmissive |
| 5 | TFT A.A | 154.21×85.92mm |
| 6 | Module Dimension | 164.86×99.96×3.40mm |
| 7 | Viewing Direction | 6 o'clock |
| 8 | Viewing Angle | 80/80/60/70 (Typ.)(CR≥10) |
| 9 | Contrast | 800:1 (Typ.) |
| 10 | Luminance | 480 cd/㎡ |
| 11 | Backlight | 21 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Product Features:
7.0 inch TFT LCD Display 1024×600 WSVGA resolution delivers crisp text and graphics, meeting industrial HMI, automotive, and medical display demands.
16:9 widescreen format enhances multimedia playback and user interaction.
Galvanized aluminum-zinc bezels provide mechanical strength, anti-deformation properties, and EMI protection.
Vibration-resistant: Suitable for harsh environments (e.g., automotive, industrial machinery).
LVDS 1-ch, 6/8-bit ensures seamless integration with mainstream industrial motherboards (e.g., Rockchip, NXP, TI platforms).
30% faster data transfer than RGB interfaces.
Optimized power consumption and signal stability reduce thermal load, extending device lifespan.
Critical for industrial control, automotive dashboards, and outdoor equipment operating in extreme climates.
Flexible Customization Services
Based on the standard model#FT-011109, we could offer tailored solutions to meet the customer's specific requirements:
Application:
This 7.0 inch industrial-grade TFT-LCD display with 1024×600 resolution, LVDS interface, and -20°C~+70°C wide-temp operation is ideal for:
🔧 Industrial Control Equipment：Automation Instruments， HMI (Human-Machine Interface)
🚗 Automotive Display Systems： In-Car Navigation， Rear-Seat Entertainmen
🏥 Medical Devices： Patient Monitors， Medical Operation Terminals
🛒 Commercial Terminals： Smart POS Systems，Self-Service Kiosks
