NEW PRODUCT! The model#FT-06203-B-L-A, is a 6.2 inch TFT LCD module with customized 6.2 inch glass cover.
Size :
6.2"Part No. :
FT-06203-B-L-AResolution :
1024*600Viewing Angle :
FreeInterface :
LVDSTouch Screen :
CGDriver IC :
TBDTemperature :
-30℃-80℃Brightness :
1000 cd/㎡Module Outline(mm) :
144.27*88.10*4.93A.A Size(mm) :
137.47*77.23This 6.2 inch TFT LCD Display has a resolution of 1024*600, with a 16:9 aspect ratio in landscape mode. the LCD display AA size is 137.47 x 77.23 mm while the display module outline dimensions are 144.27 x 88.10 x 4.93mm. The key features of this 6.2 inch TFT display include IPS technology, high brightness of 1000cd/m², and extremelt-wide operating temperature of -30℃ to +80℃. The module is built with driver IC JD9168S, supporting LVDS interface connected by a 40PIN FPC.
In addition, this 6.2 inch IPS TFT LCD Module is integrated with a customized 1.8mm-thick cover glass, outline dimension is153.5 x101.5mm. The surface hardness is ≥6H, and it is treated with anti-UV ink.

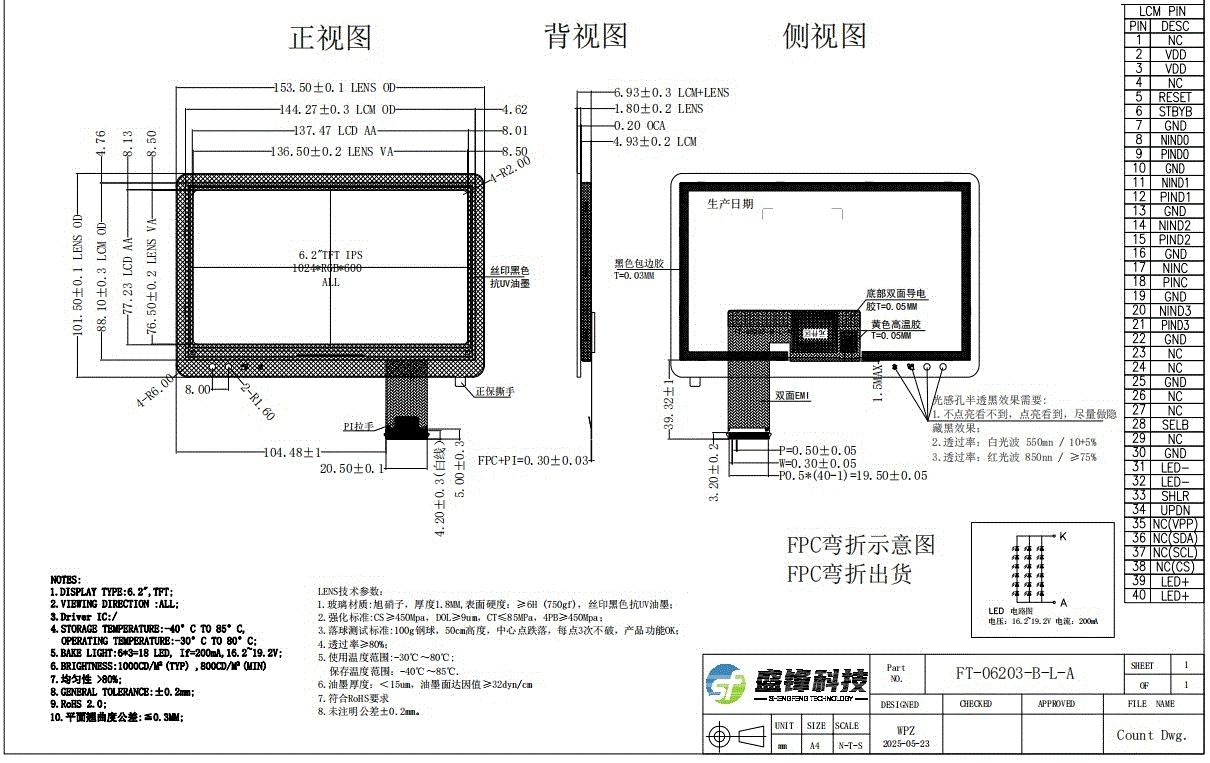

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-06203-B-L-A |
| 2 | LCD Size | 6.2 inch IPS TFT LCD/6.2 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 1024(RGB)×600, |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 137.47 x 77.23 mm |
| 6 | TFT Module Dimension | 120.1 × 75.2 × 2.85 mm |
| 7 | LENS Outline Dimension | 153.5 x101.5 x 1.8mm |
| 8 | Viewing Direction | ALL |
| 9 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| 10 | Contrast | 1000:1 (Typ.) |
| 11 | Luminance | 1000 cd/㎡ |
| 12 | Backlight | 18 CHIP LED White， |
| 13 | Surface Treatment | Anti-Glare |
| 14 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 15 | Touch Screen | Without touch, With Cover Glass |
Features:
✅ Full-View HD Display
The 6.2 inch TFT LCD with 1024×600 resolution (16:9 landscape mode), it perfectly matches mainstream visual content.
The IPS technology enables an 80/80/80/80 full-view angle without color distortion, eliminating viewing blind spots.
✅ Industrial-Grade Wide Temperature Operation
The module adapts ultra-wide operating temperature range of -30℃ to +80℃, demonstrating excellent environmental adaptability.
It can also operate stably in harsh environments (such as automotive, industrial control, and outdoor equipment).
✅ 1000cd/m² High Brightness
It remains clearly visible in strong light environments (with no color fading in sunlight).
It adapts to both indoor and outdoor scenarios, eliminating environmental light interference.
✅ Driver IC & Interface
This 6.2 inch TFT LCD Module is equipped with the JD9168S driver IC, which offers stable and reliable performance, ensuring smooth and stable image processing.
It supports the LVDS interface, which provides fast transmission speeds and strong anti-interference capabilities, meeting the demands of high-speed data transmission.
✅ Military-Grade Protection Design: Customized Cover Glass
The 1.8mm tempered cover glass has a surface hardness of ≥6H (750gf), offering scratch and wear resistance to extend the product's lifestime.
The anti-UV ink coating resists UV aging and yellowing, keeping the screen looking new for a long time.
Applications:
The model# FT-06203, with its 1024*600 resolution, IPS full-view angle, 1000cd/m² high brightness, wide temperature range from -30℃ to +80℃, and military-grade customized cover glass, is well-suited for outdoor equipment such as automotive displays and outdoor POS machines, as well as industrial control equipment.
Automotive Display Systems
→ Instrument panels for construction machinery / central control units for special vehicles (shock-resistant and temperature-tolerant)
Outdoor Smart Terminals
→ POS machines / charging stations / information kiosks (high brightness and UV-resistant)
Industrial Control Equipment
→ HMI (Human-Machine Interface) / PLC (Programmable Logic Controller) consoles (wide temperature range and dust-resistant)
Medical Instruments
→ Display units for sterilization equipment (chemical-resistant and corrosion-resistant)
