2.41 inch IPS TFT LCD 240*320 High Brightness1200cd/m2 MCU Interface Automotive Display-30~80C Custom Cover Glass

Our new product 2.4 inch IPS TFT Display Module #FT-024144-B-L-A, features a resolution of 240(RGB)×320 (QVGA) with a 3:4 (W:H) aspect ratio in portrait mode. Its active display area size is 36.72×48.96 mm (W×H), and display module outline dimension is 40.44×57.00×2.25 mm (W×H×D). Backlit by a 1S6P WLED array, it achieves an ultra-high brightness of 1200 cd/m², ensuring exceptional sunlight readability. Built with ST7789P3 driver IC, this module supports an MCU 8-bit interface and operates reliably across a wide temperature range of -30°C to 80°C, meeting strict industrial and automotive requirements.

And this 2.41 inch TFT display module is integrated with a custom-designed Cover Glass,  optical bonding between CG and LCD display is for enhanced durability and all-in-black performance.

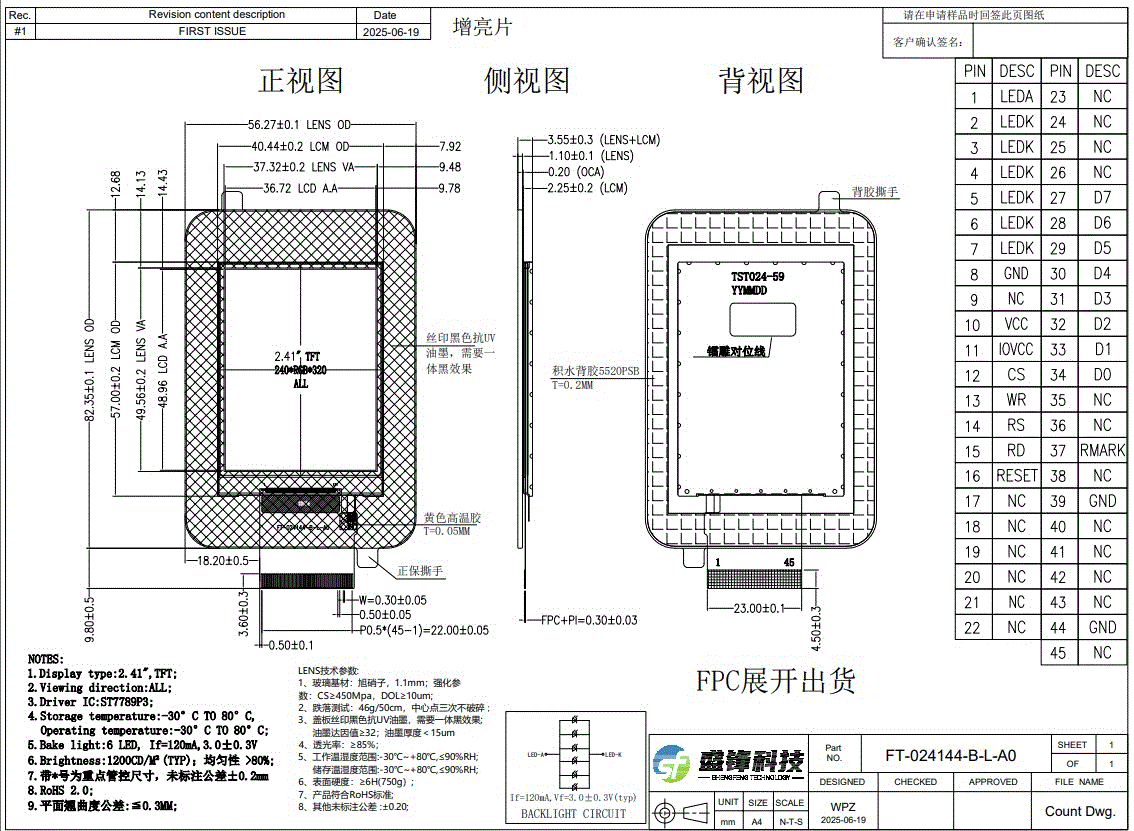

Product Drawing：

Product Specification:

Product Feature:

2.41 Inch TFT LCD Display Module:

• QVGA Resolution:   Delivers crisp, detailed visuals with 240(RGB) × 320 pixels on a 2.41-inch display screen.
• Portrait Mode:  3:4(W:H) aspect ratio is optimized for vertical information display in applications such as dashboards, handheld devices, and industrial HMI systems.
• Sunlight Readability:  1200-nit high brightness eliminates outdoor visibility challenges.
• Wide Viewing Angles:  IPS technology ensures consistent, distortion-free visuals up to 160° from all directions.
• Automotive-Grade Reliability:  Withstands extreme temperatures from -30°C to 80°C, ensuring stable performance in automotive and industrial environments.
• Robust Driver IC:  The ST7789P3 supports an 8-bit MCU interface, offering stable, efficient data transmission and broad compatibility.

Custom Cover Glass:

• Tailored Design:   Fully customizable in shape, cutouts, and logo/icon silk-screening to enhance brand identity and aesthetics.
• Physical Protection:   1.1mm-thick Cover glass with a surface hardness of ≥6H resists daily scratches and ensures long-term durability.
• UV Resistance:  A black anti-UV ink layer prevents ultraviolet degradation of frame materials while maintaining a sleek, all-black integrated appearance.
• Optical Bonding:   0.2mm OCA (Optically Clear Adhesive) bonding reduces reflections, boosts contrast, and improves sunlight legibility while enhancing the all-black aesthetic.

Applications:

Model #FT-024144， the 2.4 inch TFT LCD display module integrates IPS technology for superior visual performance, automotive-grade reliability (-30°C to 80°C), high brightness (1200 cd/m²), and customizable cover glass, making it the ideal solution for applications demanding clarity and durability in harsh conditions. Perfect for:

✅Automotive Electronics: Instrument clusters, rearview mirror DVRs, HUD (Head-Up Display) systems

✅Industrial Control: Handheld terminals, PLC operator panels, smart energy meters

✅Outdoor Equipment: Wearable devices, POS terminals, logistics barcode scanners

✅Embedded Display Applications: Any system requiring high brightness, wide viewing angles, and thermal stability.
