4.96 inch 480*854 TFT LCD Display with MIPI/RGB Interface IPS TFT Incell Touch Display

The model#FT-05038-B-C-A, is a high-performance 4.96 inch TFT Touch Display module with in-cell Touch.

The 4.96 inch TFT LCD Display has a resolution of 480(RGB) * 854, FWVGA, with an aspect ratio of 9:16, portrait mode. The LCD display AA size is 61.78×109.91mm and LCD module outline is 64.24 × 117.60 x 2.14mm. This 4.96 inch TFT Touch Display is featured with in-cell CTP function. Its driver IC is ST7102-G5, supporting the dual interfaces MIPI/RGB 8bit for LCD module, as well as an I2C interface for CTP Touch screen, connected with an integrated 54PIN FPC.

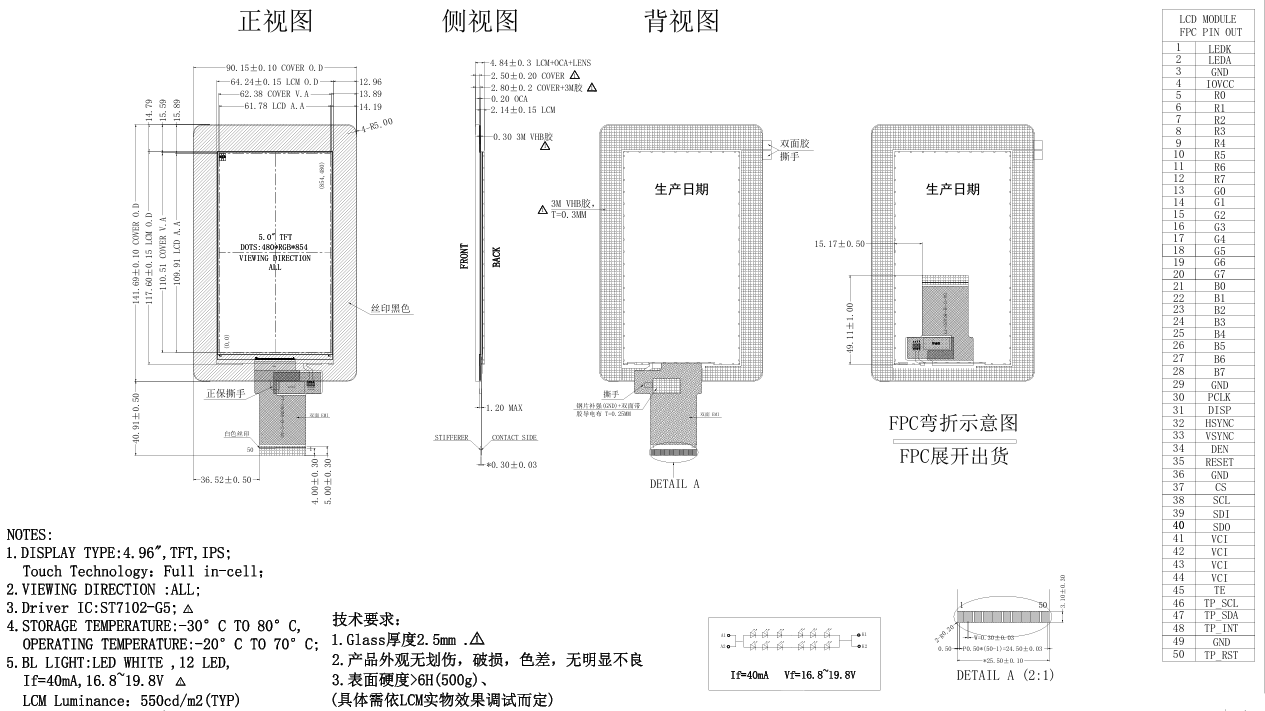

Product Drawing：

Product Specification:

Product Feature:

Integrated Touch and Display, Single-Handed Control

• The 4.96 inch touch display module has a screen size close to 5.0 inches, making it suitable for single-handed operation while still providing sufficient display space.

High Resolution and Portrait Mode

• With a resolution of 480*854 and an aspect ratio of H:V 9:16, it is well-suited for portrait mode in various vertical usage scenarios.

Vivid Colors and Ultra-Wide Viewing Angles

• IPS technology offers an ultra-wide viewing angle range and vivid color reproduction. Clear, vibrant, and true-to-life images can be viewed from any angle, providing users with an immersive visual experience.

Slim Design and Rich Interfaces

• This in-cell 4.96 inch Touch Display is of thickness only 2.14 mm, facilitating the realization of a slim and lightweight product design.
• The LCD supports dual interfaces of RGB/MIPI, enhancing the product's compatibility and applicability.

Multi-Touch, Convenient Interaction

• The CTP touchscreen supports multi-touch operations, offering users a more intuitive and convenient interactive experience, thereby improving the product's usability and fun factor.

Customizable Cover Glass, Showcasing Individuality

•  A 2.5mm tempered glass with a surface hardness ≥6H (500g),  provides high wear resistance, effectively protecting the display screen from scratches and damage, and extending the product's lifespan.
•  The use of high-quality Seiko ink ensures excellent display performance even in outdoor applications, with vibrant and long-lasting colors that are not affected by light and environmental conditions.
• OCA optical bonding guarantees a high-end integrated black effect for the product while enhancing the reliability of the assembly module.
• This Customized Cover Glass allows customers to create a unique product appearance according to their own needs, meeting the personalized requirements of different customers and enhancing the product's market competitiveness.

Applications:

The model #FT-05038, a 4.96 inch Touch Display module, with its unique in-cell structure, outstanding display performance, and personalized customization options, provides electronic device manufacturers with high-quality display solutions. It is recommended for applications in handheld devices, smart wearables, and small industrial control equipment, among others.
