Size :
3.37"Part No. :
FT-03406-B-N-AResolution :
540*960Viewing Angle :
FreeInterface :
MIPITouch Screen :
/Driver IC :
JD9365TXTemperature :
-20℃-70℃Brightness :
500 cd/㎡Module Outline(mm) :
44.16*79.84*2.04A.A Size(mm) :

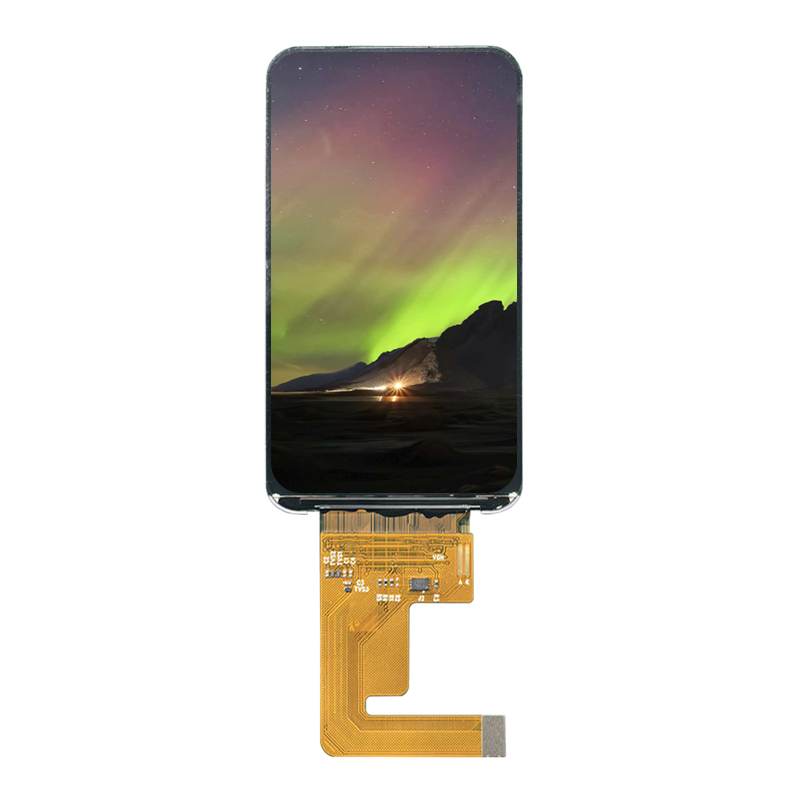

41.96*75.49The model#FT-03406, is a 3.37 inch TFT LCD Display features a resolution of 540(RGB)×960 aspect ratio of 9:16 (W:H) in Portrait mode，perfectly suited for vertical scenarios such as handheld devices, industrial control panels, and medical terminals. Its LCD Active Area (AA) size is 41.96 × 74.59 mm(W×H), and module outline dimension is 44.16 × 79.84 × 2.04mm (L×W×H). IPS technology enables this 3.37 inch LCD module to achieve a 178° full viewing angle, complemented by the ultra-narrow bezel design and 2.04mm ultra-thin module thickness, delivering breakthrough visual experiences in limited spaces. The module is equipped with a JD9365TX driver IC, supporting a 24PIN MIPI interface.

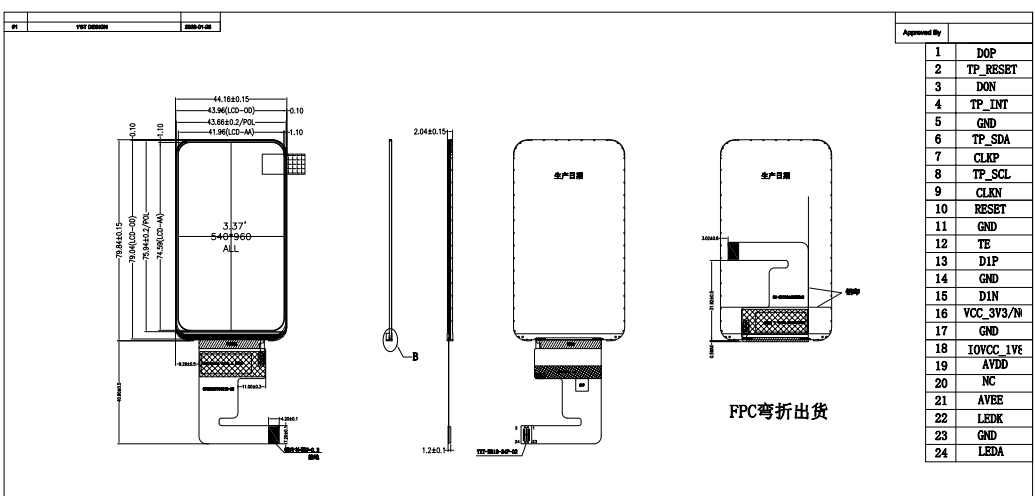

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | FT-03406-B-N-A |
| 2 | LCD Size | 3.37 inch TFT LCD Display |
| 3 | Resolution (Pixels) | 540(RGB)×960 |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 41.96 × 74.59 mm |
| 6 | Module Dimension | 44.16 × 79.84 × 2.04 mm |
| 7 | Viewing Direction | ALL |
| 8 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 9 | Contrast | 1200:1 (Typ.) |
| 10 | Luminance | 500 cd/㎡ |
| 11 | Backlight | 10 CHIP LED White， |
| 12 | Surface Treatment | Anti-Glare |
| 13 | Temperature Range | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 14 | Touch Screen | Without touch screen |
Features:
Applications:
This high-performance 3.4 inch 540×960 IPS TFT LCD display, with a 9:16 aspect ratio, combines outstanding visual effects with a compact structural design. It is perfectly suited for a wide range of electronic products requiring high-quality small-size portrait screens, like smart handheld devices, portable medical instruments, industrial control panels, automotive displays, smart home displays, wearable terminals, and etc.
