Size :
4.3"Part No. :
FT-04388-B-C-A0Resolution :
480*272Viewing Angle :
FreeInterface :
RGBTouch Screen :
CTPDriver IC :
ST7282P/SC5034Temperature :
-30℃-85℃Brightness :
500 cd/㎡Module Outline(mm) :
105.46*67.11*5.05A.A Size(mm) :
95.04*53.86Model#FT-004388-B-C-A0， is a 4.3 inch touch display module with extremely-wide operating temperature range from -30℃ to 85℃, designed for harsh industrial environments.
This 4.3 inch TFT LCD display features 480×272 WQVGA resolution, 16:9 aspect ratio. Active area: 95.04×53.86 mm, and outline dimension: 105.46×67.11×3.00 mm. Equipped with ST7282P/SC5034 driver IC, Parallel RGB interface and 40Pin FPC connector. Integrated 4.3 inch capacitive touch screen of G+G structure. With 500cd/m² brightness and full viewing angle, the 4.3 inch touch display module delivers excellent display performance, smooth touch and strong environmental resistance. Ideal for industrial HMI, vehicle dashboard, medical devices and other compact embedded terminals requiring high reliability.

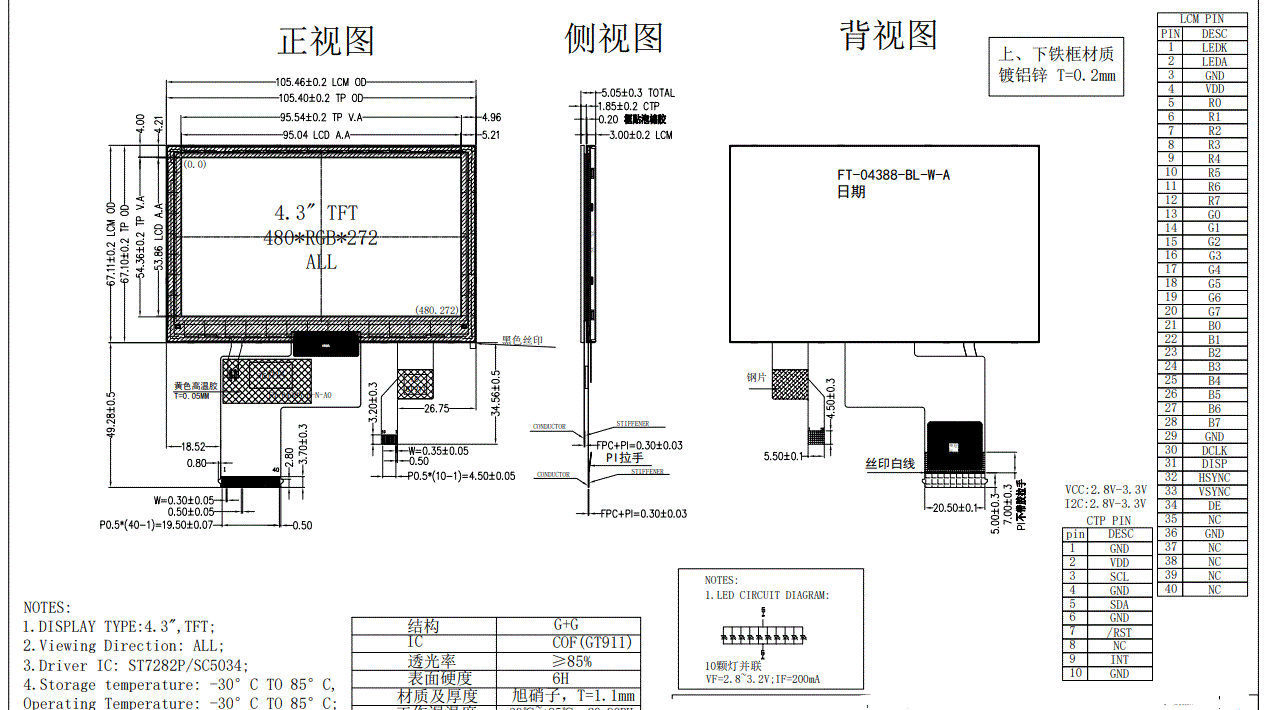

Product Drawing:
Product Specification:
| No. | Item | SPECIFICATION |
| 1 | Part No. | TF-04388-B-C-A0 |
| 2 | LCD Size | 4.3 inch Touch Display Module |
| 3 | Resolution (Pixels) | 480(RGB)×272, QVGA |
| 4 | Display Mode | IPS, Normally Black, Transmissive |
| 5 | Active Area | 95.04×53.86mm |
| 6 | Display Dimension(w/o CTP) | 105.46×67.11 x3.00mm |
| 7 | Module Dimension | 105.46×67.11×5.05mm |
| 8 | Viewing Direction | ALL |
| 9 | Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| 10 | Contrast | 1000:1 (Typ.) |
| 11 | Luminance | 500 cd/㎡ |
| 12 | Backlight | 10 CHIP LED White， |
| 13 | Surface Treatment | Anti-Glare |
| 14 | Temperature Range | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85°C |
| 15 | Touch Screen | With CTP touch |
Features:
✅ Standard WQVGA Resolution:
4.3" TFT LCD, 480(RGB)×272. Widely adopted specification, compatible with various mainstream UI designs.
✅ High Brightness & Full Viewing Angle:
500cd/m² brightness ensures good visibility inside equipment or semi-outdoor environments. IPS full viewing angle keeps color consistent from all perspectives.
✅ Universal Interface:
Equipped with dedicated driver IC, the 4.3 inch TFT display module supports Parallel RGB interface. Compatible with most embedded host controllers for easy integration.
✅ Industrial Ultra-wide Temperature:
Operating range from -30℃ to 85℃. Stable display and touch performance under high/low temperature harsh conditions.
✅ G+G Capacitive Touch:
1.1mm thick cover glass with hardness＞6H, scratch-resistant. GT911 touch IC delivers sensitive and reliable touch response.
✅ Bonding Process:
The touch panel and LCD are bonded by double-side tape, featuring reliable structure and high cost performance.
Applications:
Model#FT-04388 is a 4.3 inch touch display module specifically designed for industrial and automotive applications. With its excellent display performance and rugged structure, it is an ideal choice for various harsh environments, including but not limited to:
- Industrial HMI
- Vehicle dashboard & automotive control unit
- Medical equipment & portable medical instruments
- Embedded control and smart devices
About Shengfeng:
We Shengfeng are a professional manufacturer of LCD/TFT display modules, focusing on R&D, production and customization of industrial-grade display solution with complete production lines and quality control systems.
We support sample customization, small trial orders and mass production. Customization options include interface modification, backlight brightness adjustment, touch firmware adaptation and mechanical structure fine-tuning. We provide complete datasheets, wiring diagrams and development references, with full technical support to accelerate your project launch.
Direct factory supply without middlemen, competitive pricing, short lead time and reliable after-sales service.
If you are interested in this 4.3 inch Touch Display Modules, please feel free to contact us. We are dedicated to serving you and look forward to mutually beneficial cooperation!
