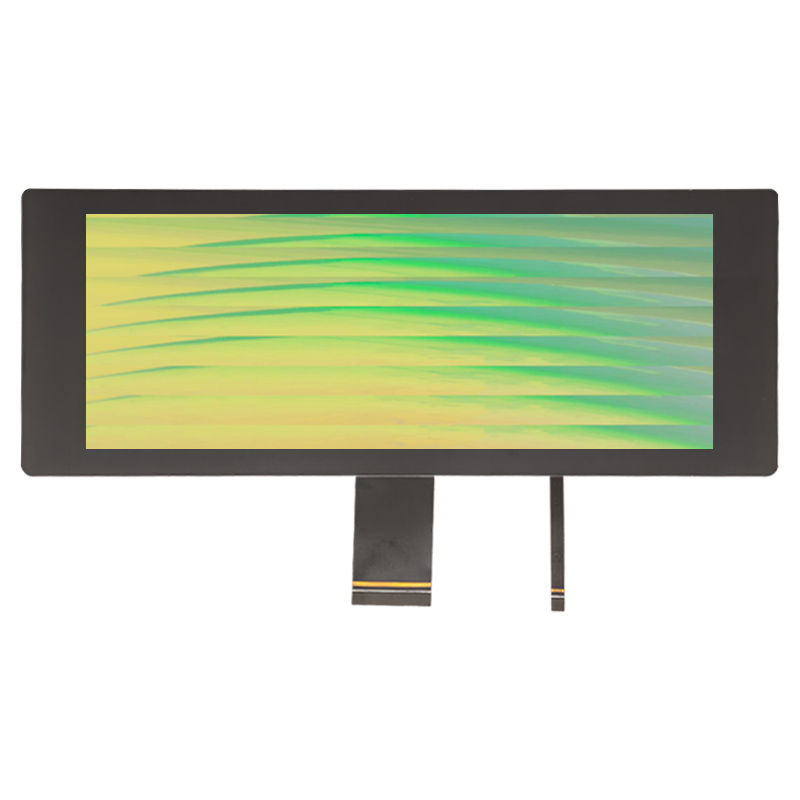

Bar type 6.8 inch TFT LCD 480*1280 RGB interface DIsplay for Ventilator Device

IPS Full Viewing Angle Medical Display Performance:

• This 6.8 inch ventilator display ensures medical staff can clearly observe real-time patient respiratory data at any viewing angle with no color deviation and picture distortion.

3:8 Bar-type Aspect Ratio Design:

• Featured with a exclusive3:8 (W:H) , 480(RGB)×1280 high resolution, this 6.8 inch LCD display perfectly fits the narrow embedded reserved space of ventilator equipment.

Stable Industrial Driving & Reliable Interface :

• The 6.8" TFT display module adopts NV3052 drive IC, supporting standard RGB interface, which make it easy development and integration for medical equipment manufacturers.

G+G Capacitive Touch Screen with AG Etching Treatment:

• The customized 6.8 inch CTP touch screen is of G+G structure, the 1.5mm thick cover glass adopts etching AG surface treatment, which effectively reduces light reflection, avoids glare interference, and maintains clear screen visibility in long-term medical use.

Premium GT9271 Touch Driver IC:

•  With high-performance GT9271 touch driver IC, the 6.8 inch touch panel supports multi-point precise touch, fast response, no delay and no drift. Its anti-interference touch performance adapts to complex medical electromagnetic environment, ensuring stable and smooth human-computer operation of ventilator equipments.

Applications:

This bar-type 6.8 inch medical touch display module is optimized for respiratory medical equipment and is widely used in medical ventilators, non-invasive ventilators, home respiratory therapy devices, patient monitoring equipment and other devices.  Its bar-type shape, high-precision display and stable touch performance meet the strict stability requirements of medical equipment and help medical respiratory equipment manufacturers upgrade their products.

About US:

Shengfeng Technology(SF-tech) are an LCD module manufacturer with experience in customizing medical display solutions. We could offer OEM/ODM customized display solution, available: brightness adjustment, interface modification, appearance and touch solution optimization, providing one-stop display solutions for global medical equipment manufacturers.
